This option is used to view the information of a selected model in the project.

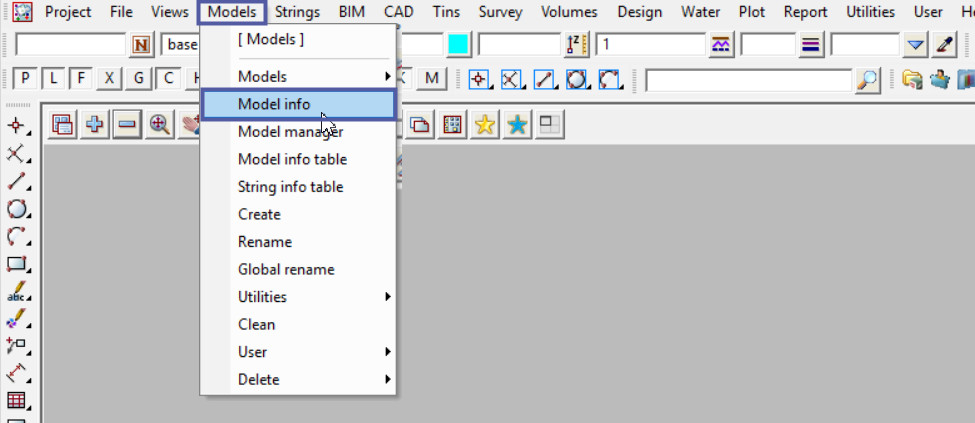

Continue down the page to see the Model Information Panel options.[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_separator border_width=”5″][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]To view the Model Info Panel, Use: Models => Model Info

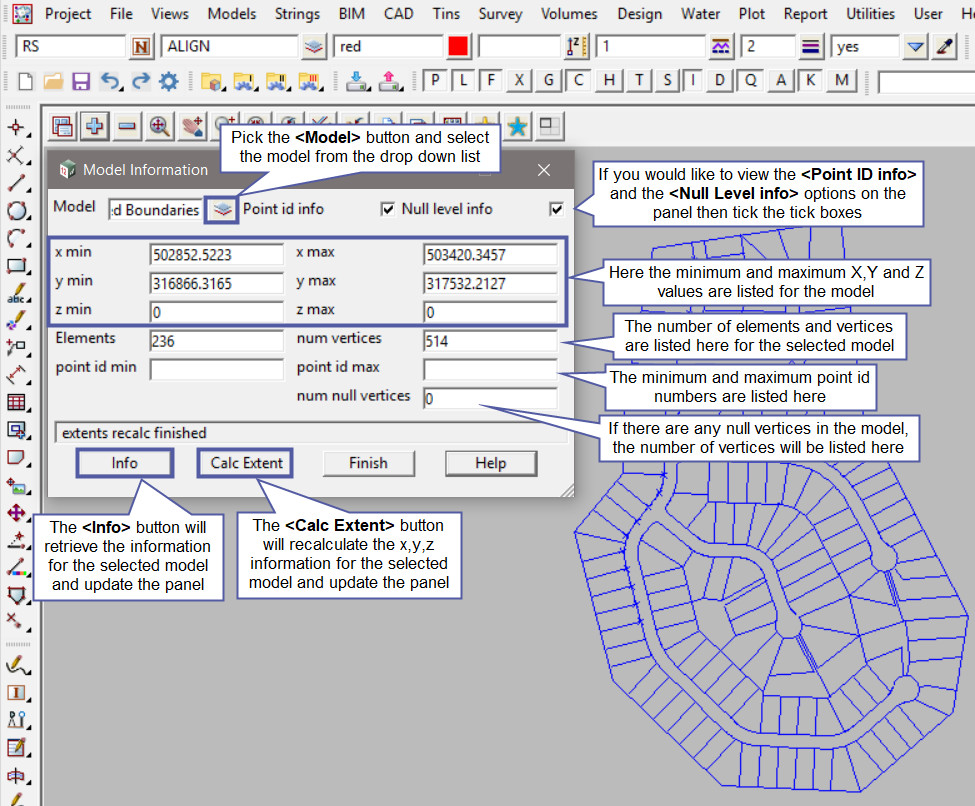

[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_single_image image=”4774″ img_size=”full”][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]The Model Information panel will display the following information for a selected model in the project:
- Minimum and Maximum X values
- Minimum and Maximum Y values
- Minimum and Maximum Z values
- Number of Elements
- Number of Vertices (or Points)
- Minimum and Maximum Point ID numbers
- Number of Null Vertices (or points without z-values)
The <Info> button will retrieve the information for the selected model and update the panel.
The <Calc Extent> button will recalculate the x,y,z information for the selected model and update the panel.[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_single_image image=”4775″ img_size=”full”][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]If more information is required and would like to view all the models in the project, have a look at the Model Information Table, visit the post: Model Information Table[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_separator border_width=”5″][/vc_column][/vc_row]
