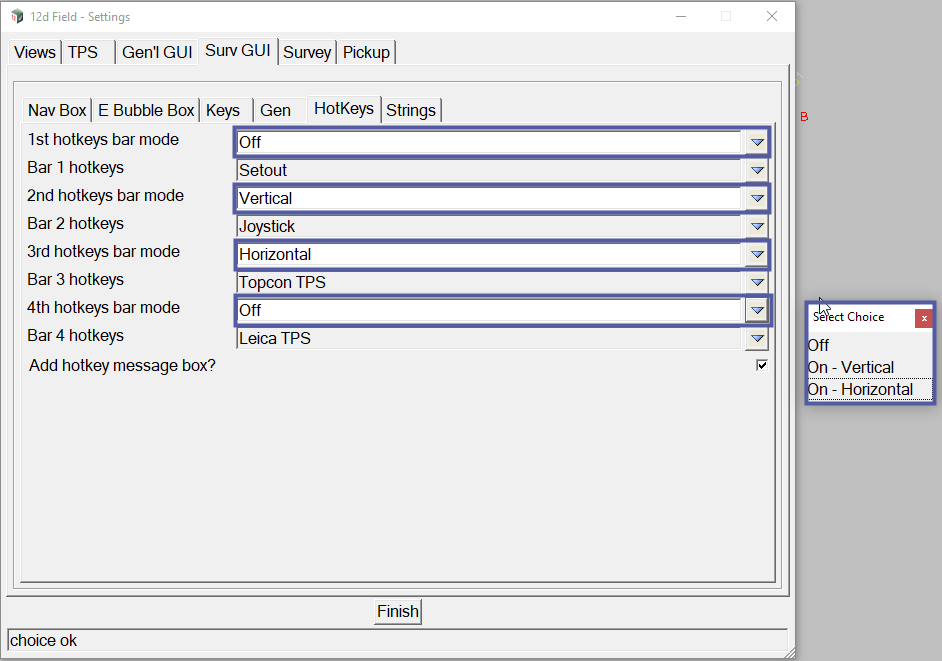

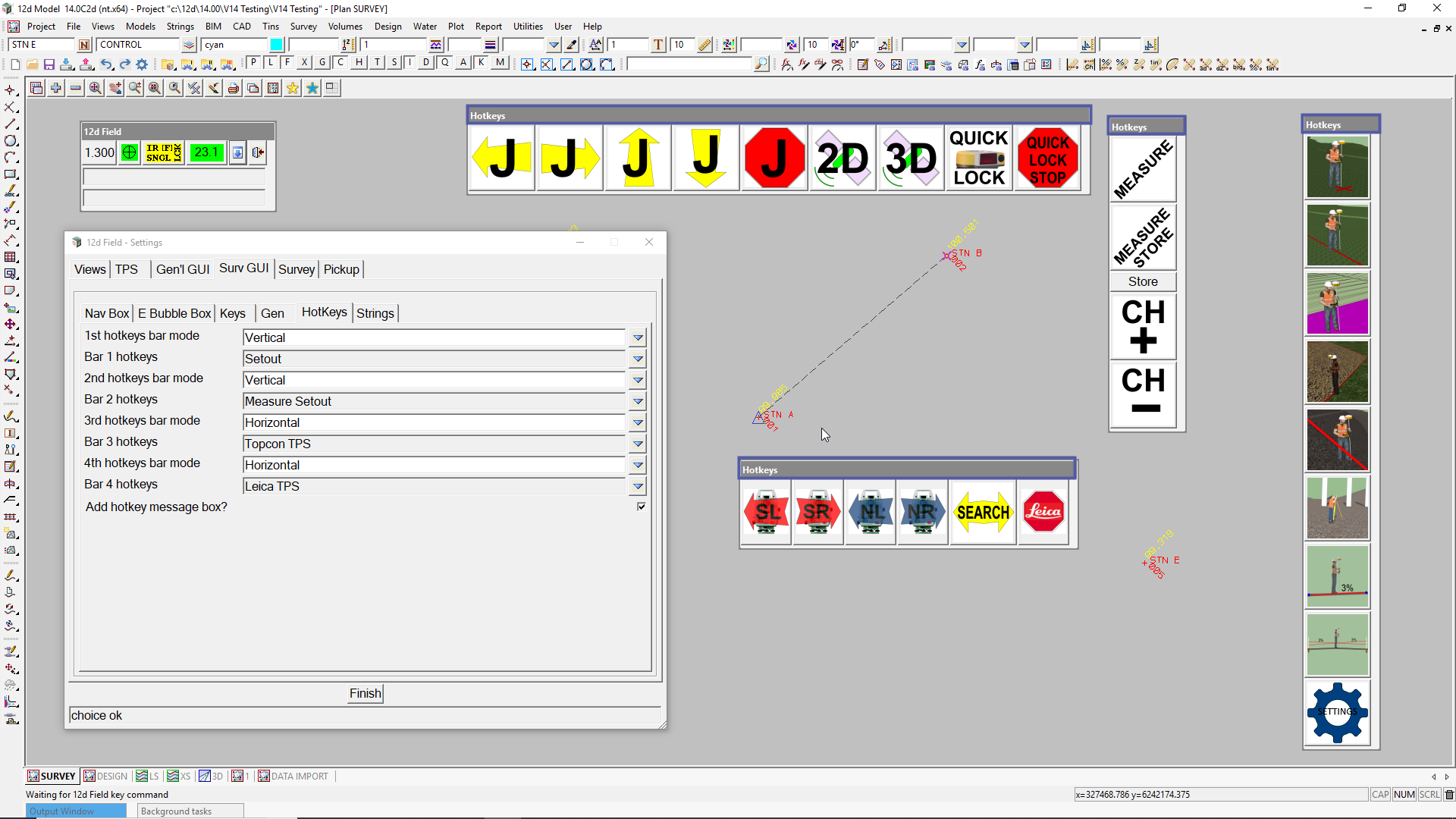

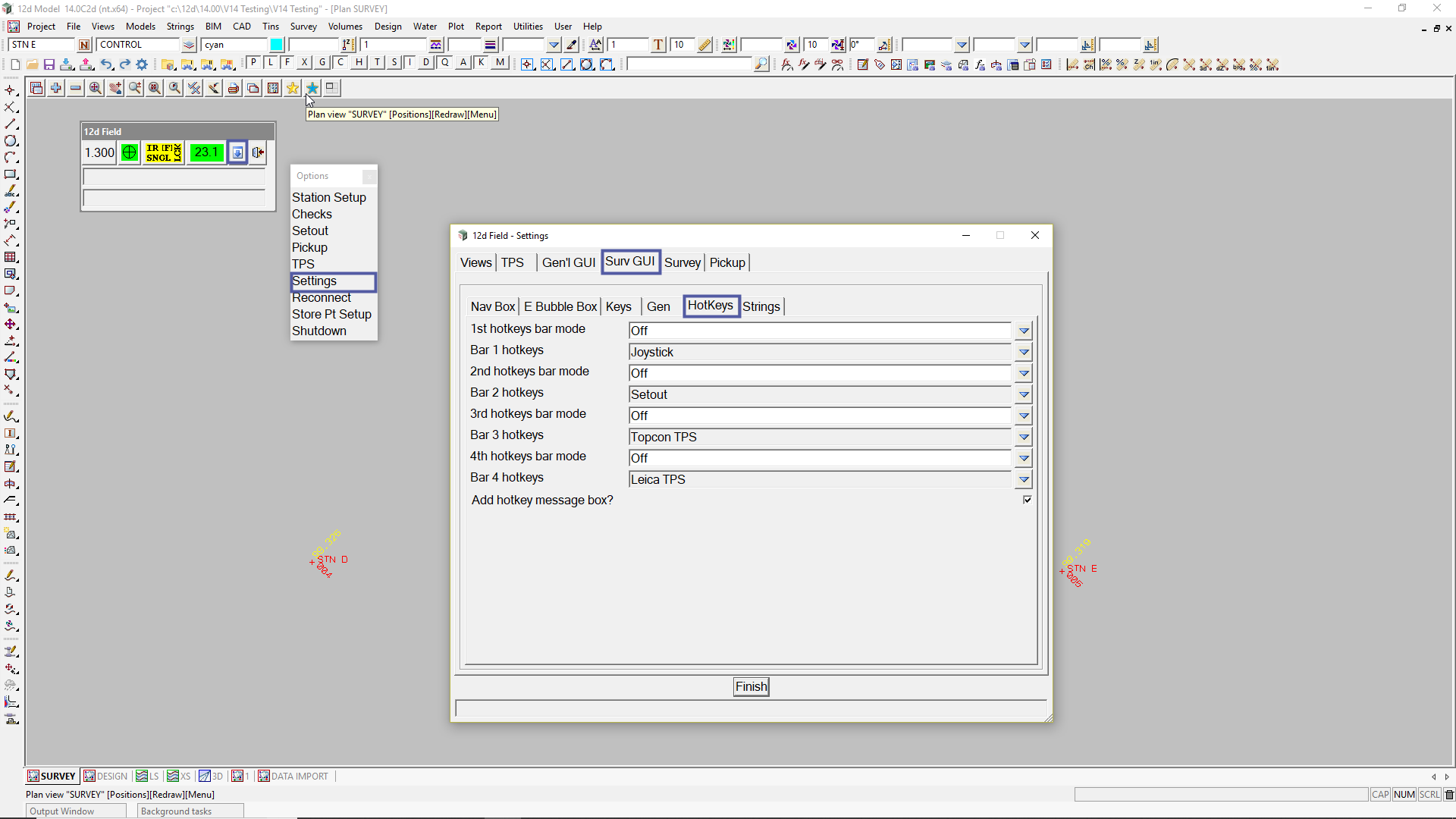

Hotkeys are image based button panels, in 12d Field, that are primarily used to control a connected instrument via the tablet. They allow the operator to control/command the connected instrument with ease through the touch of a finger or stylus.[/vc_column_text][vc_single_image image=”5397″ img_size=”full”][vc_column_text]To activate the hotkey(s) in 12d Field: Show Options => Settings => Surv GUI => HotKeys[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_single_image image=”5382″ img_size=”full”][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]You have up to four HotKey bars available for display at the same time. They can be displayed as either vertical bars (On – Vertical), horizontal bars (On – Horizontal) or they can be turned off.

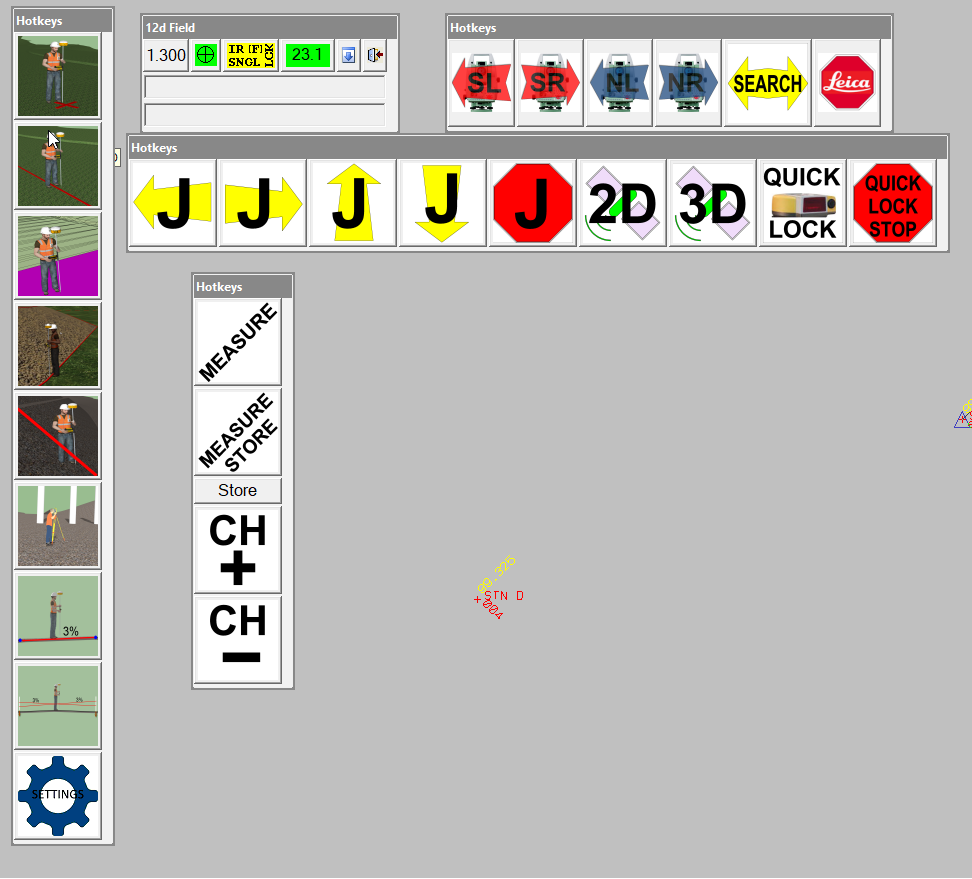

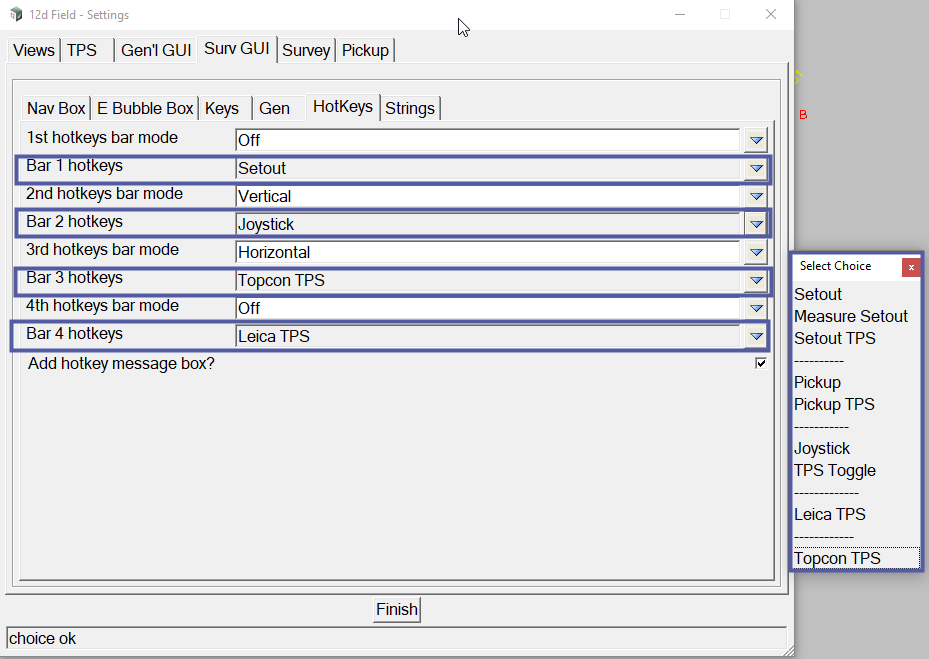

[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_single_image image=”5384″ img_size=”full”][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]There are several types of HotKey bars that come default with 12d Field. Such as setout, measure setout, pickup, joystick etc. To choose the one you want, simply left-click on the drop down menu for Bar 1 hotkeys, Bar 2 hotkeys, Bar 3 hotkeys or Bar 4 hotkeys.[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_single_image image=”5386″ img_size=”full”][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]HotKey panels can be moved anywhere on the screen by clicking and dragging. Just like all panels in 12 Model and 12 Field.[/vc_column_text][vc_single_image image=”5387″ img_size=”full”][/vc_column][vc_column][vc_column_text]If you wish to change the sizing of the HotKey panel(s),
Visit this Post: Hotkeys-panel sizing[/vc_column_text][/vc_column][vc_column][vc_separator border_width=”5″][/vc_column][/vc_row]
