The Attribute Manipulator can be used to copy, move, edit, and delete Attributes from the Project level right down to Vertex. Attribute Manipulator Rules are then saved to a file so that they are easily repeatable.

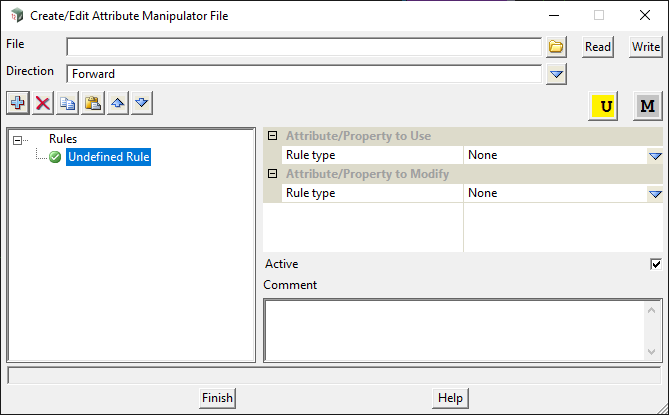

The Attribute Manipulator also has the ability to change Properties, such as Name, Colour, Linestyle, etc.[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_separator border_width=”5″][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]Utilities => Attributes => Create/Edit Attribute Manipulator File[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]Click the + button to add a Rule. Every Rule has two parts;
- Attribute/Property to Use
- Attribute/Property to Modify
[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_single_image image=”9363″ img_size=”full” alignment=”center”][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]For more information on the U & M buttons, see here: 12dwiki.epicsites.com.au/attribute-manipulator-u-and-m-buttons[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]

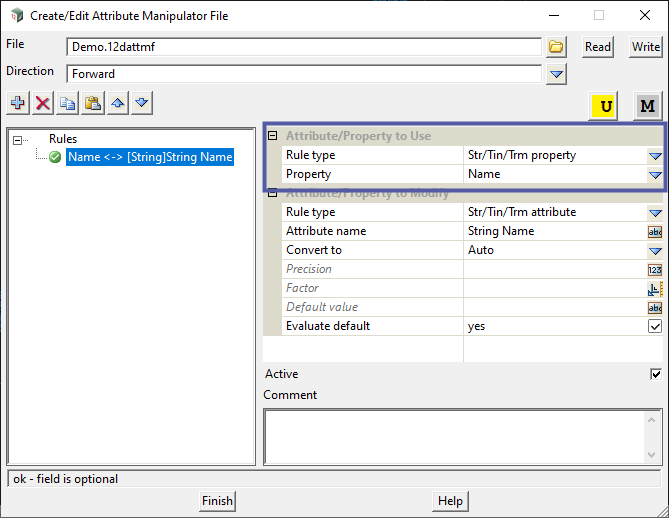

Attribute/Property to Use
This is the Attribute or Property you want to copy/edit.
In the example, we take the String Property: Name[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_single_image image=”9364″ img_size=”full”][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]

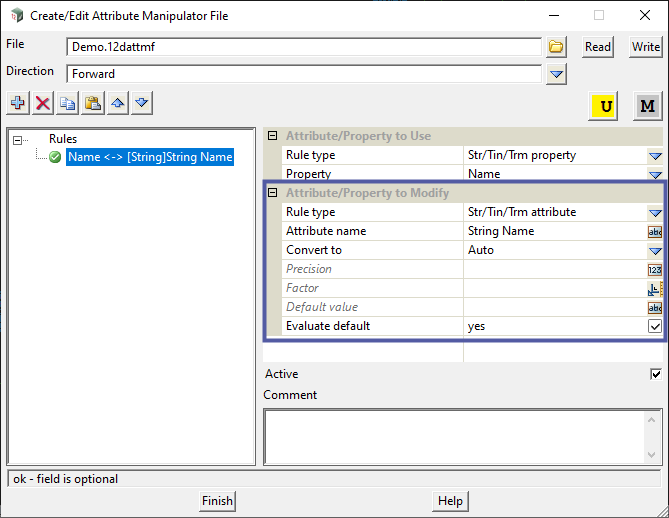

Attribute/Property to Modify
This is the resulting Attribute or Property.
In the example, we then copy the string name to a String Attribute called: String Name[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_single_image image=”9365″ img_size=”full”][/vc_column][/vc_row][vc_row][vc_column][vc_separator border_width=”5″][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]Utilities => Attributes => Apply attribute manipulator file
Once you’ve created the Attribute Manipulator File, it can now be applied to your data.[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_single_image image=”10638″ img_size=”full”][/vc_column][/vc_row][vc_row][vc_column][vc_separator border_width=”5″][/vc_column][/vc_row]
