This option is used to colour segments based on the Xfall slope by either “Percent”, “1v in” or “Degrees”.
Don’t be fooled by the name of the panel. Whilst it was written for Designers to colour “Cross Section” strings. This option can be used on any Super String with vertical heights at each vertex. The colour applied to each of the super string segments is determined by the Range file specified.

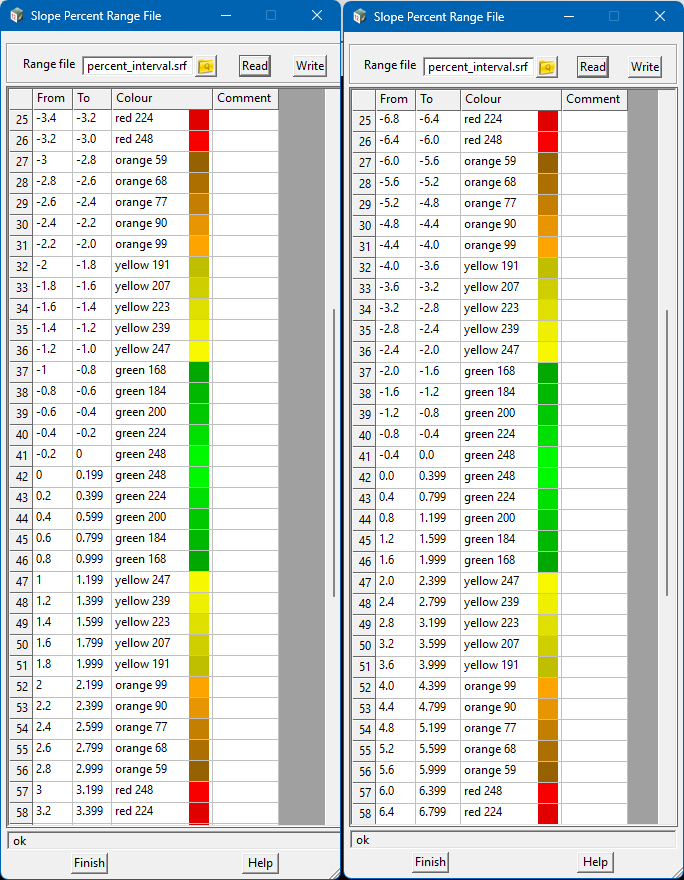

12d Model is shipped with example “Slope Range files” in the installation library ($lib)
Note: The slope of each segment can be “-” or “+” depending on the way the segment is calculated in the chainage direction.
For information on how to create your own “Slope Range” file refer to this 12dwiki video

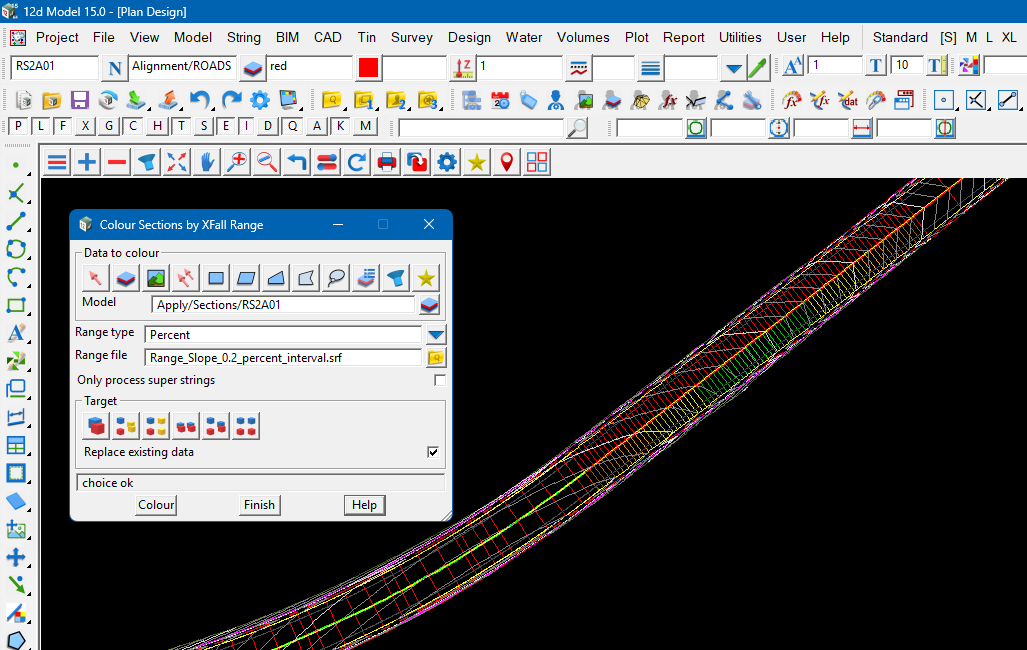

To open this Panel, Use: “Design =>X-Sections =>Colour X-Sections by Xfall range” or “Utilities =>A-G =>Colour X-Sections by Xfall range“
