This option has been written for use with the “Design > Roads > Create ramps/driveways” option and generates computated super alignments strings from a single string to form a defined number of links (shape) defined by the user.
Users can add their shape via the “grid” entry or via a “template” and the produced strings are all created as Element method SA strings. Meaning if the base kerb return/traffic island was to be modified these additional links/strings would also be modified.

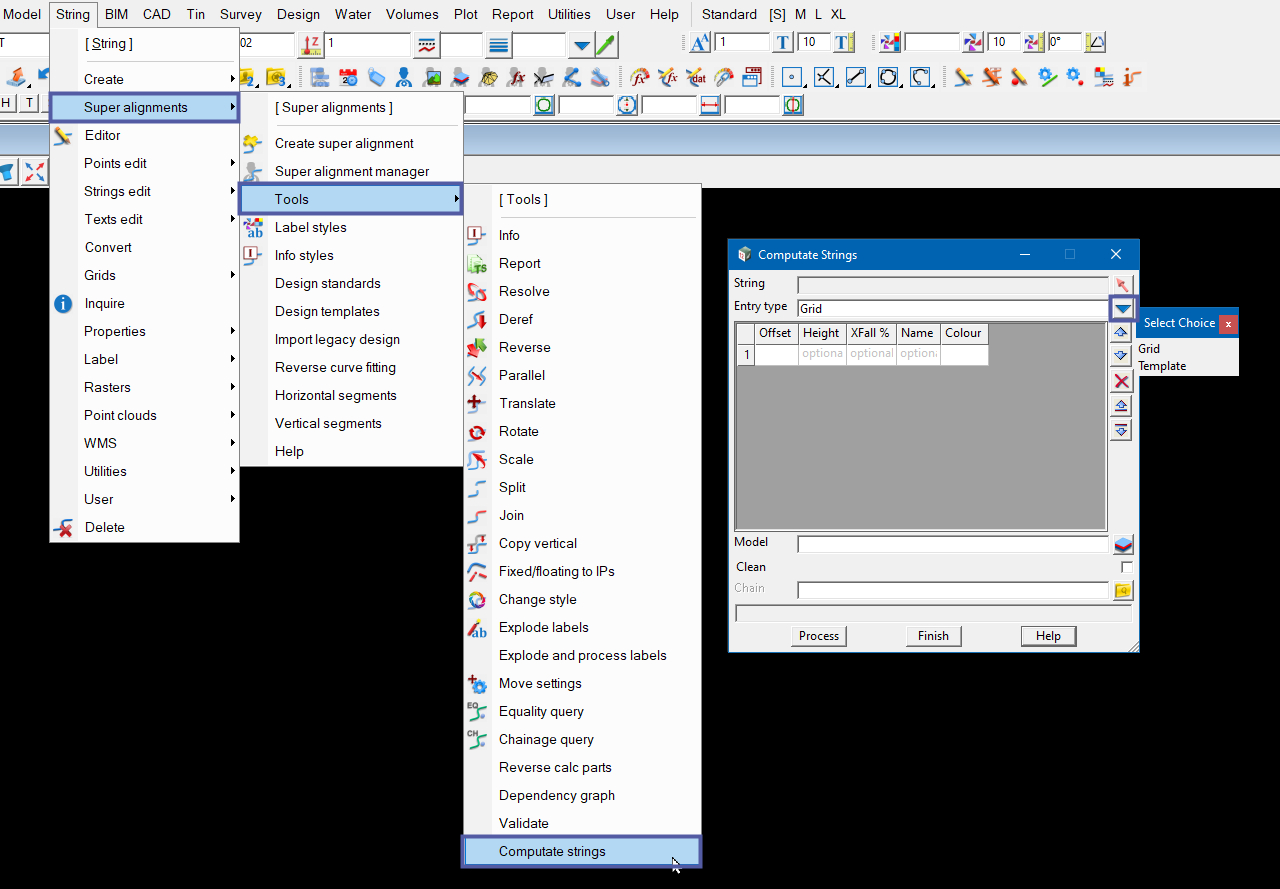

For a demonstartion on the use of this option, please check out “Topic 3” in the 12d Training Workflow video linked here. A copy of the spreadsheet shown in the video can be downloaded from the resourses tab on the website.[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]To view the Computate strings Panel, Use: String =>Super alignments =>Tools => Computate strings[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_separator border_width=”5″][/vc_column][/vc_row][vc_row][vc_column][vc_video link=”https://vimeo.com/888892086″ align=”center”][/vc_column][/vc_row][vc_row][vc_column][vc_single_image image=”10739″ img_size=”full”][/vc_column][/vc_row]
