This option is used to create ridge and valley lines for a given tin.

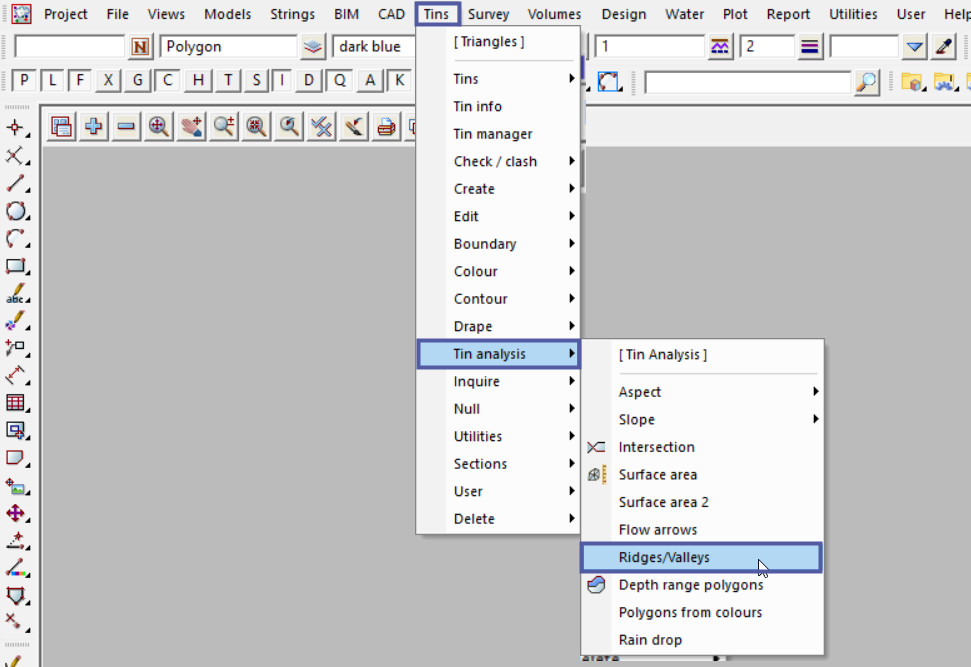

Continue down the page to see the Tin Ridges and Valleys Panel options.[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_separator border_width=”5″][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]To view the Tin Ridges and Valleys Panel, Use: Tins => Tin Analysis => Ridges/Valleys
[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_single_image image=”3704″ img_size=”full”][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]To create the Ridge and Valley strings:

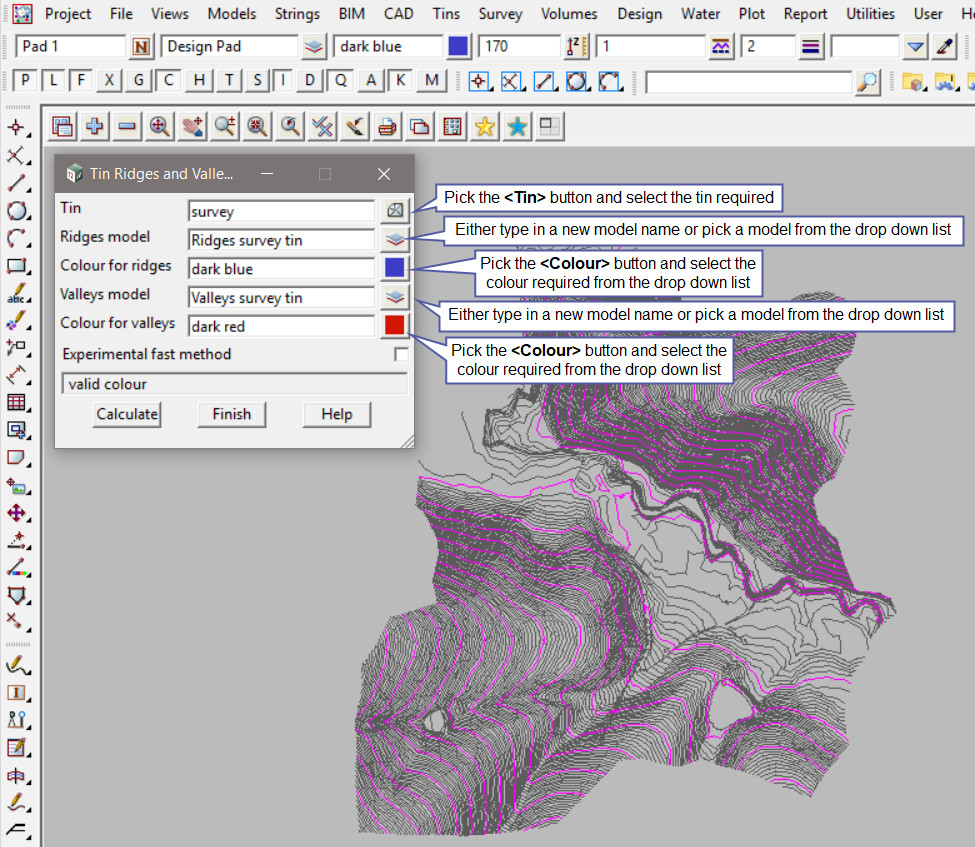

Pick the <Tin> button and select the tin required.
Either type in a new model name or pick the <Model> button and select a model from the drop down list for the ‘Ridges Model’.
Pick the <Colour> button and select a colour from the drop down list for the Ridge strings.
Either type in a new model name or pick the <Model> button and select a model from the drop down list for the ‘Valleys Model’.

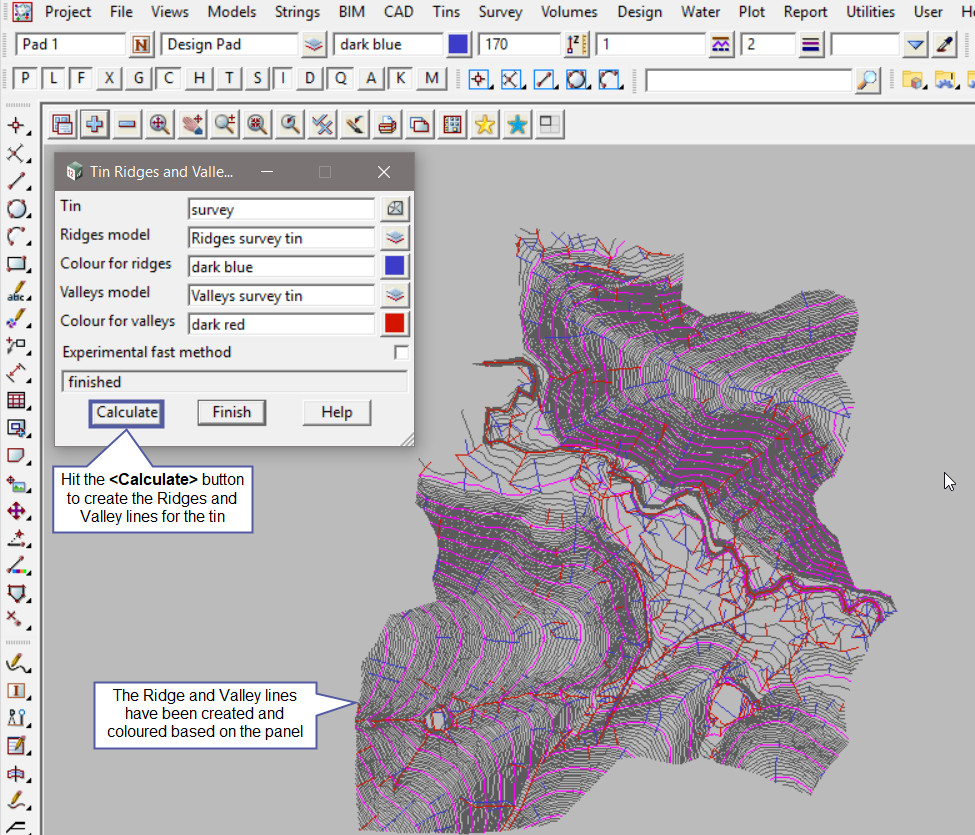

Pick the <Colour> button and select a colour from the drop down list for the Valley strings.[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_single_image image=”3821″ img_size=”full”][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]Hit the <Calculate> button to create the Ridge and Valley strings for the selected tin.
Pick the <+> button on the plan view and select the new model from the drop down list.

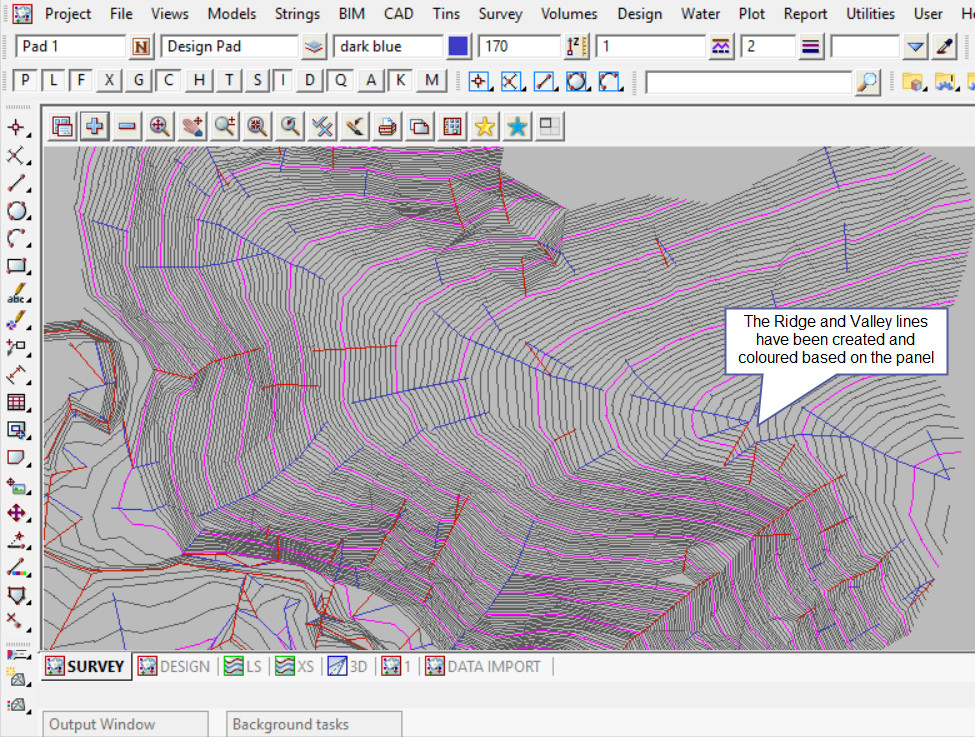

The Ridge and Valley strings have been created based on the tin and the triangles.[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_single_image image=”3827″ img_size=”full”][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]Here zoomed in the ridge and valley strings are easier to see.[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_single_image image=”3823″ img_size=”full”][/vc_column][/vc_row][vc_row][vc_column][vc_separator border_width=”5″][/vc_column][/vc_row]
