This tool is used to create a CAD Arc, using fillet by start point.
The video below will show how to create a CAD Arc using the fillet by start point method .

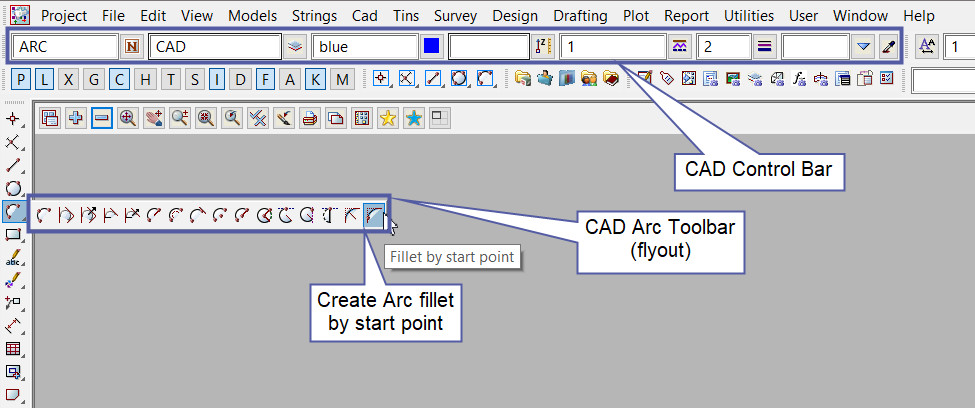

Or continue down the page to see the CAD Arc fillet by start point create option.[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_video link=”https://vimeo.com/874639424″][/vc_column][/vc_row][vc_row][vc_column][vc_separator border_width=”5″][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]This CAD Arc Fillet by Start Point option is found on the CAD Arc Toolbar, and is the 16th option when the toolbar files out.
Or from the menu, Use: CAD => Arc => Fillet by Start Point[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_single_image image=”1451″ img_size=”full”][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]
CAD Control Bar Options
The Point is created and placed using the details from the CAD Control Bar, these include,
String Name, Model, Colour, Z – Value, Linestyle, Weight and Tinable.
If you would like to learn more about the CAD Control Bar and how to utilise it,

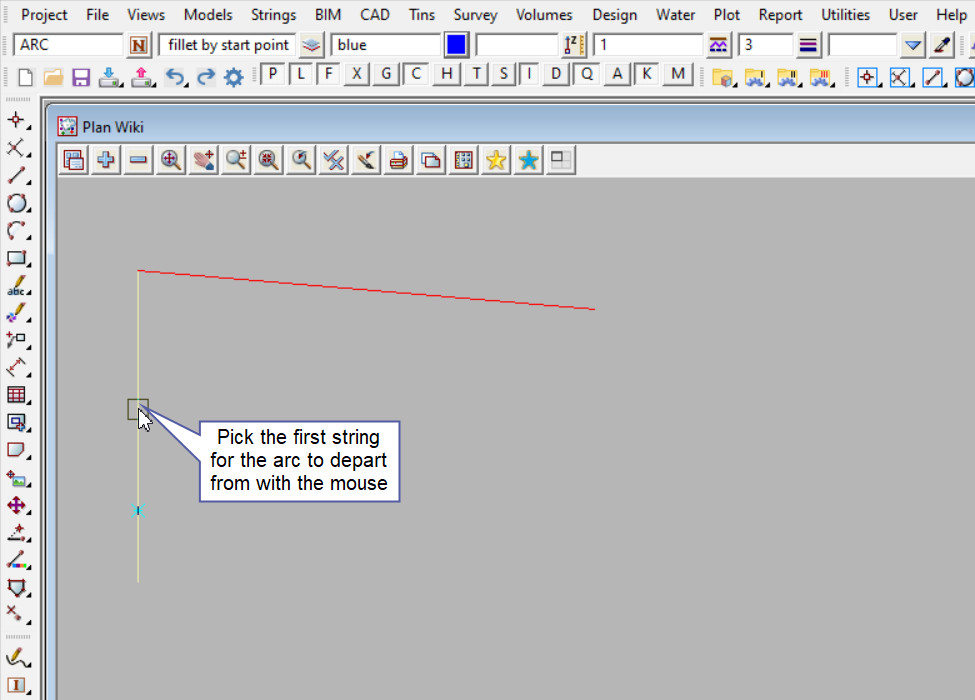

Visit this post: CAD Control Bar – How to Utilise It[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_separator border_width=”5″][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]Pick and Accept on the first string for the arc to depart from.
Note: Arc and Circles in 12d Model can be both clockwise and anti-clockwise in direction.
Clockwise arc/circles are entered into a panel with a positive (+) radius.
Anti-Clockwise arc/circles are entered into a panel with a negative (-) radius.
Please check the direction of the arc/circle to be created and use pick with direction if required.
If you would like to learn more about Picking with Direction and how to utilise it,

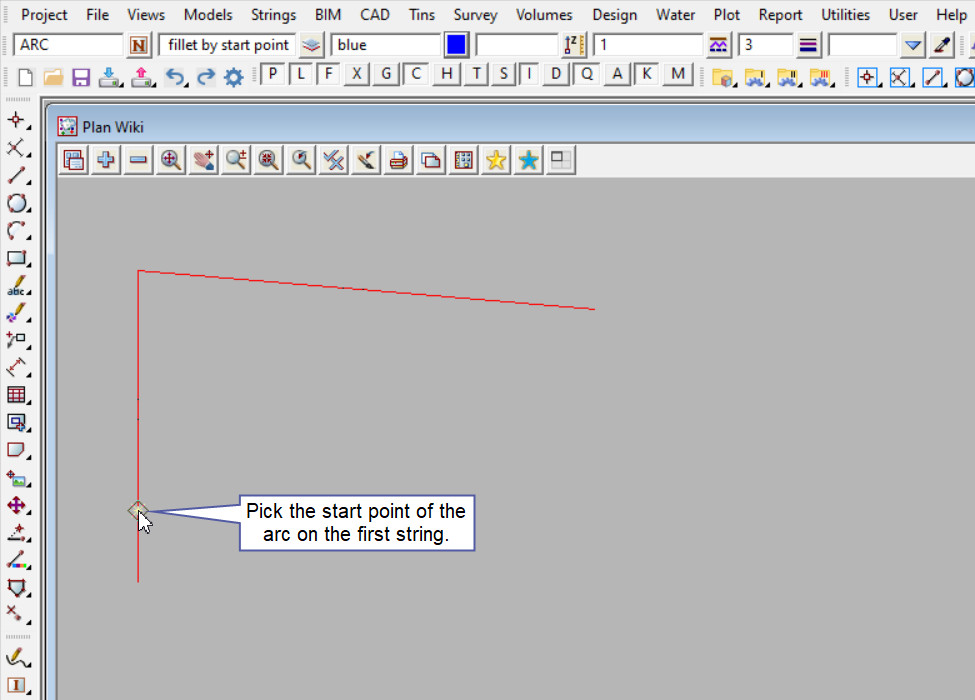

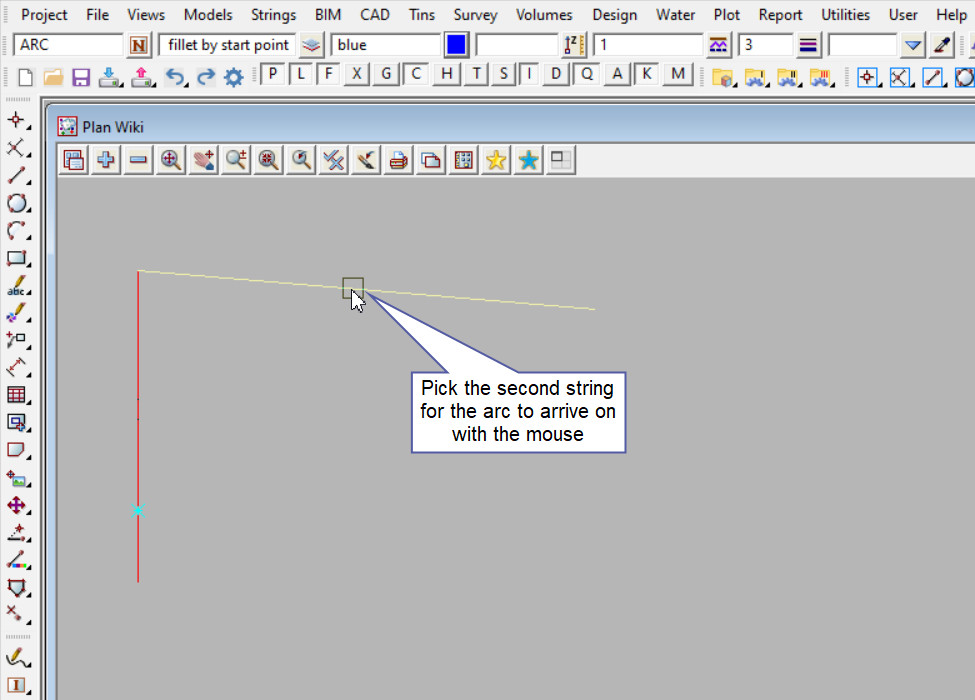

Visit this post: Picking with Direction[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_single_image image=”5336″ img_size=”full”][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]Pick and Accept on the second string for the arc to arrive on.[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_single_image image=”5338″ img_size=”full”][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]Pick the start point of the arc on the first string.[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_single_image image=”5340″ img_size=”full”][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]The new arc is created tangential to the 2 selected strings and the start of the arc is at the point selected.[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_single_image image=”5342″ img_size=”full”][/vc_column][/vc_row][vc_row][vc_column][vc_separator border_width=”5″][/vc_column][/vc_row]
