Trimesh BIM Objects Apply

  • Joel Allsop
  • Create

[vc_row][vc_column][vc_column_text]

Once you’ve created your BIM Objects, they need to be applied.  This is done using the Trimesh BIM Objects apply tool.[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_separator border_width=”5″][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]To create a BIM Objects file, see here: 12dwiki.epicsites.com.au/trimesh-bim-objects-create[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]BIM=>Trimesh=>Create=>Trimesh BIM Objects Apply

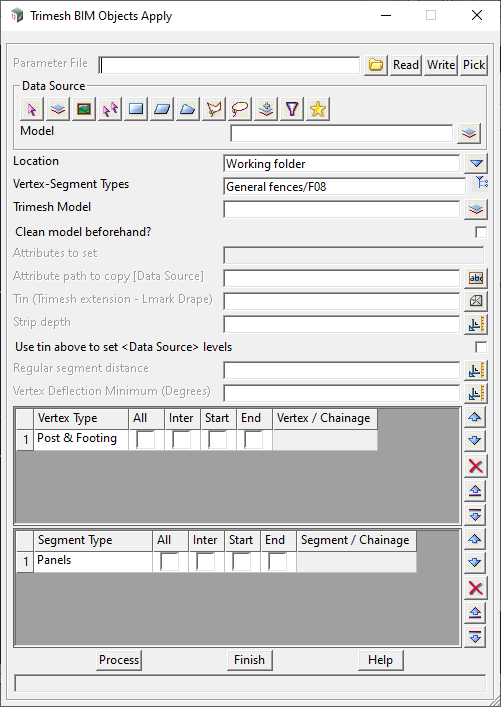

  • Parameter File:  Saves the panel layout, so that objects can be easily re-applied
  • Data Source:  Data (strings/points) to apply objects to
  • Vertex-Segment Type:  Select the object to create
  • Trimesh Model:  Model for created Trimesh
  • Clean model beforehand:  Tick-on to automatically clear previous Trimesh
  • Vertex Type:  RMB to select object to apply, then tick-on ALL
  • Segment Type:  RMB to select the object to apply, then tick-on ALL

Click <Process> to create the objects.[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_single_image image=”8776″ img_size=”full”][/vc_column][/vc_row][vc_row][vc_column][vc_separator border_width=”5″][/vc_column][/vc_row]
