To export a .csv file from Captivate, follow the steps below.

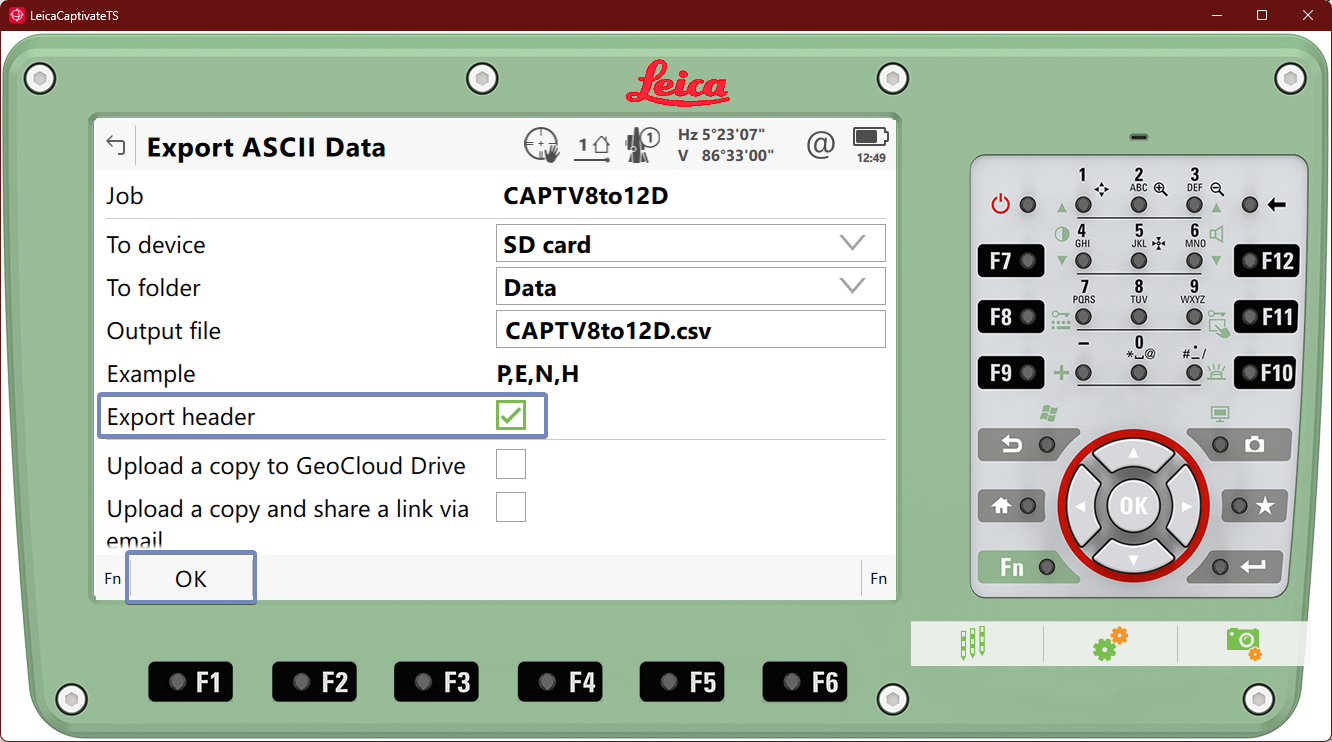

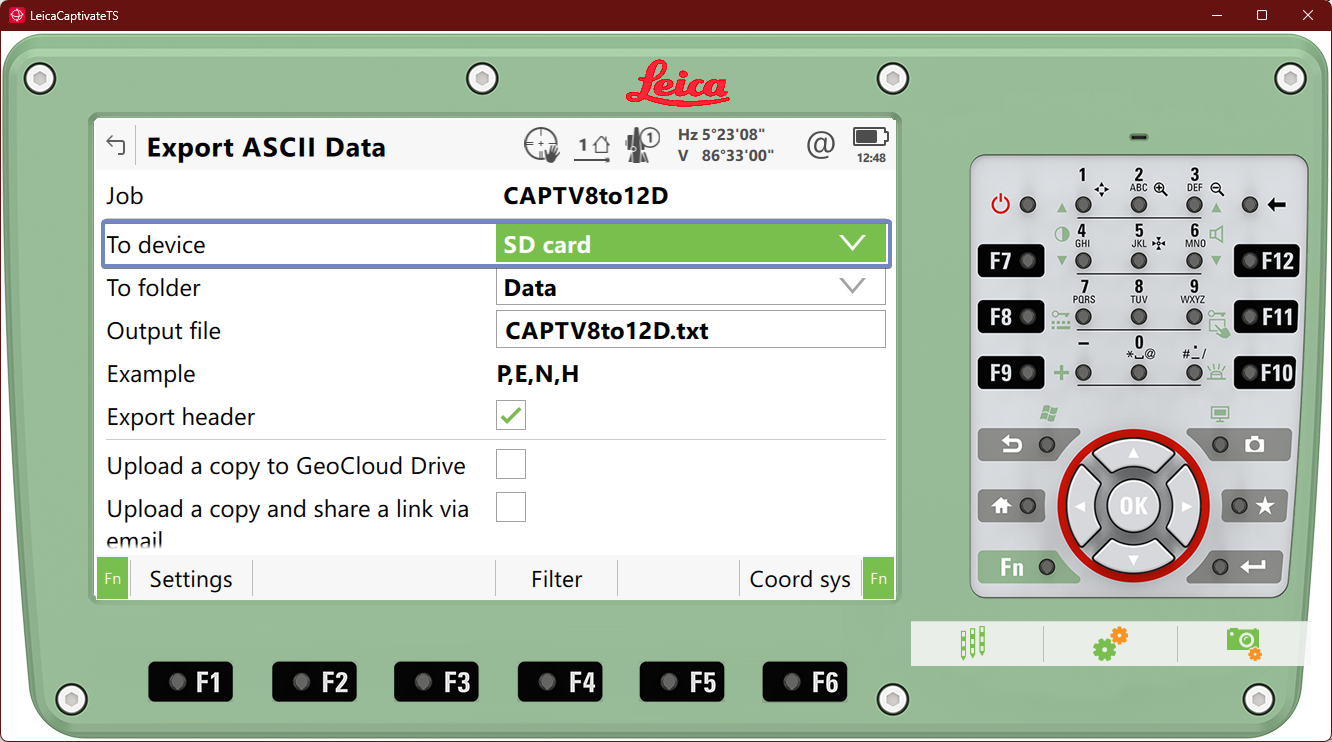

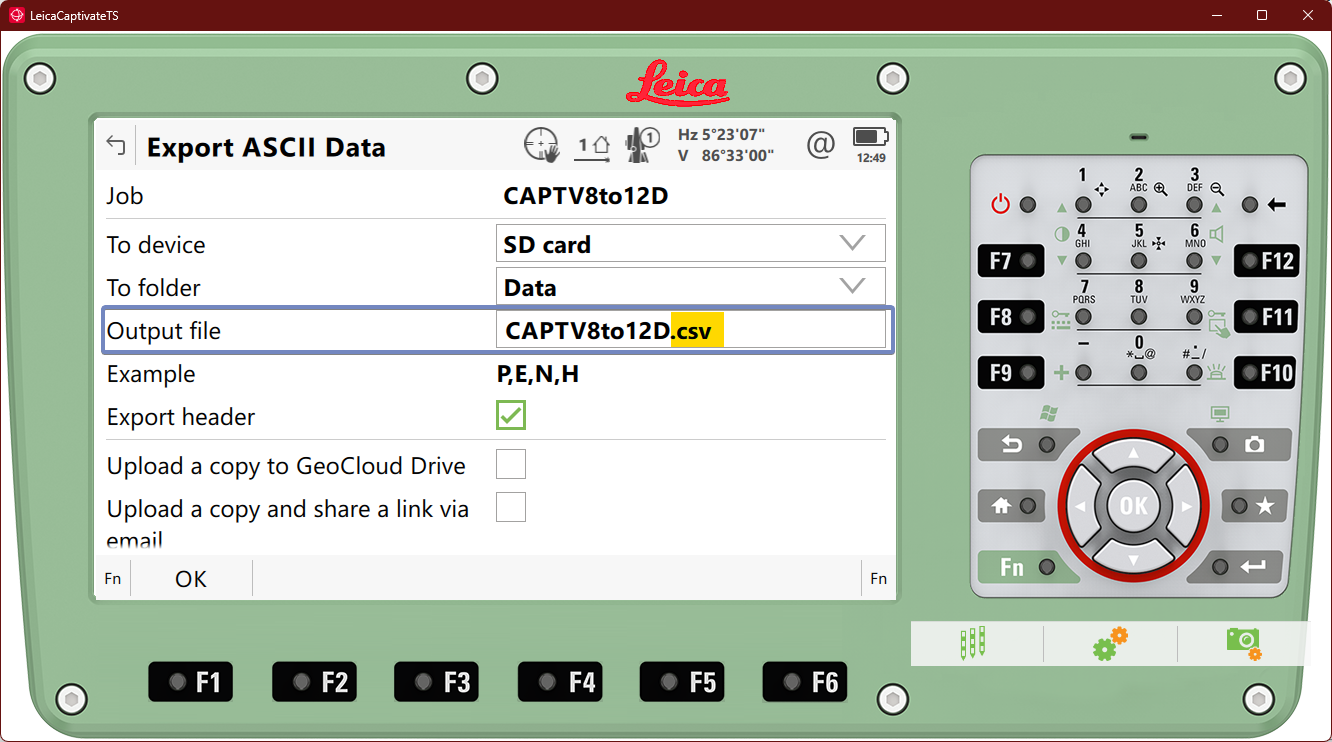

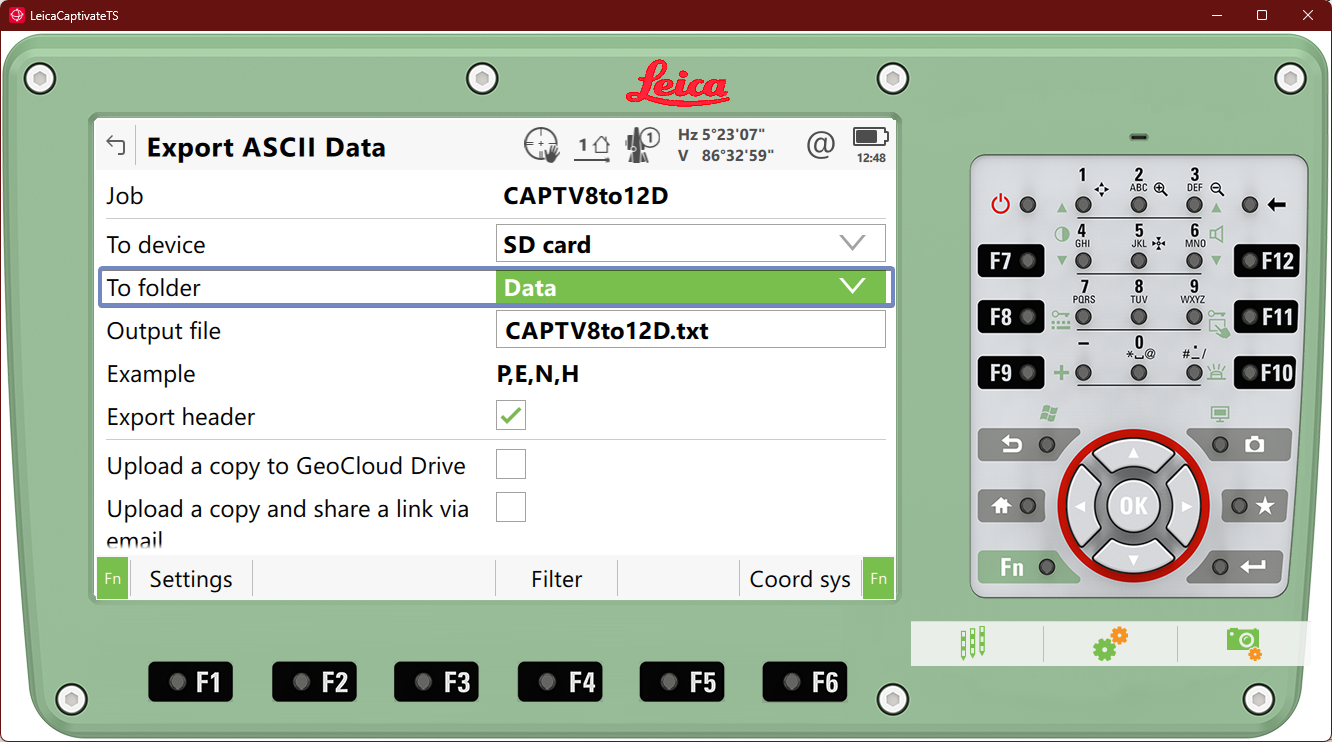

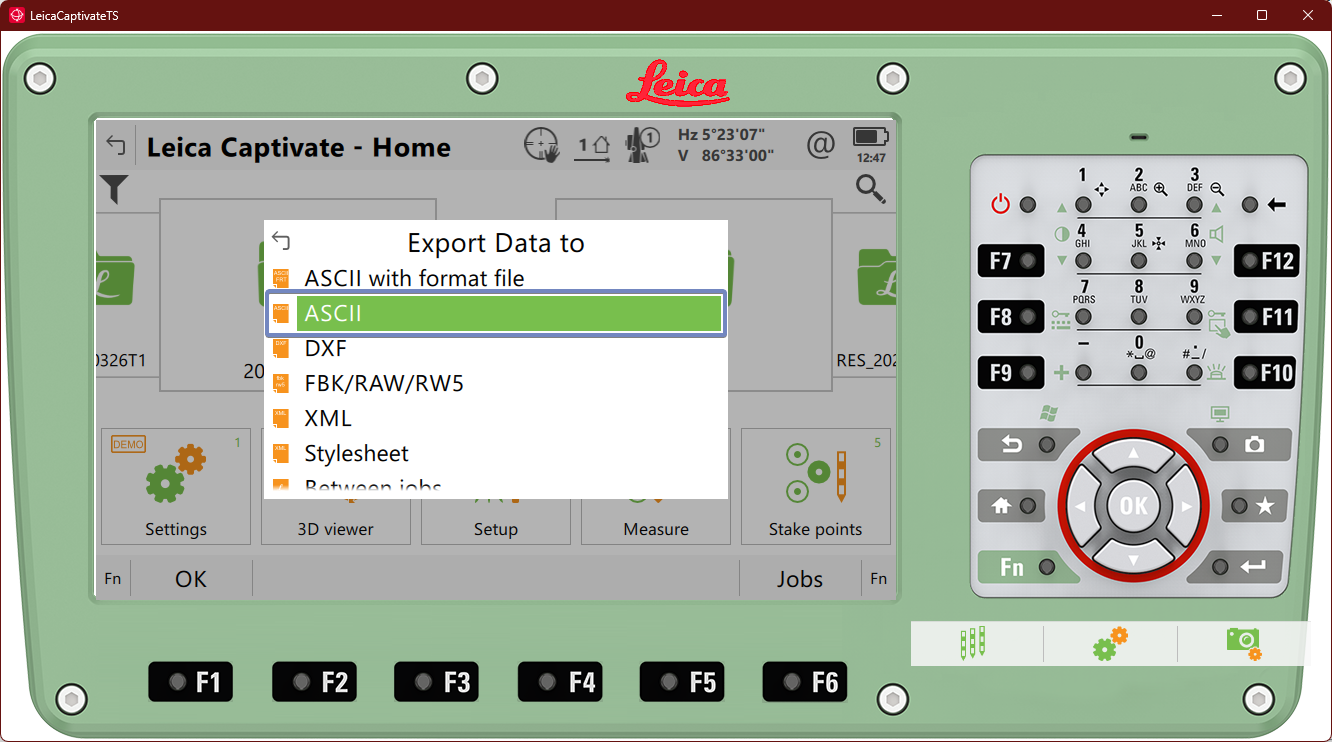

[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_column_text css=””]Step 1: Click on the job containing the data you wish to export[/vc_column_text][vc_single_image image=”12965″ img_size=”full” alignment=”center” css=””][vc_column_text css=””]Step 2: Click on Export data[/vc_column_text][vc_single_image image=”12967″ img_size=”full” alignment=”center” css=””][vc_column_text css=””]Step 3: Select ASCII[/vc_column_text][vc_single_image image=”12968″ img_size=”full” alignment=”center” css=””][vc_column_text css=””]Step 4: Choose the device you want to export the data to. In this example I am using an SD card.[/vc_column_text][vc_single_image image=”12969″ img_size=”full” alignment=”center” css=””][vc_column_text css=””]Step 5: Choose the folder, on the device, that you wish the exported data file to be written to. In this example my folder name is “Data”.[/vc_column_text][vc_single_image image=”12970″ img_size=”full” alignment=”center” css=””][vc_column_text css=””]Step 6: Input the name of the file to be exported and change the file extension from “.txt” to “.csv”[/vc_column_text][vc_single_image image=”12971″ img_size=”full” alignment=”center” css=””][vc_column_text css=””]Step 7: Choose whether or not to export the header information. Then press “OK”.[/vc_column_text][vc_single_image image=”12972″ img_size=”full” alignment=”center” css=””][/vc_column][/vc_row][vc_row][vc_column][vc_separator border_width=”5″ css=””][/vc_column][/vc_row][vc_row][vc_column][vc_column_text css=””]Your file will now exist in the nominated folder of the selected device[/vc_column_text][vc_single_image image=”12979″ img_size=”full” alignment=”center” css=””][vc_column_text css=””]The contents of the file will look like the below example.[/vc_column_text][vc_single_image image=”12974″ img_size=”full” alignment=”center” css=””][/vc_column][/vc_row][vc_row][vc_column][vc_separator border_width=”5″ css=””][/vc_column][/vc_row][vc_row][vc_column][vc_column_text css=””]The information in this post was curated using the 12d Field TPS simulator in 12d Model 12d Model 15.0C1u [DEVELOP] INT Build 03-08-2025 MKIII and the Leica Captivate TS Simulator release version 9.00
If you find that a current release version (released after the version stated above) contains differences, operating issues, potential bugs or require further explanation please contact the EXDS Support team.[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_separator border_width=”5″ css=””][/vc_column][/vc_row]
