This tool is used to measure the surface area of a tin restricted by a specified polygon.

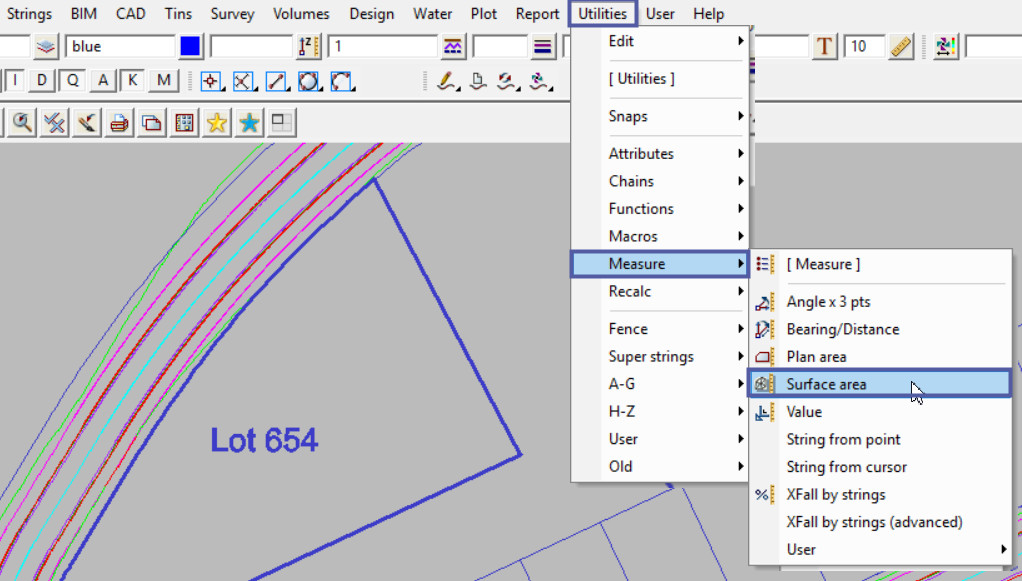

Use: Utilities => Measure => Surface Area[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_single_image image=”499″ img_size=”full”][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]Once the panel is open:
- Select the Tin – for the Surface area to be calculated from.
- Report Type – select the format for the report to be created in.
- Report File – type in a report file name if a document is required to be created.
- Poly – pick the Polygon to find the slope area inside it.
[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]The example below show a cadastral lot and the surface tin.

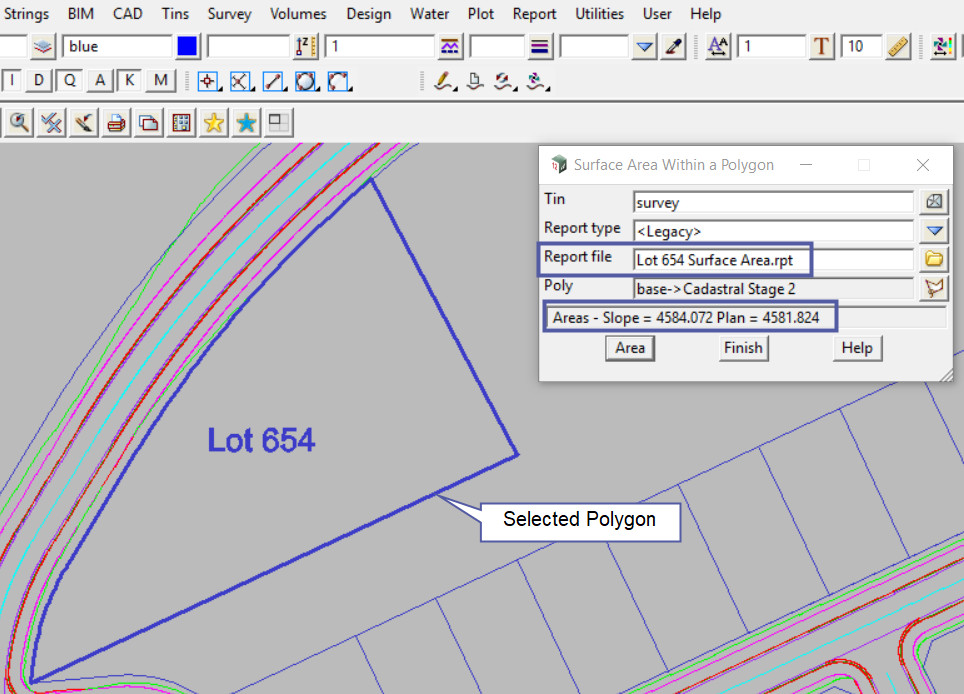

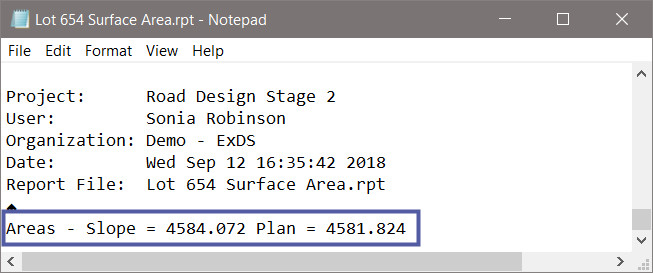

The panel will display both the Slope area along with the plan area.[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_single_image image=”500″ img_size=”full”][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]The Report, if created will also include the Slope area along with the plan area as shown below.[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_single_image image=”501″ img_size=”full”][/vc_column][/vc_row][vc_row][vc_column][vc_separator border_width=”5″][/vc_column][/vc_row]
