This tool is used to create a CAD Arc, using centre and end points.
The video below will show how to create a CAD Arc using the centre and end points method.

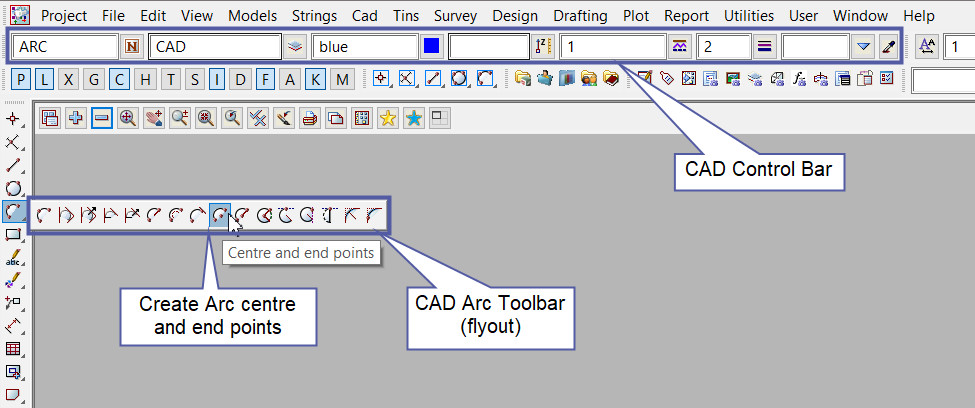

Or continue down the page to see the CAD Arc centre and end points create option.[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_video link=”https://vimeo.com/873945358″][/vc_column][/vc_row][vc_row][vc_column][vc_separator border_width=”5″][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]This CAD Arc Centre and End Points option is found on the CAD Arc Toolbar, and is the 9th option when the toolbar files out.
Or from the menu, Use: CAD => Arc => Centre and End Points[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_single_image image=”1431″ img_size=”full”][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]
CAD Control Bar Options
The Arc is created and placed using the details from the CAD Control Bar, these include,
String Name, Model, Colour, Z – Value, Linestyle, Weight and Tinable.
If you would like to learn more about the CAD Control Bar and how to utilise it,

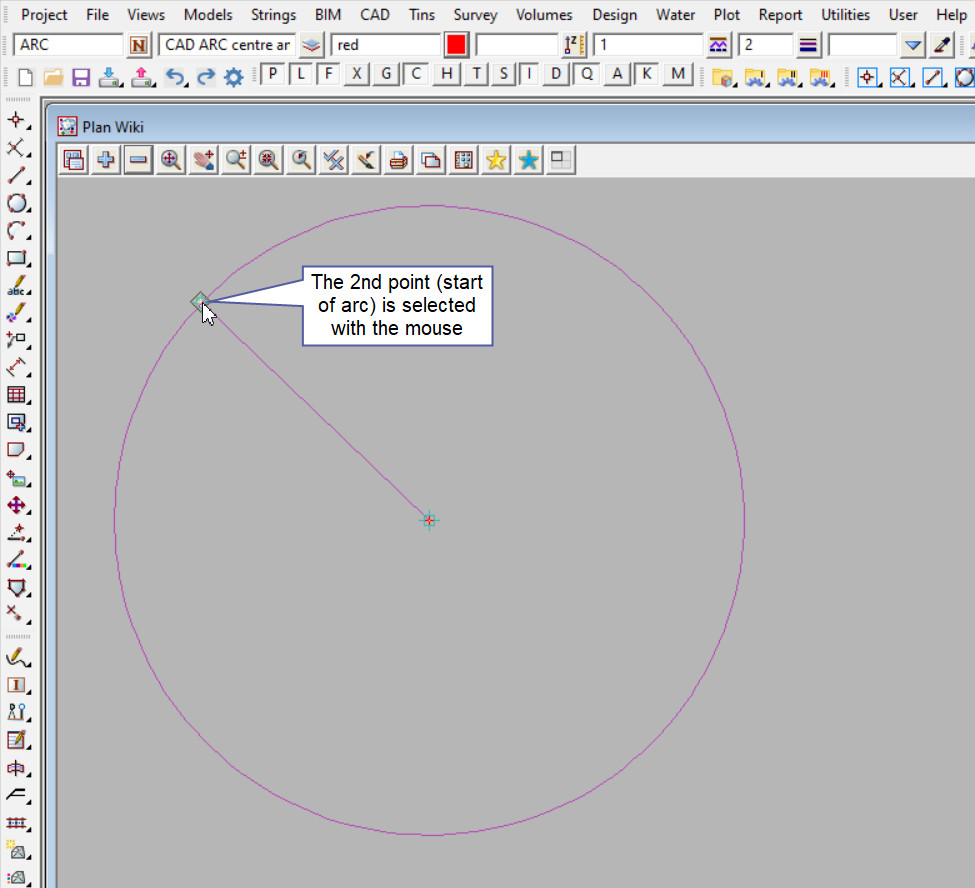

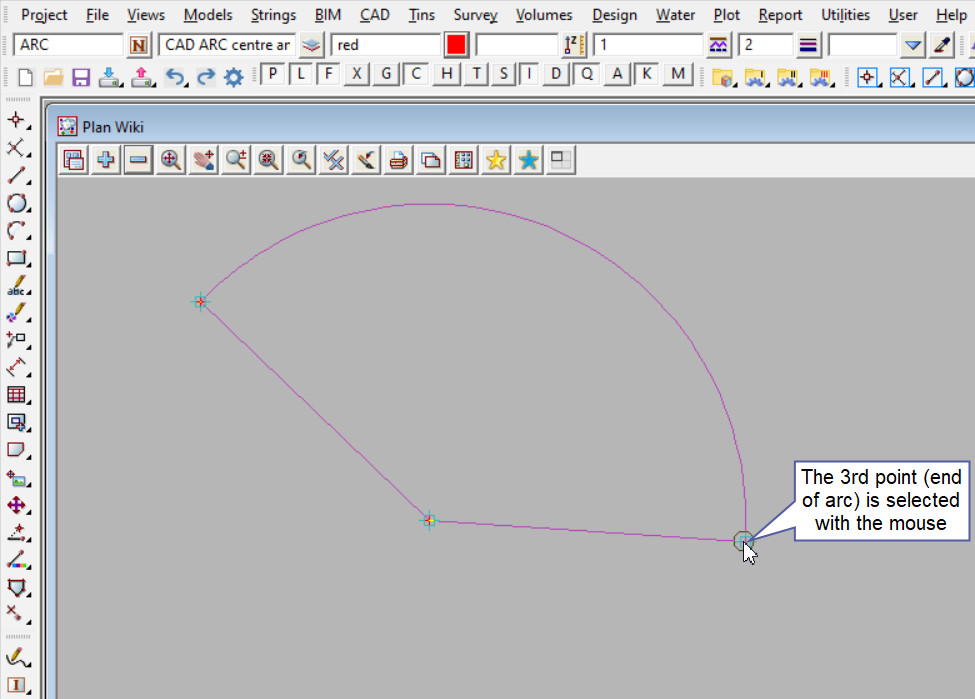

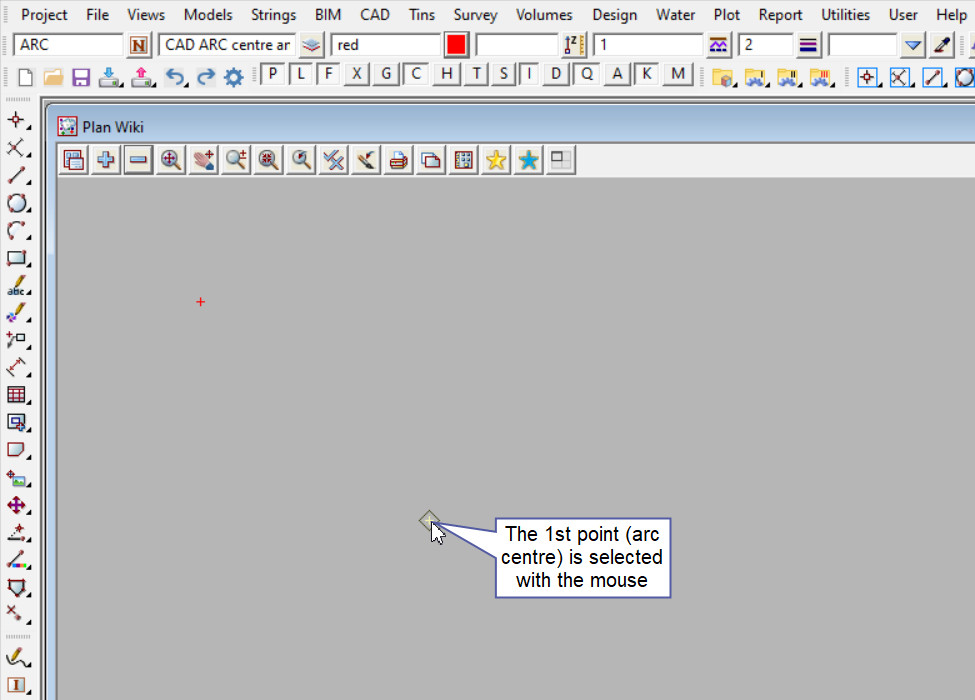

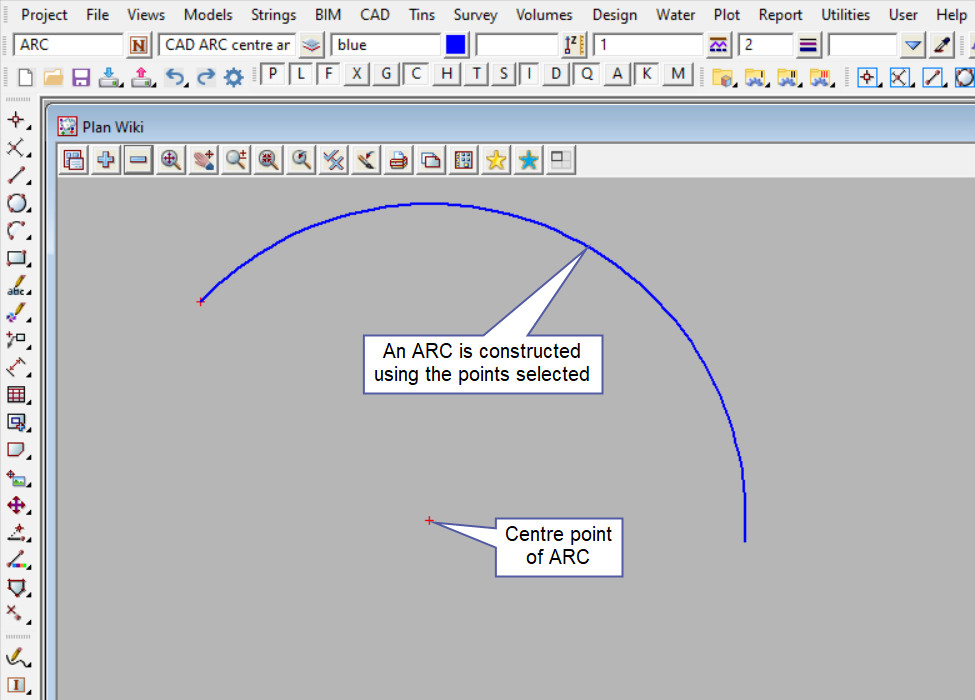

Visit this post: CAD Control Bar – How to Utilise It[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_separator border_width=”5″][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]The 1st point is selected with the mouse or entered in via the keyboard (this is the arc centre point). To specify the 1st point with the mouse, a point must be selected (Left Button) and accepted (Middle Button).[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_single_image image=”5123″ img_size=”full”][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]The 2nd point is selected with the mouse or entered in via the keyboard (this is the start point of the arc). To specify the 2nd point with the mouse, a point must be selected (Left Button) and accepted (Middle Button).[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_single_image image=”5126″ img_size=”full”][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]The final point is selected with the mouse or entered in via the keyboard (this is the end point of the arc). To specify the 3rd point with the mouse, a point must be selected (Left Button) and accepted (Middle Button).[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_single_image image=”5130″ img_size=”full”][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]An arc is constructed using the centre point and two ends points selected.[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_single_image image=”5132″ img_size=”full”][/vc_column][/vc_row][vc_row][vc_column][vc_separator border_width=”5″][/vc_column][/vc_row]
