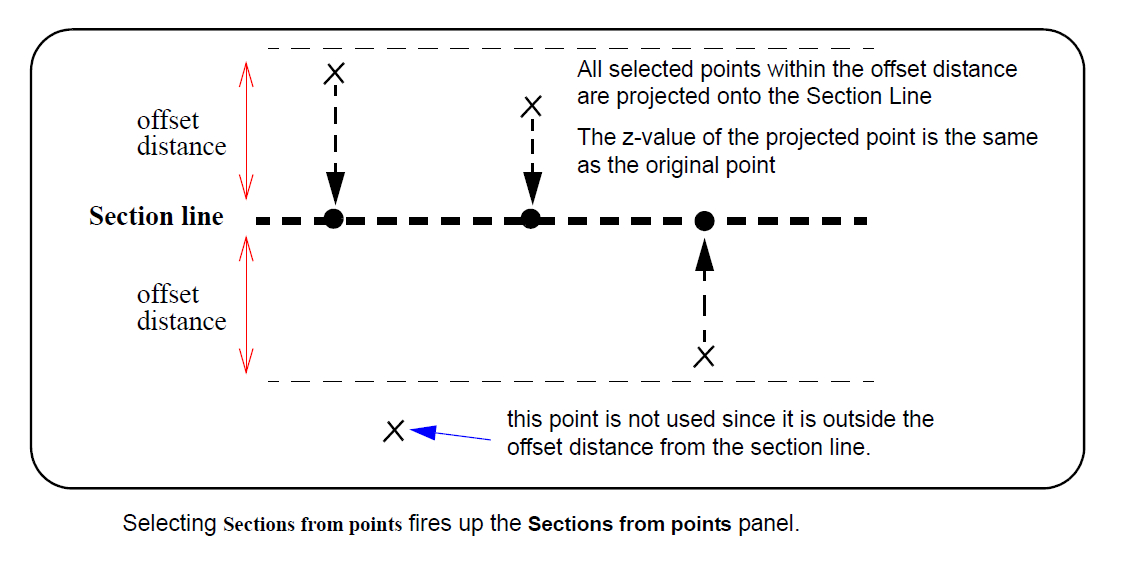

The X-sections from points option creates a cross section by first defining s section line and then dropping all selected points in a user defined offset distance from the section line, onto the section line.
(a) The Z-value for the dropped point is the same as for the original point.
(b) The Point number (Vertex id) of the dropped point is the Point number (Vertex id) of the original point.
(c) The Vertex text of the dropped is the code (string name) of the original point.
The user specifies the start chainage for the created section and the value for the “centreline chainage” of the section.

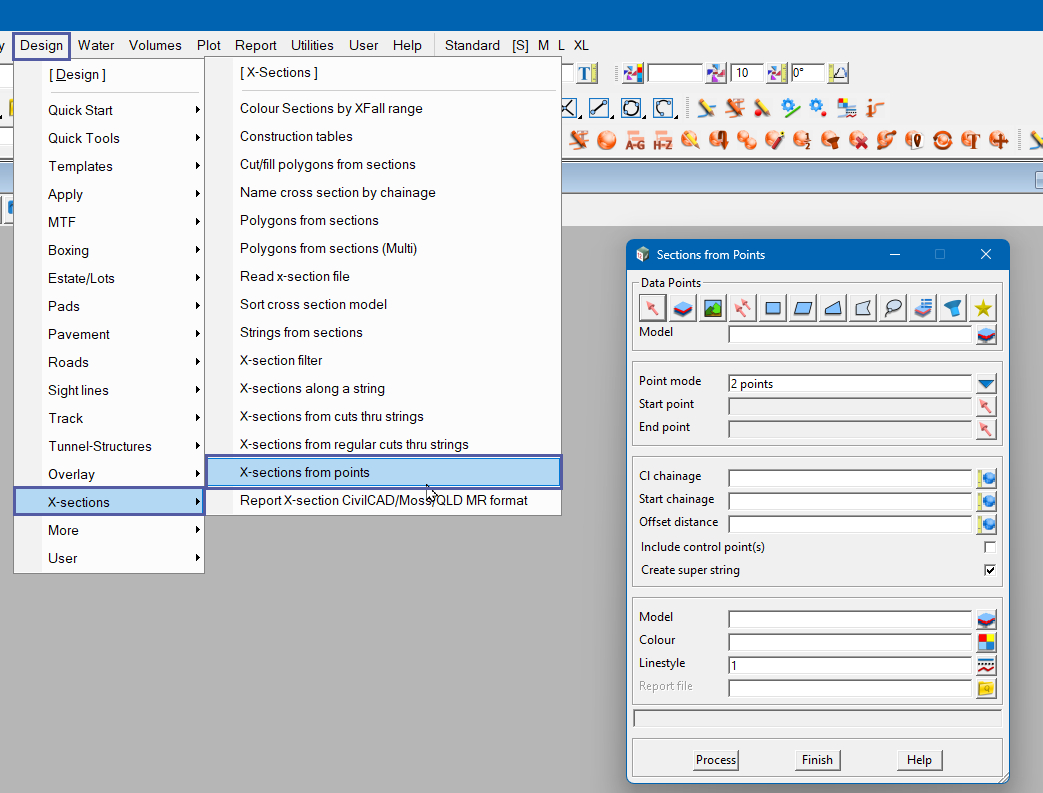

[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_separator border_width=”5″][/vc_column][/vc_row][vc_row][vc_column][vc_column_text css=””]To view the “X-Sections from Points” Panel,
Use: Design => X-Sections => X-Sections from Points[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_single_image image=”12945″ img_size=”full” css=””][/vc_column][/vc_row][vc_row][vc_column][vc_single_image image=”12948″ img_size=”full” css=””][/vc_column][/vc_row][vc_row][vc_column][vc_separator border_width=”5″][/vc_column][/vc_row]
