Depth Between Tins Inquire

[vc_row][vc_column][vc_column_text]

This option is used to calculate and display the difference between the z-values of two selected tins in the project at a cursor location.

Continue down the page to see the Depth Between Tins Inquire Panel options.[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_separator border_width=”5″][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]To view the Depth Between Tins Inquire Panel,

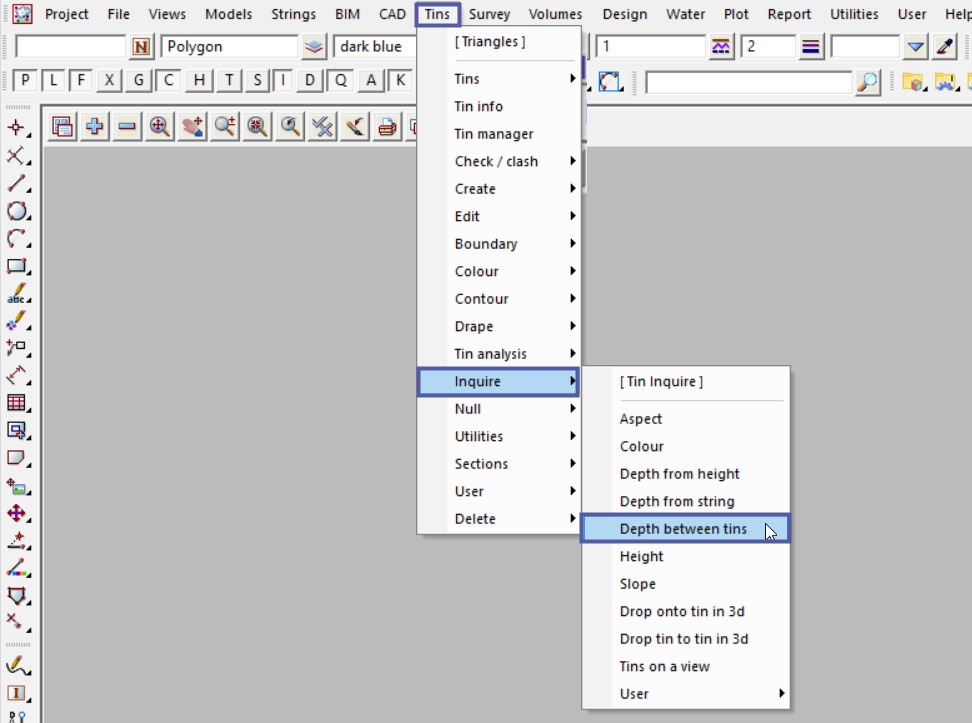

Use: Tins => Inquire => Depth Between Tins
[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_single_image image=”3499″ img_size=”full”][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]Pick the <Original Tin> button and select the tin required.

Pick the <New Tin> button and select the tin required.

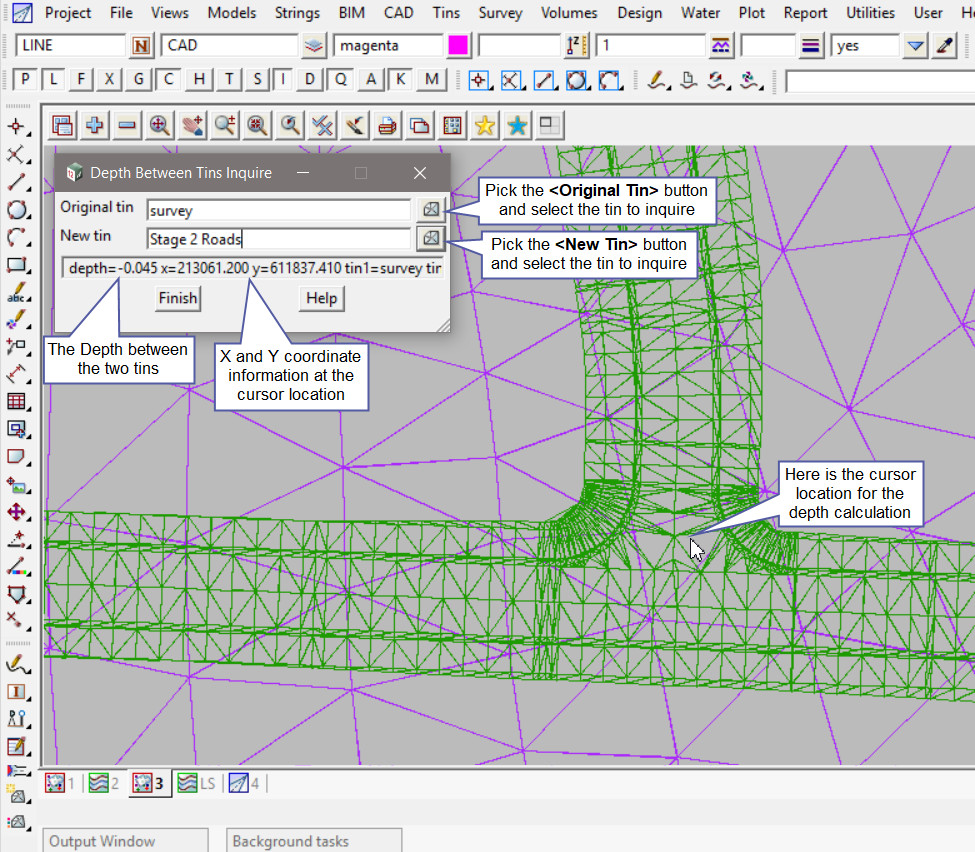

Hover the cursor over the two tins and the panel will display the depth calculations between the tins, as well as the x and y coordinates.

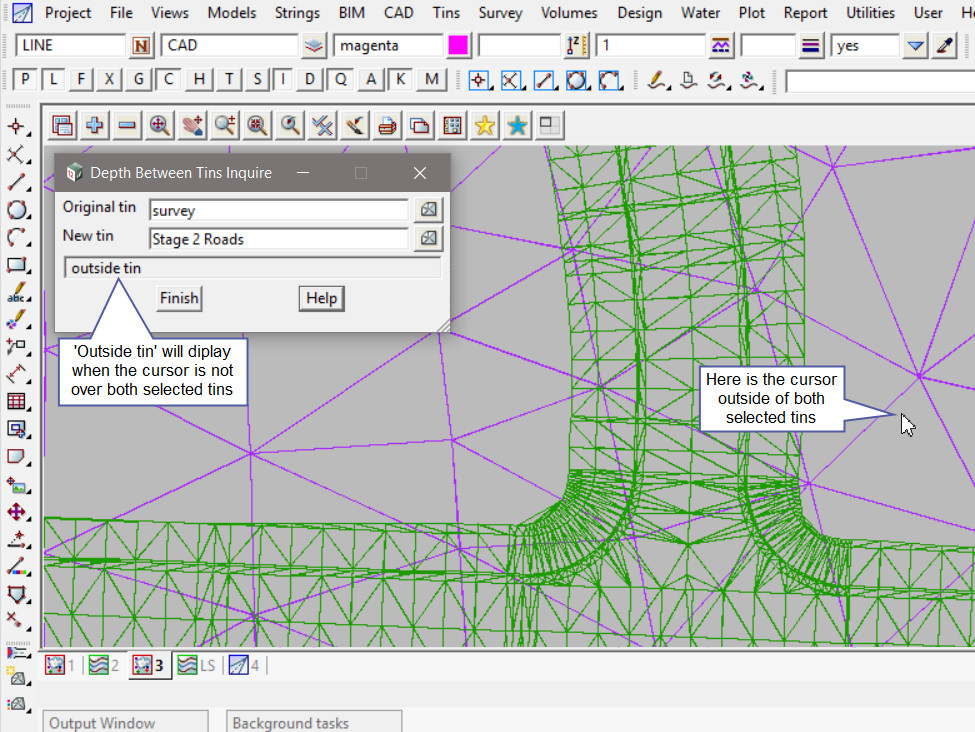

The depth value is calculated by taking the z-value of the New Tin and subtracting the z-value of the Original Tin.[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_single_image image=”3553″ img_size=”full”][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]If the cursor if moved to a location where either both tins or only one tin is shown, the panel will display the text ‘Outside Tin’, as no depth can be calculated.[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_single_image image=”3556″ img_size=”full”][/vc_column][/vc_row][vc_row][vc_column][vc_separator border_width=”5″][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]
