The Station details are displayed in the 12d Field – Current Setup Details panel.

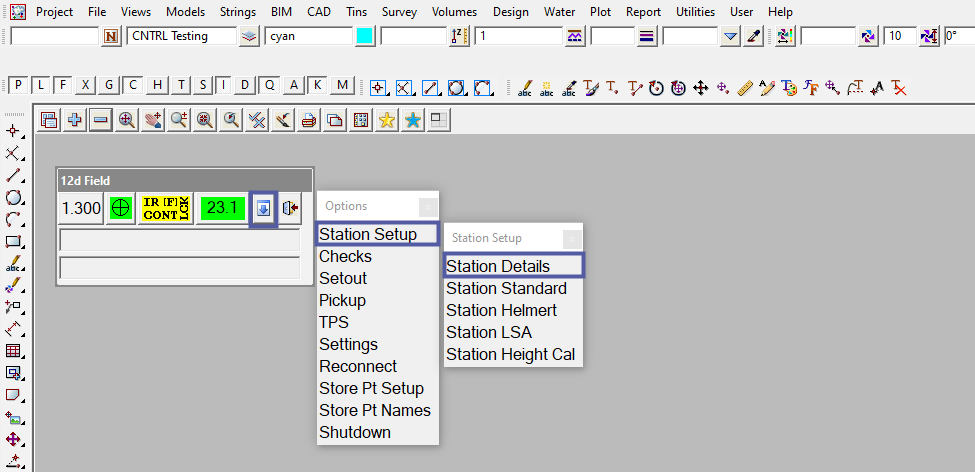

Scroll down the page to see the various information that the 12d Field – Current Setup Details panel displays.[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_separator border_width=”5″][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]To view the 12d Field – Current Setup Details panel, Use: Show Options => Station Setup => Station Details

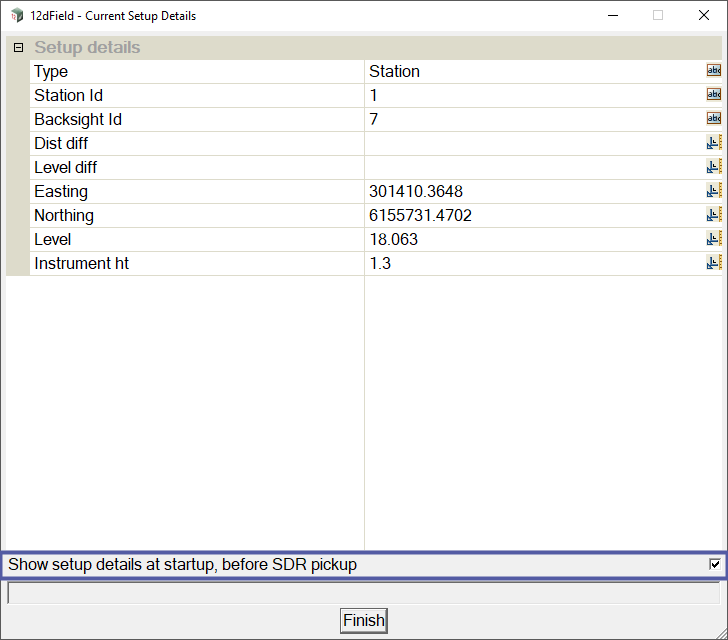

[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_single_image image=”5951″ img_size=”full”][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]See the below image of the 12d Field – Current Setup Details panel. This panel displays all the relevant information for the current setup.
At the bottom of the panel is a toggle option to have the 12d Field – Current Setup Details panel show when Pickup SDR is started.[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_single_image image=”5949″ img_size=”full”][/vc_column][/vc_row][vc_row][vc_column][vc_separator border_width=”5″][/vc_column][/vc_row]
