Segment Strings

[vc_row][vc_column][vc_column_text]

This tool is used to Segment strings/segments into sub-segments, creating points on the selected string by three different options:

• by number
• by one distance
• by distance

The video below will show how to Segment Strings.

Or continue down the page to see the Segment Strings options.[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_video link=”https://youtu.be/nE72fVES_B0″][/vc_column][/vc_row][vc_row][vc_column][vc_separator border_width=”5″][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]This tool is used to segment/divide string segments into small lengths.

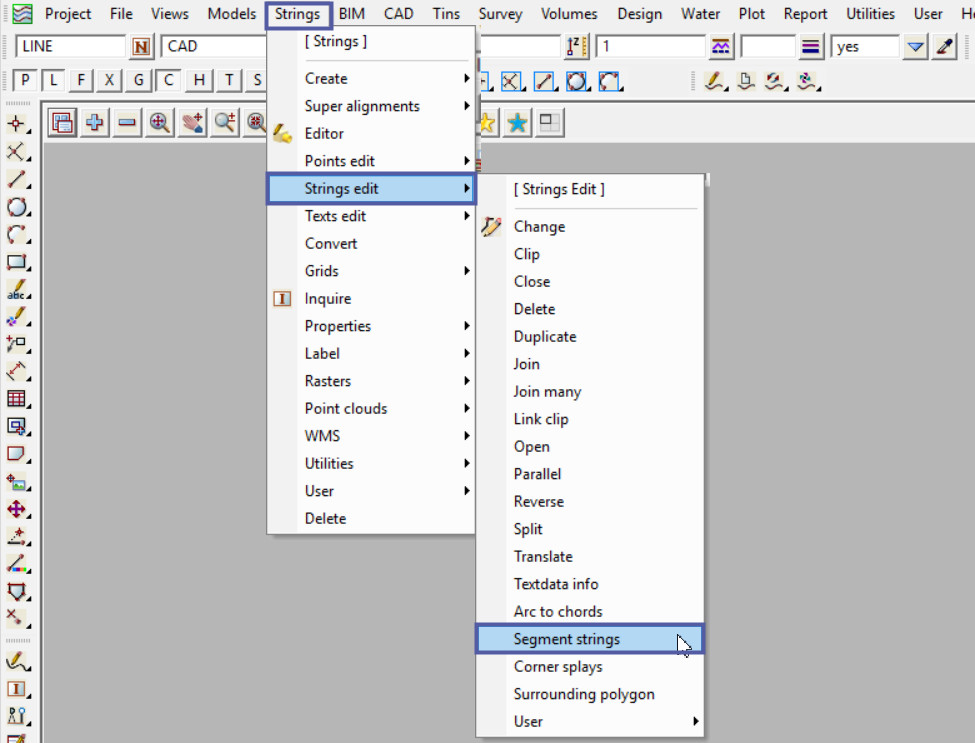

Use: Strings => Strings Edits => Segment Strings[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_single_image image=”1839″ img_size=”full”][/vc_column][/vc_row][vc_row][vc_column][vc_separator border_width=”5″][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]

Segment String – by Number

This option will segment the selected segment into a number of equal sub-segments.

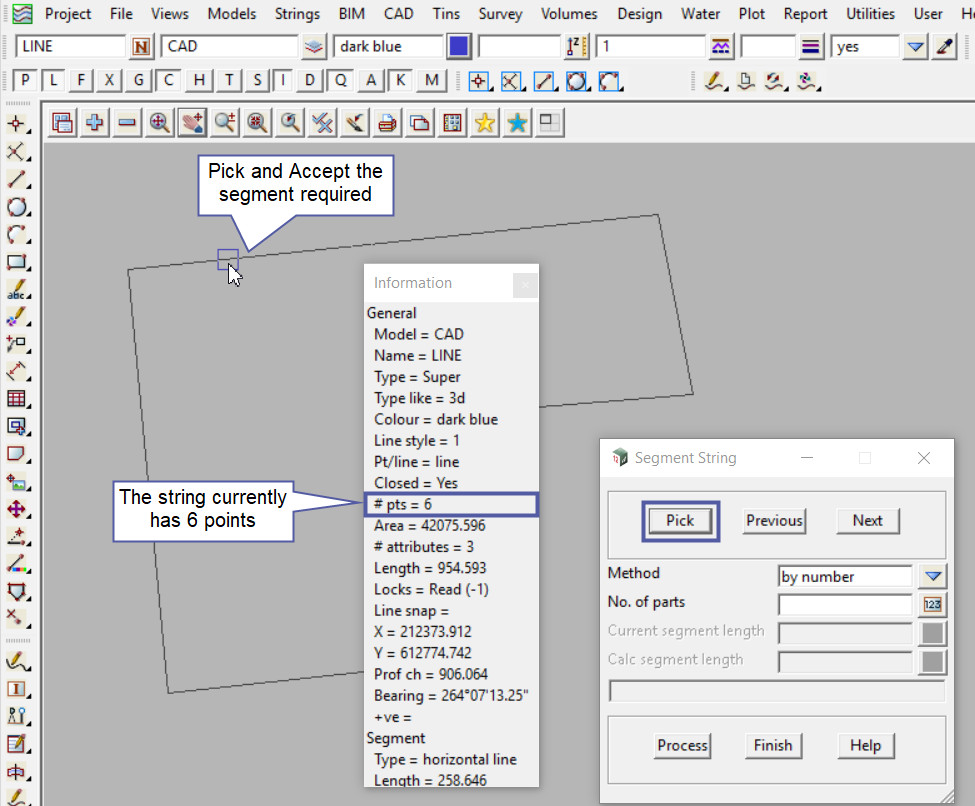

Use the <Pick> button to pick and accept the segment of the string required.[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_single_image image=”1840″ img_size=”full”][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]Type in the No. of Parts and hit the <Enter> key, 12d Model will fill out the Current Segment Length and the Segment Length fields.

• Current Segment Length = Original picked string segment length before any processing
• Segment Length = the proposed segment lengths after processing

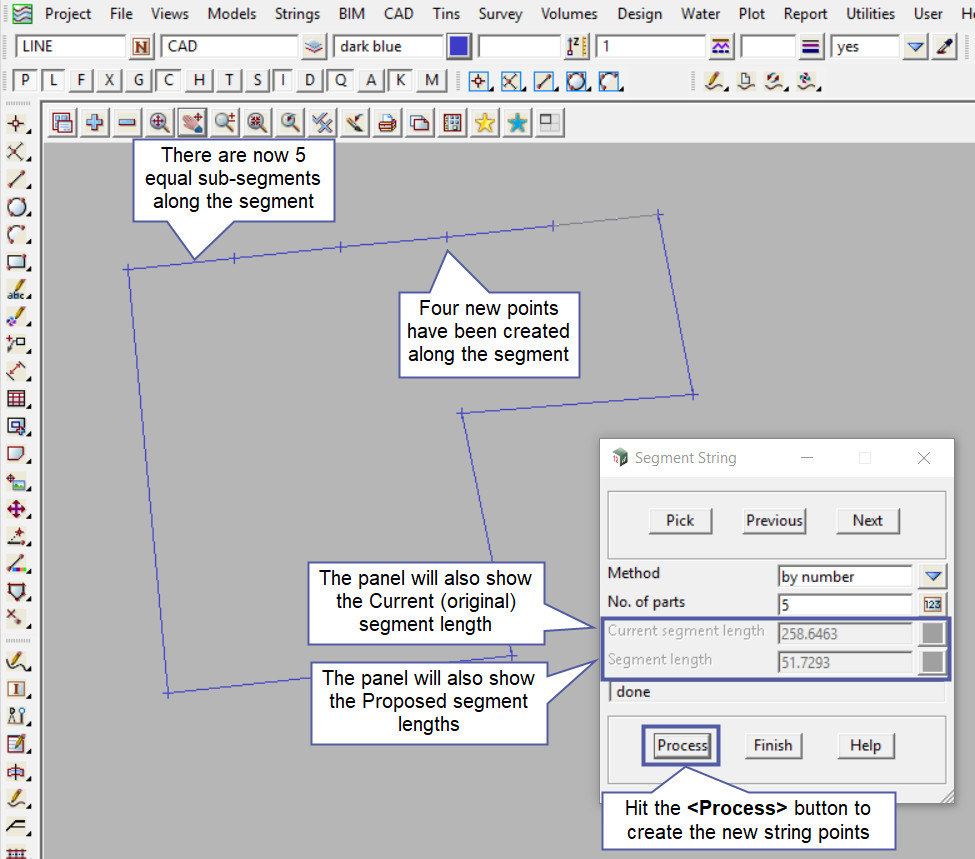

After the <Process> Button has been hit the new points will be created, use the Toggle button to turn on the vertices to see the new points on the string.

If you would like to learn more about the View Toggle options and how to utilise it,

Visit this post: View Toggle Options[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_single_image image=”1841″ img_size=”full”][/vc_column][/vc_row][vc_row][vc_column][vc_separator border_width=”5″][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]

Segment String – by One Distance

This option will segment the selected segment into two parts with the first part being the distance entered into the panel and the remaining segment is the left over length of the original segment.

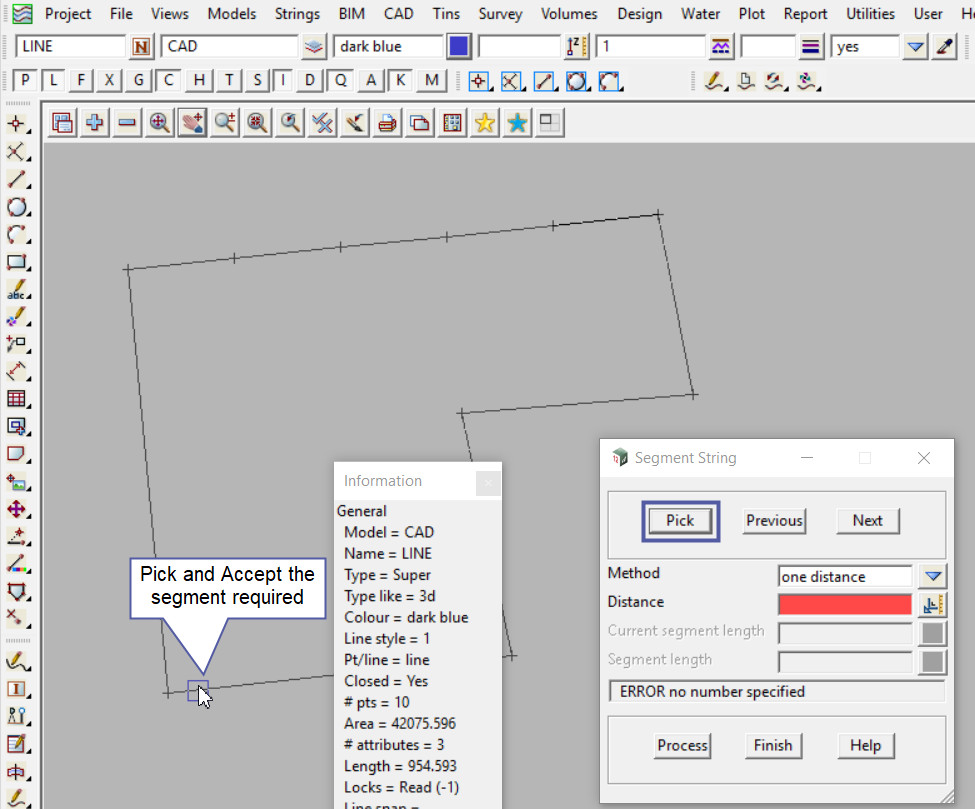

Use the Pick button to pick and accept the segment of the string required.[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_single_image image=”1850″ img_size=”full”][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]Type in the Distance and hit the <Enter> key, 12d Model will fill out the Current Segment Length and the Remain Length fields.

• Current Segment Length = Original picked string segment length before any processing
• Remain Length = the remaining segment length after the one distance length has been segmented out of the start of the string after processing

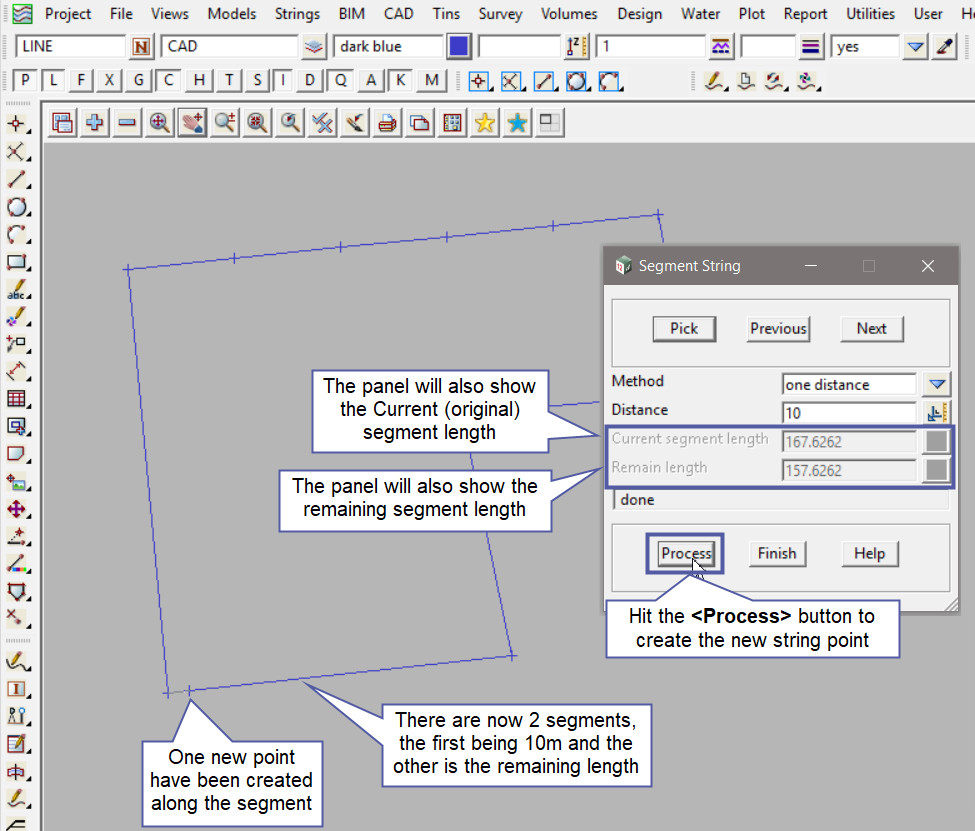

After the <Process> Button has been hit the new one point will be created.[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_single_image image=”1851″ img_size=”full”][/vc_column][/vc_row][vc_row][vc_column][vc_separator border_width=”5″][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]

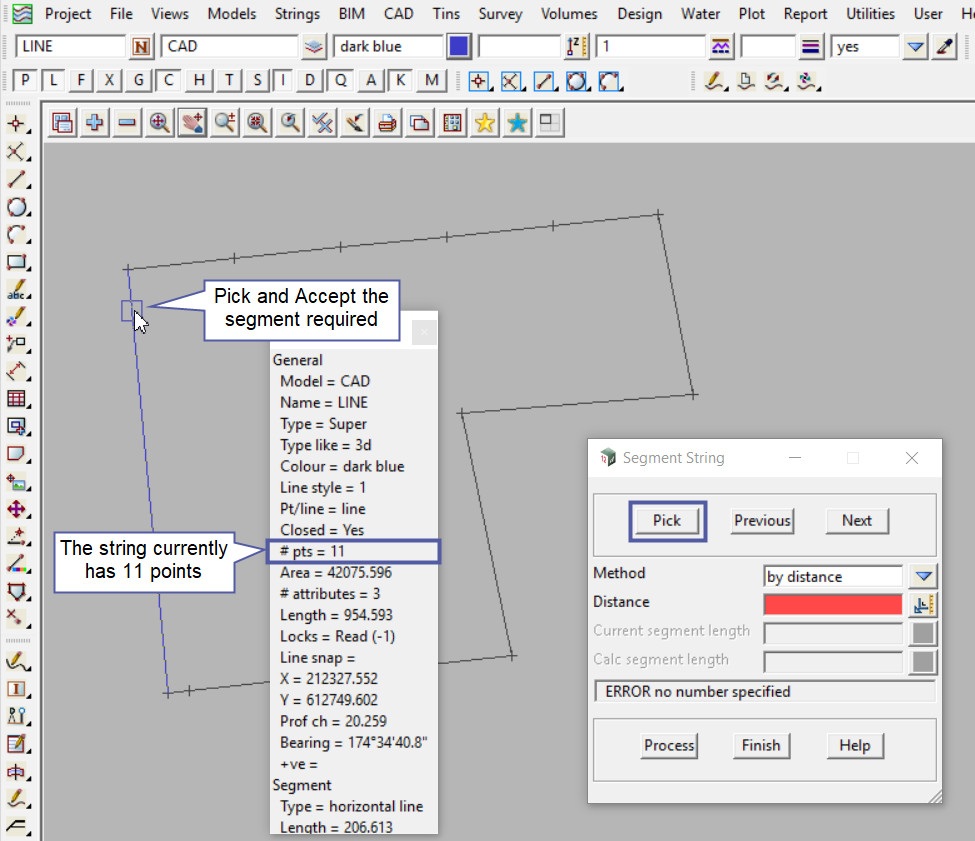

[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_single_image image=”1852″ img_size=”full”][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]Type in the Distance and hit the <Enter> key, 12d Model will fill out the Current Segment Length and the Remain Length fields.

• Current Segment Length = Original picked string segment length before any processing
• Remain Length = the remaining segment length after the distance ie 25m has been processed along the original segment.

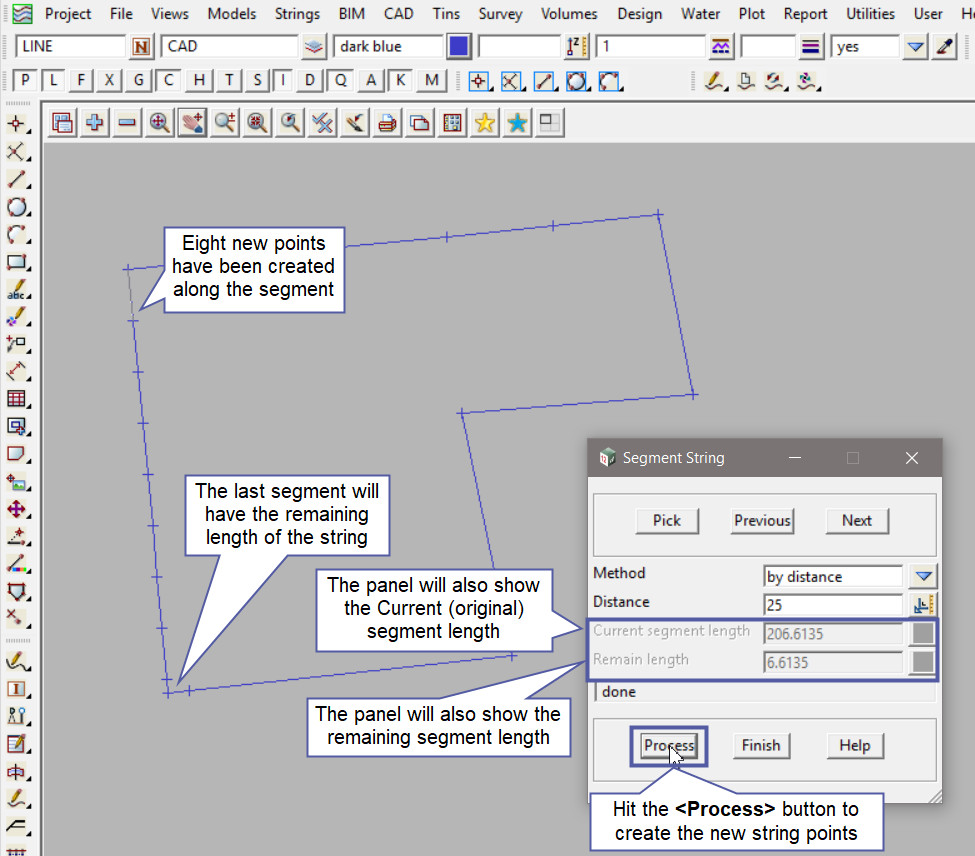

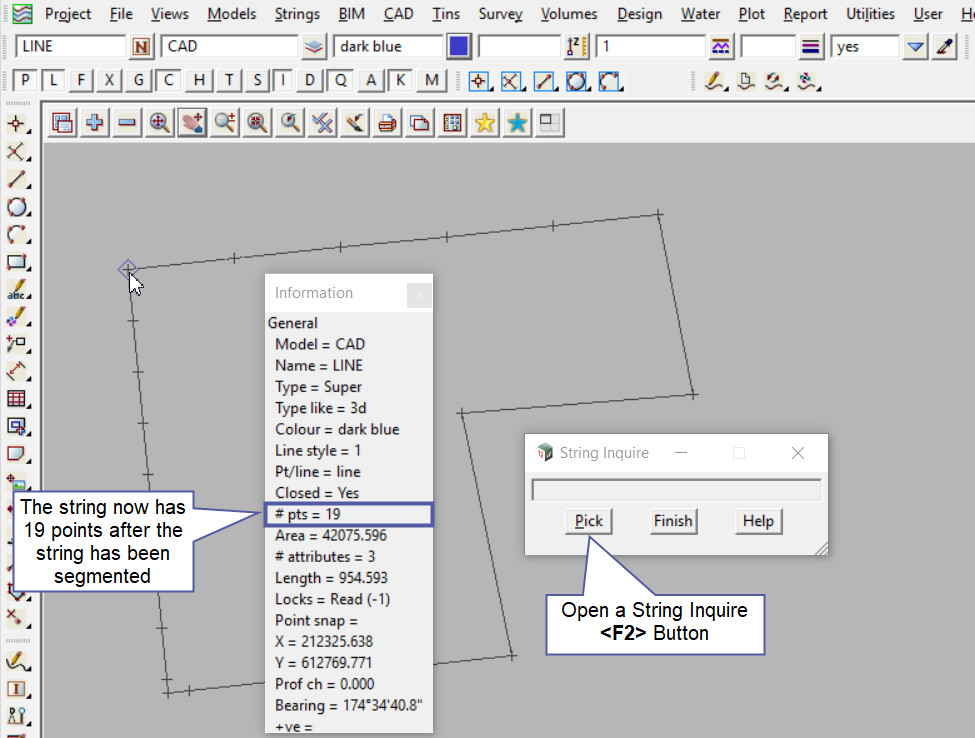

After the <Process> Button has been hit the new points will be created.[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_single_image image=”1853″ img_size=”full”][/vc_column][/vc_row][vc_row][vc_column][vc_separator border_width=”5″][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]Using a String Inquire the string can be checked to see that all the segmented points have been created in the string, as it now has 19 points, from the original 6 points.[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_single_image image=”1857″ img_size=”full”][/vc_column][/vc_row][vc_row][vc_column][vc_separator border_width=”5″][/vc_column][/vc_row]
