Pre-Start Checklist
- Check with C.R. Kennedy that your Leica Instrument has the 3rd Party GEOCOM Module licence activated. This allows the Leica Instrument to use 3rd Party applications like 12d Field and provides the correct communications for power searching etc.
- Have the RH16 Radio Handle connected to the top of the Leica Instrument. This allows the use of long-range bluetooth.
- The tablet has the Codemeter Dongle Drivers installed, search Codemeter in the 12d Wiki for the correct post to download the dongle drivers.
- The Codemeter Dongle has been certified within the past 60 days, again search the 12d Wiki for the correct post on how to certify your dongle.
- The tablet has the latest version 12d Model installed on the tablet.
- The 12d Model Nodes file is in the correct location and not expired. Usually C:\12d\15.00 or C:\12d\14.00
- Run a test – Open up the 12d Model project and go into Survey => 12d Field => 12d Field and set the instrument as the TPS Simulator to make sure 12d Field is running before you begin with the connection.
- Ensure that Windows updates are turned OFF (or done after hours) while not using 12d Field as Windows has been known to minimise resources (Bluetooth) before and during a scheduled update.
[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_separator border_width=”5″ css=””][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]
Leica Instrument
Turn your Leica Instrument ON and Level it up.

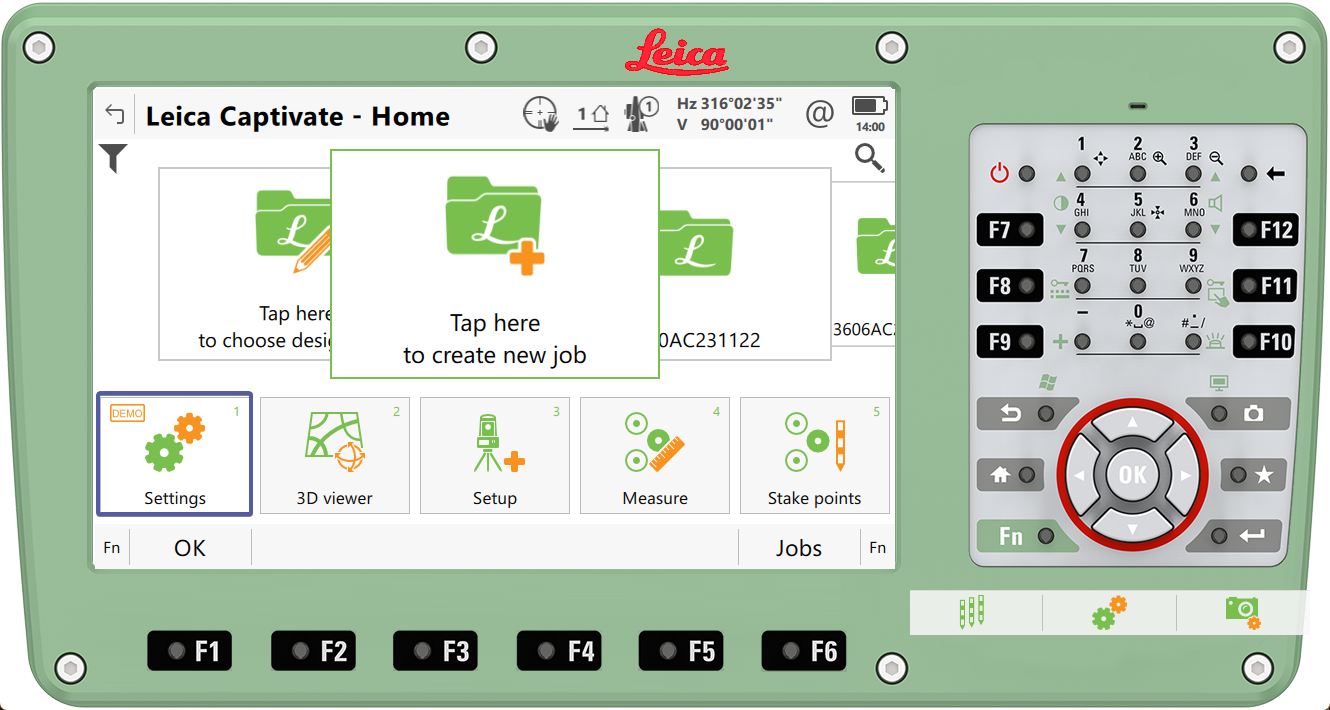

Once turn ON, select “Settings” from the rolling widget located at the bottom left hand corner of the instrument screen.[/vc_column_text][vc_single_image image=”12300″ img_size=”full” alignment=”center” css=”.vc_custom_1740538868560{padding-bottom: 12px !important;}”][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]

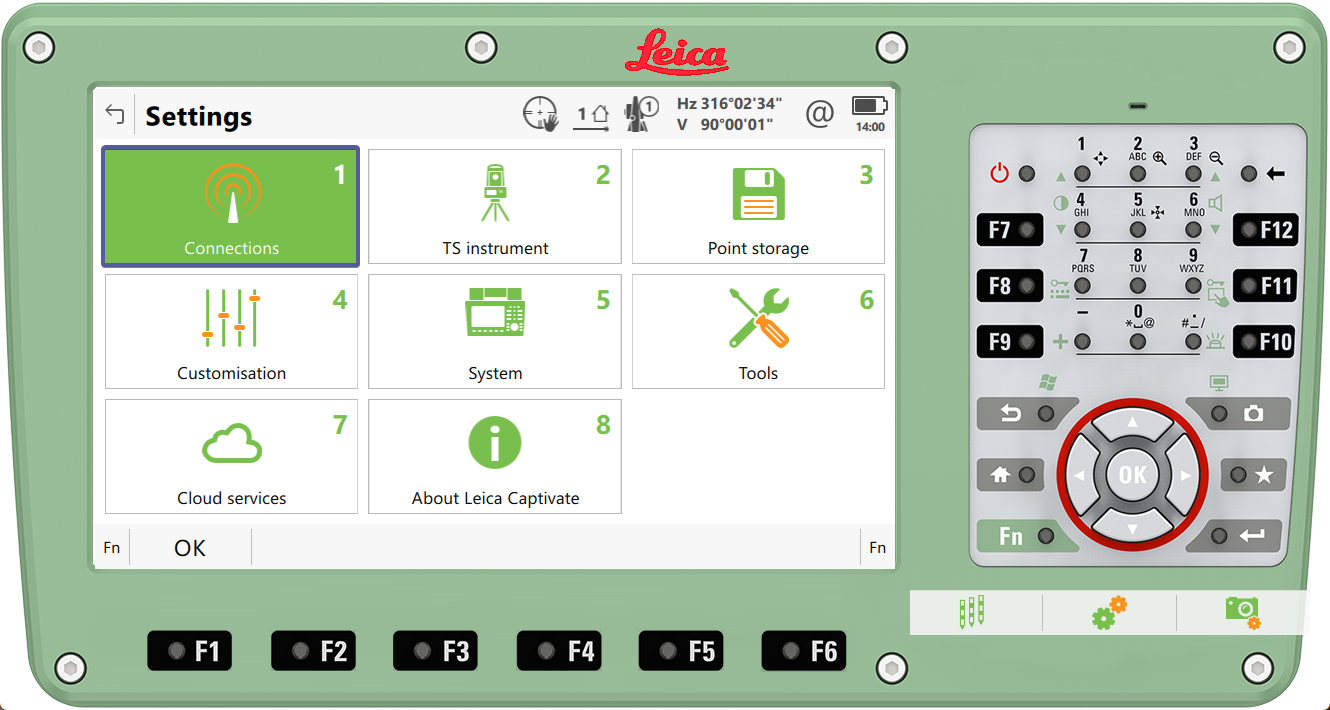

Then select “Connections”[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_single_image image=”12301″ img_size=”full” alignment=”center” css=””][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]

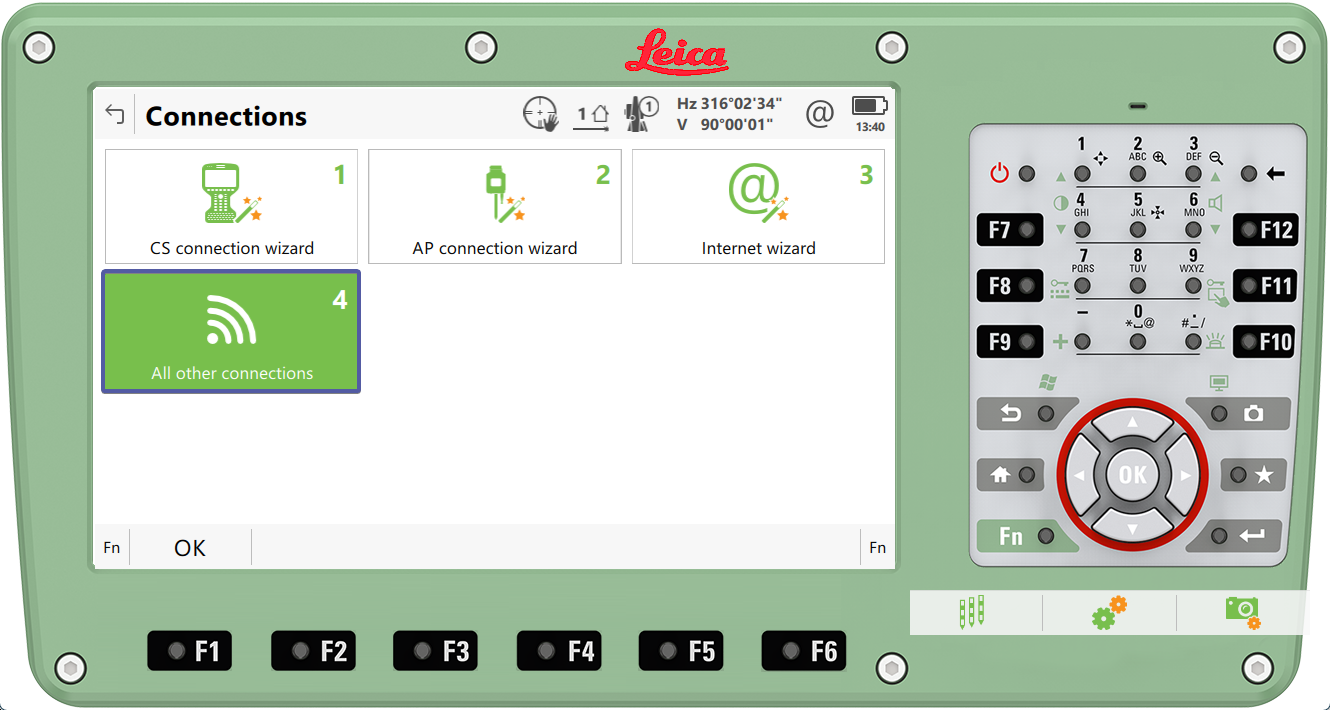

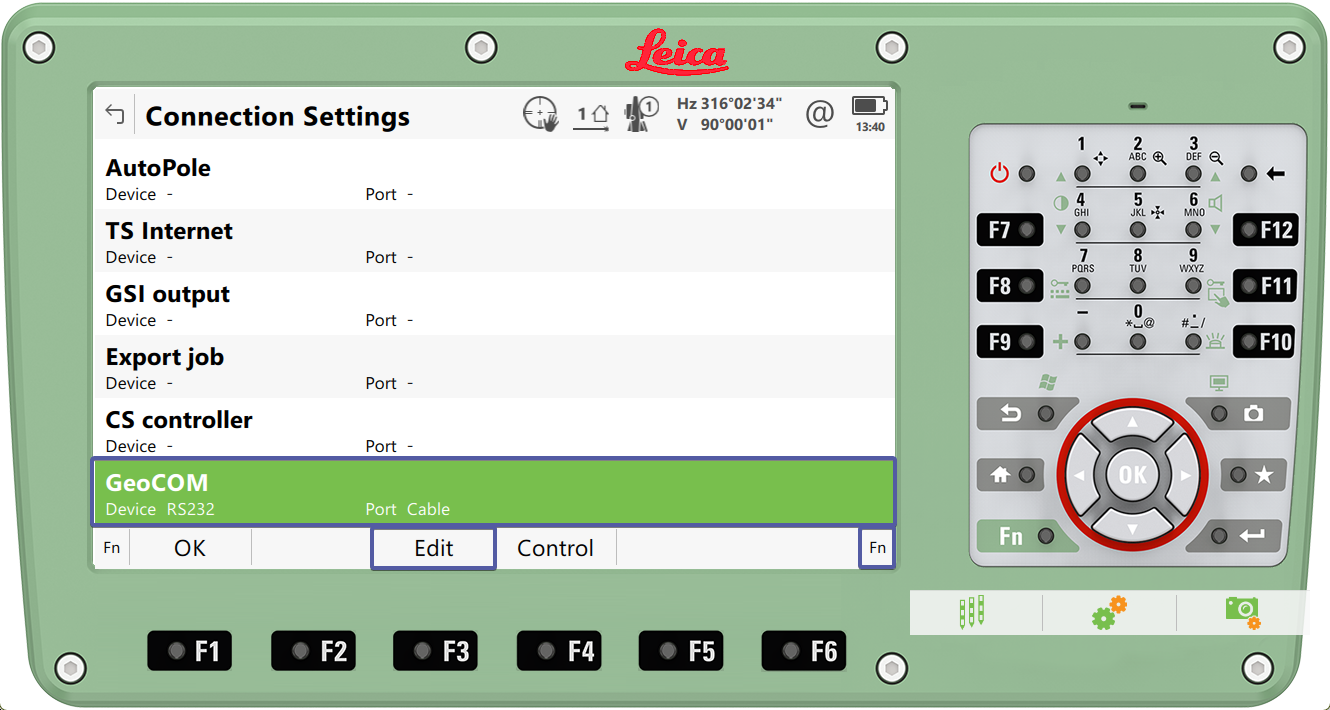

Select “All Other Connections”[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_single_image image=”12289″ img_size=”full” alignment=”center” css=””][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]Scroll down the list and select GeoCOM.
You might need to press the Fn icon to bring up the “Edit” option at the bottom of the display.[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_single_image image=”12290″ img_size=”full” alignment=”center” css=””][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]

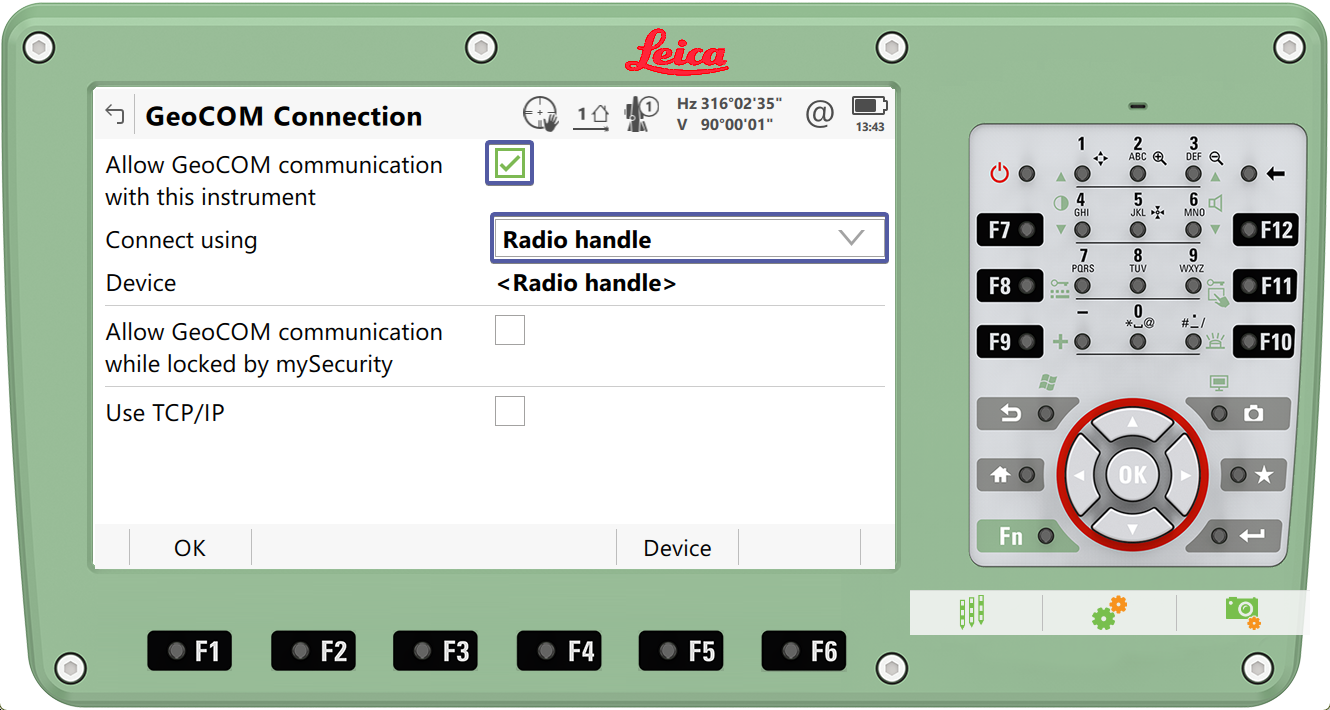

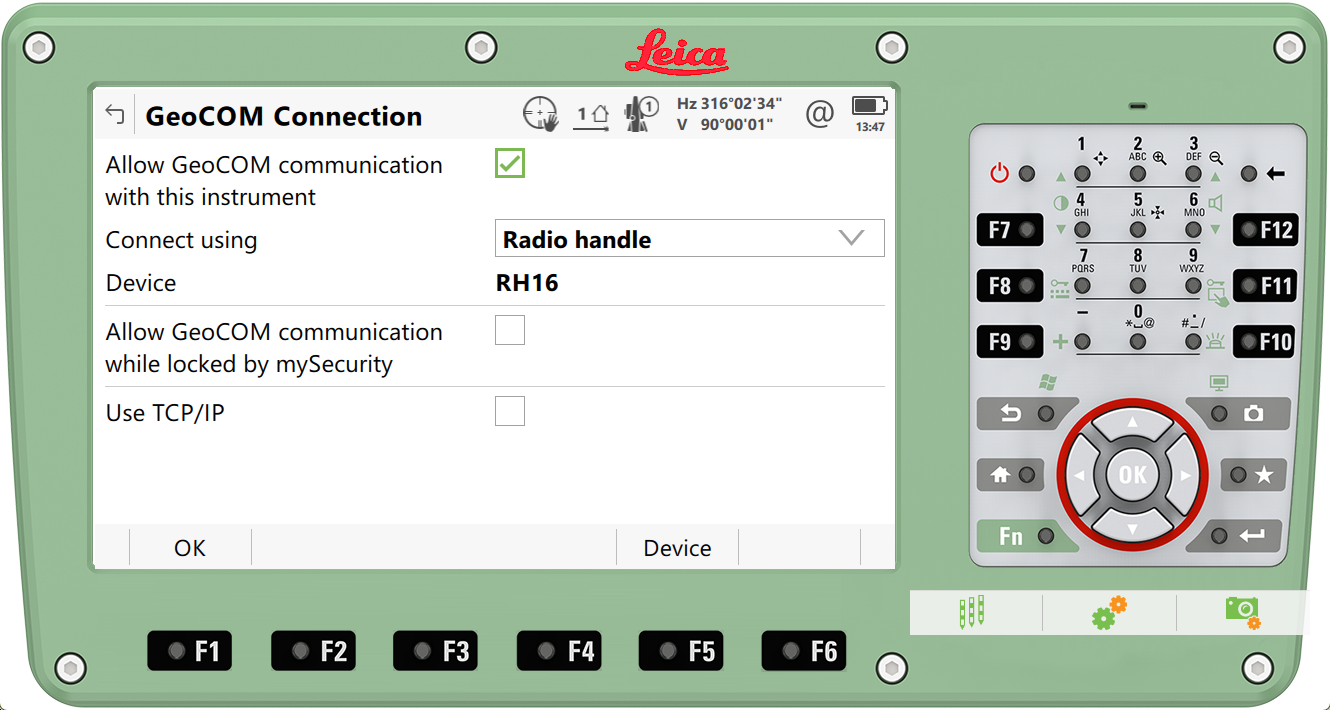

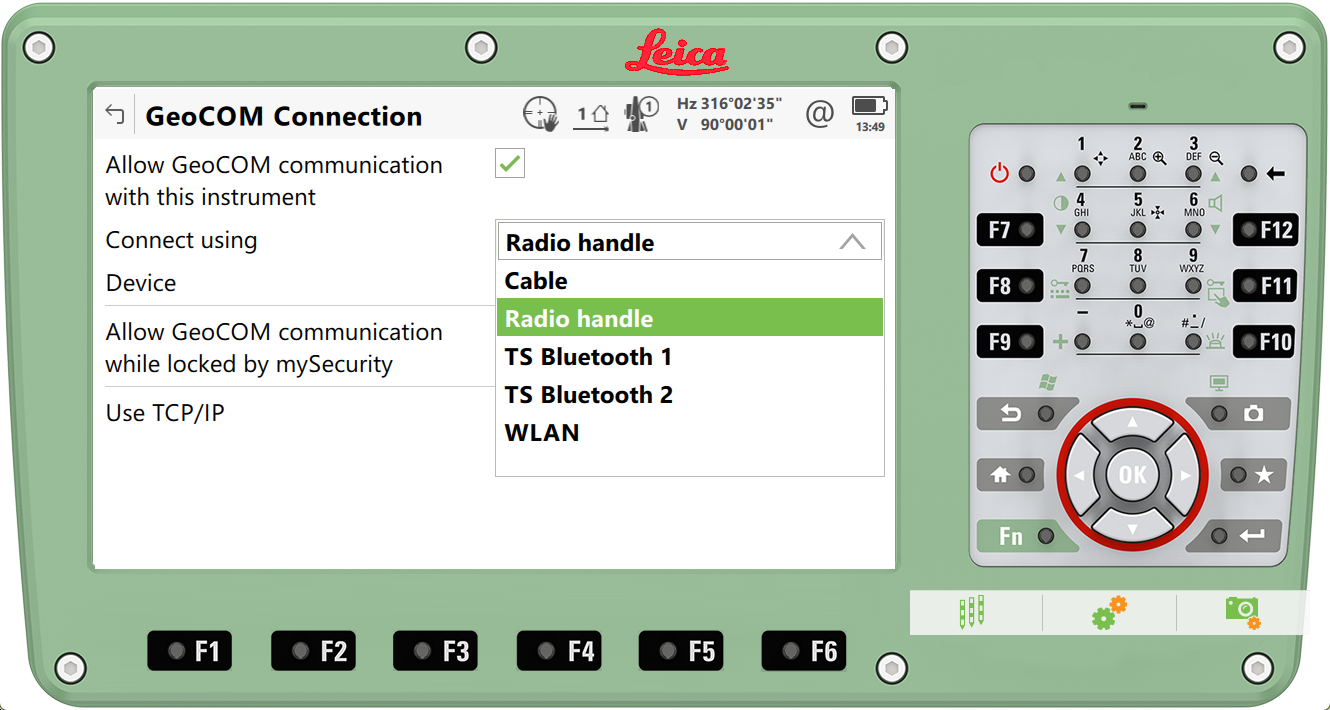

Tick on “Allow GeoCOM communication with this instrument.

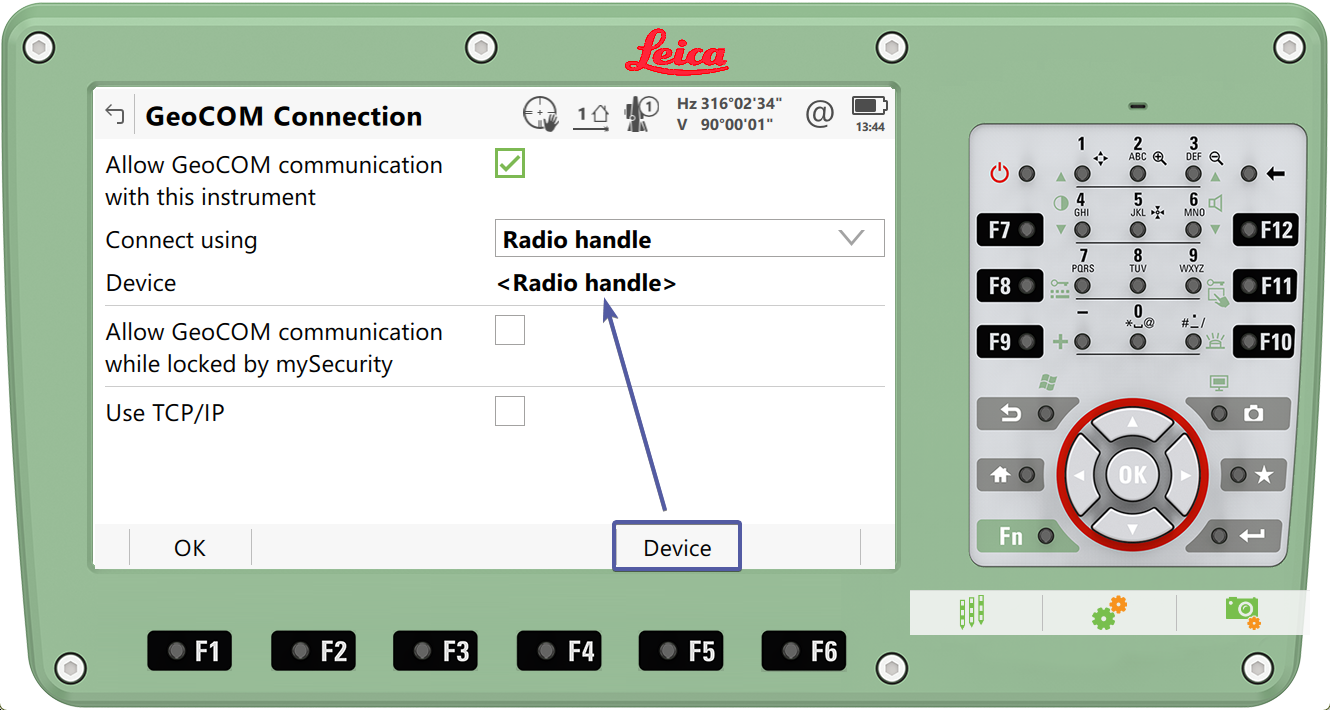

Go to Connect Device and select “Radio Handle” as you are connecting through the RH16 radio handle.[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_single_image image=”12291″ img_size=”full” alignment=”center” css=””][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]You now need to change the Device to the RH16.

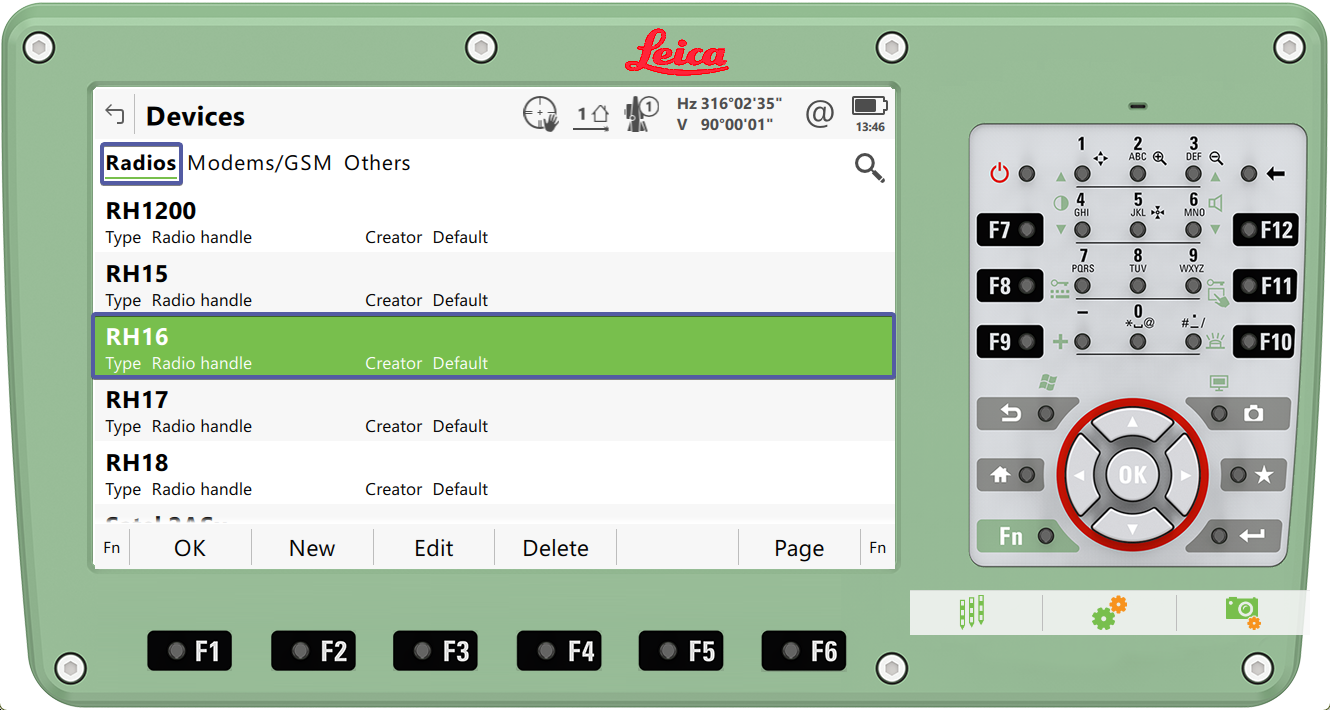

Select the Fn icon and select Device at the bottom of the display.[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_single_image image=”12292″ img_size=”full” alignment=”center” css=””][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]Select Radio at the top of the display.
This will bring up a list of all the Leica compatible radio’s.
Select “RH16″ from the list.[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_single_image image=”12293″ img_size=”full” alignment=”center” css=””][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]Select OK or press Enter.
The RH16 radio handle should be selected.[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_single_image image=”12294″ img_size=”full” alignment=”center” css=””][/vc_column][/vc_row][vc_row][vc_column][vc_column_text css=””]Press OK then go back to the default home screen.[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_single_image image=”12295″ img_size=”full” alignment=”center” css=””][vc_separator border_width=”5″ css=””][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]For troubleshooting some of the other connections are handy.
Cable – Can be used with an RS232 Cable to detect if the problem is to do with the instrument or the radio handle as it will bypass using the radio handle and bluetooth connections.
TS Bluetooth – Can be used to test the bluetooth connection using the standard in-built short range (up to 15m) bluetooth connection.[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_single_image image=”12296″ img_size=”full” alignment=”center” css=””][/vc_column][/vc_row][vc_row][vc_column][vc_separator border_width=”5″ css=””][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]
Tablet Bluetooth Setup
[/vc_column_text][vc_column_text css=””]Make sure the RH16 radio handle is up, and lights are on so you know it is ready to transmit data.

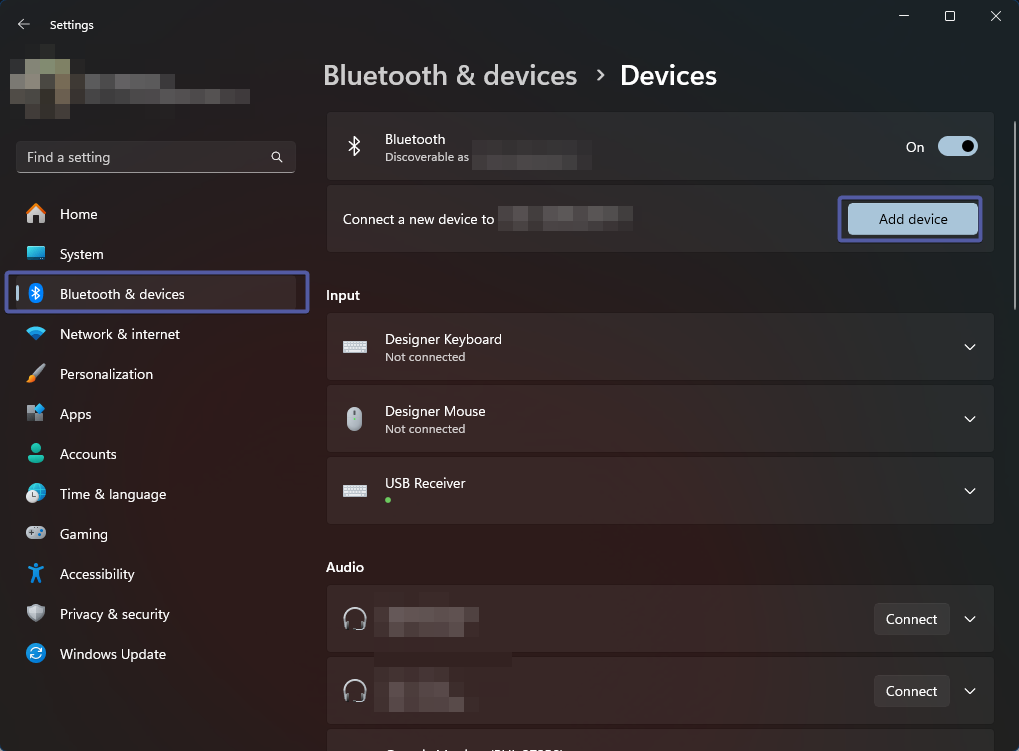

Login to tablet and let Windows load up and go to your Windows Settings => Bluetooth & devices => Devices and select “Add device”[/vc_column_text][vc_single_image image=”12312″ img_size=”full” alignment=”center” css=””][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]This will then search for all bluetooth devices including the RH16 radio handle.
You should see a device called RHxxxxx as this is the RH16 Radio Handle and NOT the short range bluetooth on the instrument which is shown as TSxxxxx or MSxxxxxx depending on whether you are using a TS15,16 or MS50,60.
xxxxxx is generally the serial number of the instrument.
Select this device and connect.[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_separator border_width=”5″ css=””][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]
12d Field
Start your 12d Model Project and let it load up.

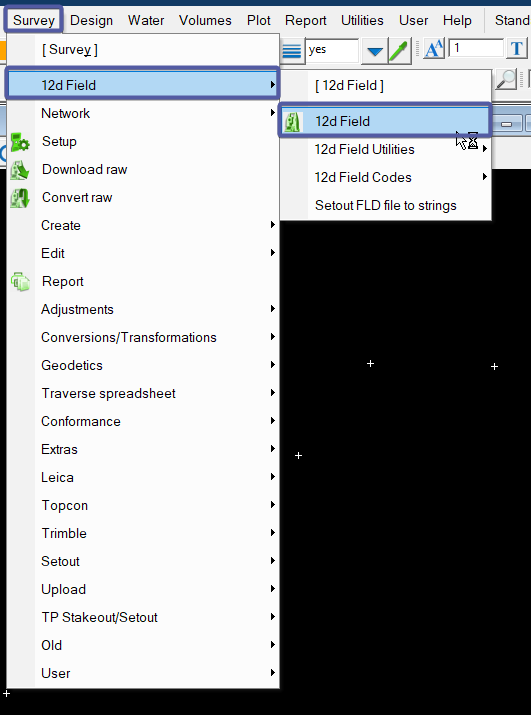

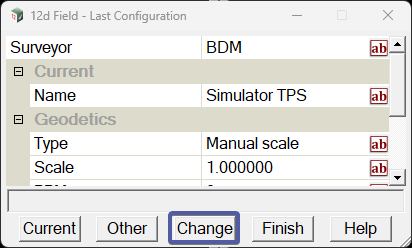

To start 12d Field go to Survey => 12d Field => 12d Field[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_single_image image=”12314″ img_size=”full” alignment=”center” css=””][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]The 12d Field Configuration panel will open, it will be showing the last configuration that you used,

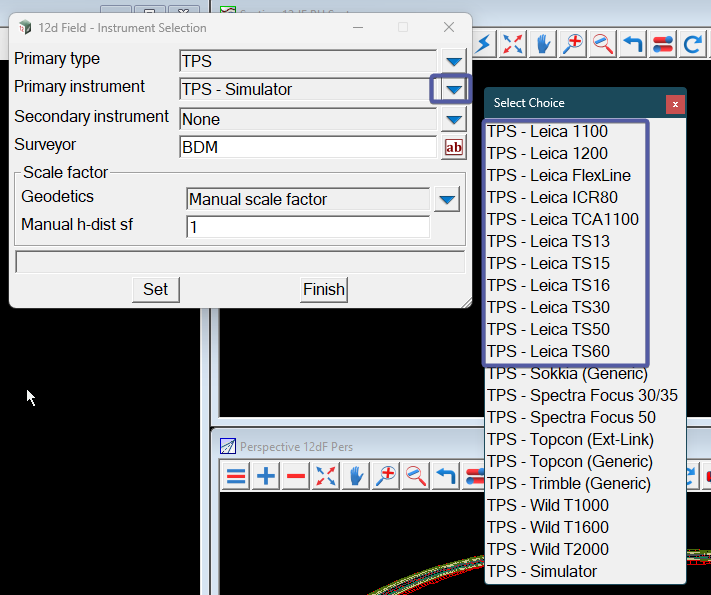

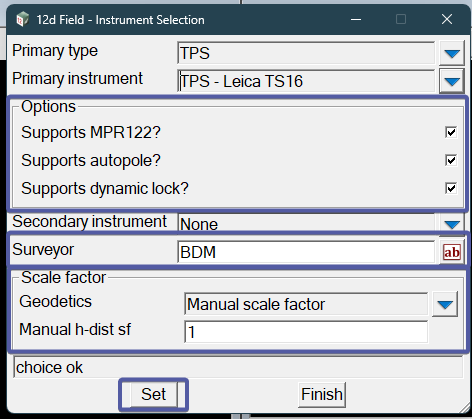

Click on “Change” to bring up the instrument selection list.[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_single_image image=”12315″ img_size=”full” alignment=”center” css=””][/vc_column][/vc_row][vc_row][vc_column][vc_column_text css=””]Select the instrument from the dropdown list: TS15, TS16, MS50 (TS50) or MS60 (TS60).[/vc_column_text][vc_single_image image=”12328″ img_size=”full” alignment=”center” css=””][/vc_column][/vc_row][vc_row][vc_column][vc_column_text css=””]Select the appropriate options for your hardware (see 12d Model Reference Manual for details).
Type in the Surveyor’s initials or name.
Set the correct scale factor to whatever the calculated scale factor you are given on site. eg 0.99996 as an example (you can change this later inside 12d Field if you need to).[/vc_column_text][vc_single_image image=”12318″ img_size=”full” alignment=”center” css=””][/vc_column][/vc_row][vc_row][vc_column][vc_column_text css=””]When the correct instrument is selected, press “Set”.
This will open the instrument ‘Configure’ panel for the instrument that you have chosen.

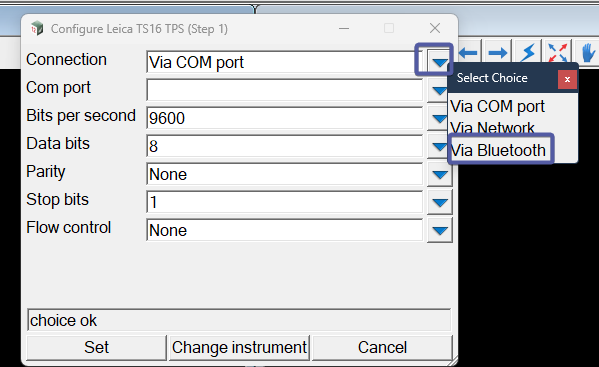

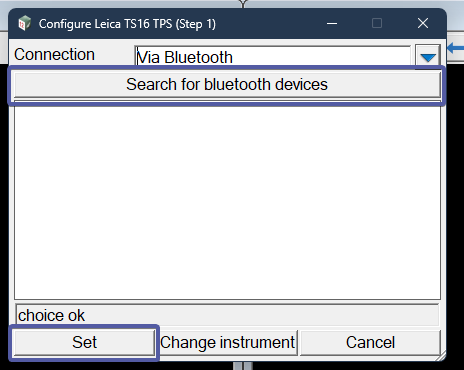

You will need to select “Via Bluetooth” as your connection type
Then on the next panel press the “search for bluetooth devices”
Once the Radio Handle becomes available in the list, select it and press Set.[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_single_image image=”12319″ img_size=”full” alignment=”center” css=””][vc_single_image image=”12322″ img_size=”full” alignment=”center” css=””][/vc_column][/vc_row][vc_row][vc_column][vc_column_text css=””]When you press ‘Set’ on the ‘Configure’ panel;
12d Field runs through 5 processes to establish the connection.
You want to see 5 boxes ticked.

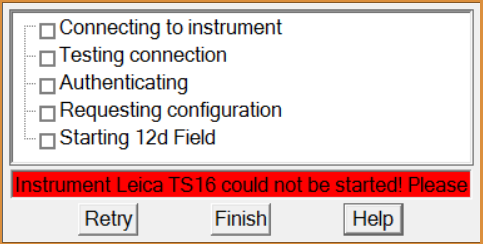

If you get an error when connecting (as shown below), you should check the 12d Model Output window for the reason.[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_single_image image=”12324″ img_size=”full” alignment=”center” css=””][/vc_column][/vc_row][vc_row][vc_column][vc_column_text css=””]You will have to go through the connection process from the start and make sure all the settings on the Leica Instrument and Tablet are correct.

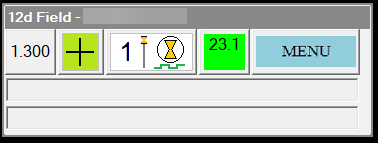

If you get 5 boxes ticked, 12d Field should start up and you should see the 12d Field Control Bar appear as shown below.[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_single_image image=”12325″ img_size=”full” alignment=”center” css=””][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]Good News! You are now ready to use 12d Field![/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_separator border_width=”5″ css=””][/vc_column][/vc_row]
