This option is used to Null (remove) any Triangle whose centroid is outside a selected polygon.

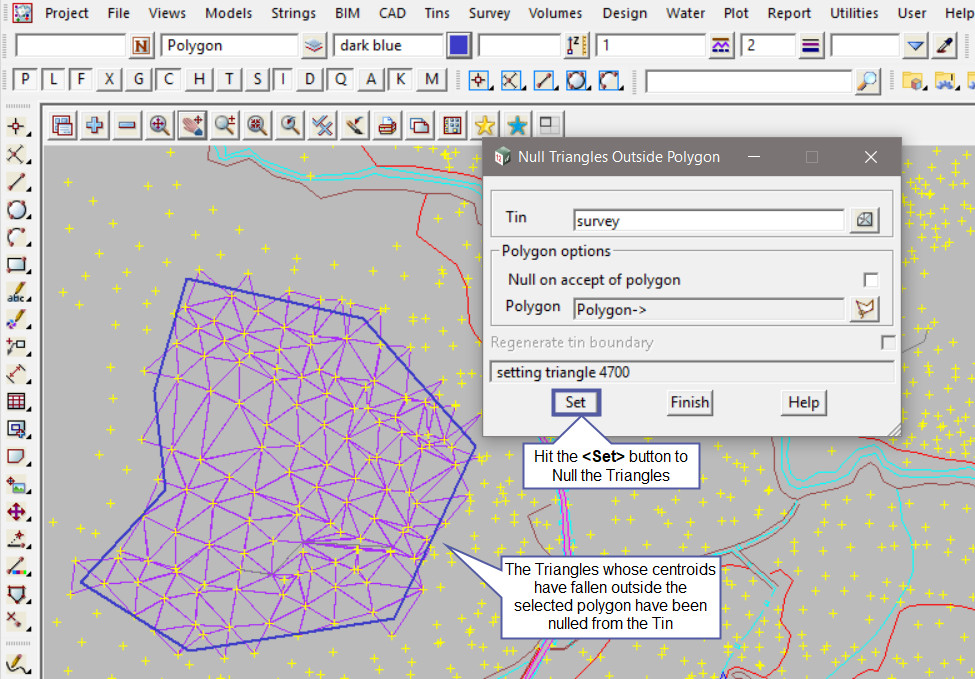

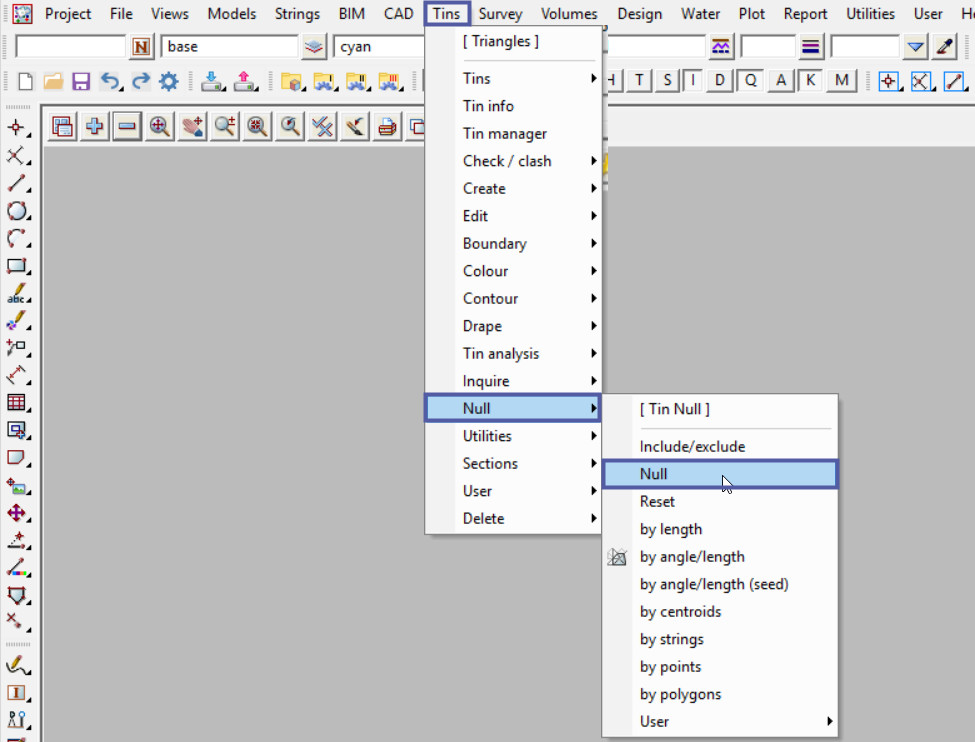

Continue down the page to see the Null Triangles Outside Polygon options.[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_separator border_width=”5″][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]To Null Triangles Outside Polygon, Use: Tins => Null => Null[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_single_image image=”2836″ img_size=”full”][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]
After a TIN has been created, it can be edited at any time and one of the editing tools is Null Triangles Outside of a Polygon.

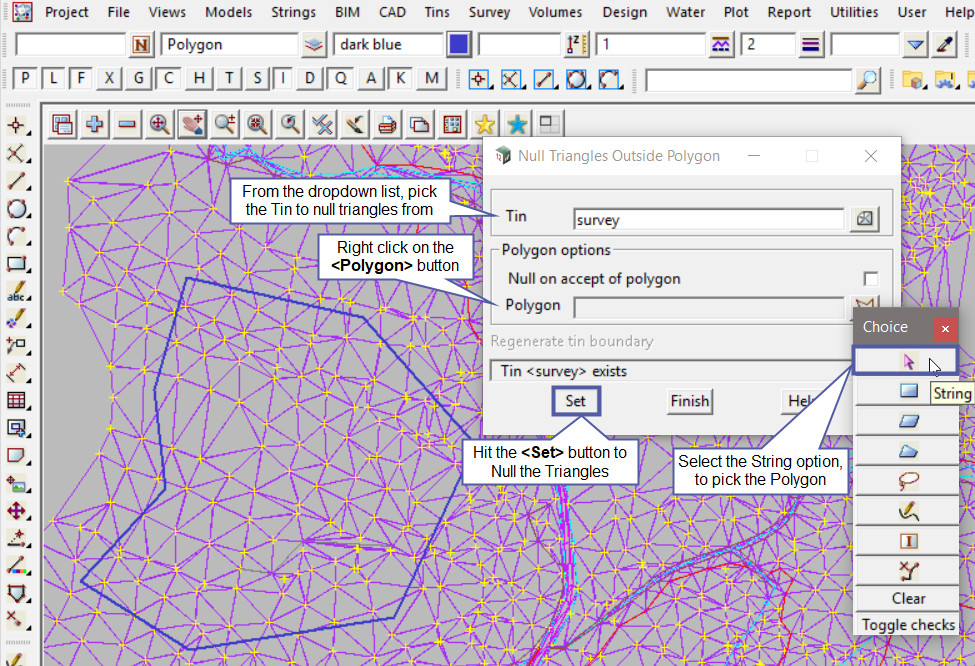

Firstly select the Tin to edit from the drop down list in this example we have selected ‘survey’.

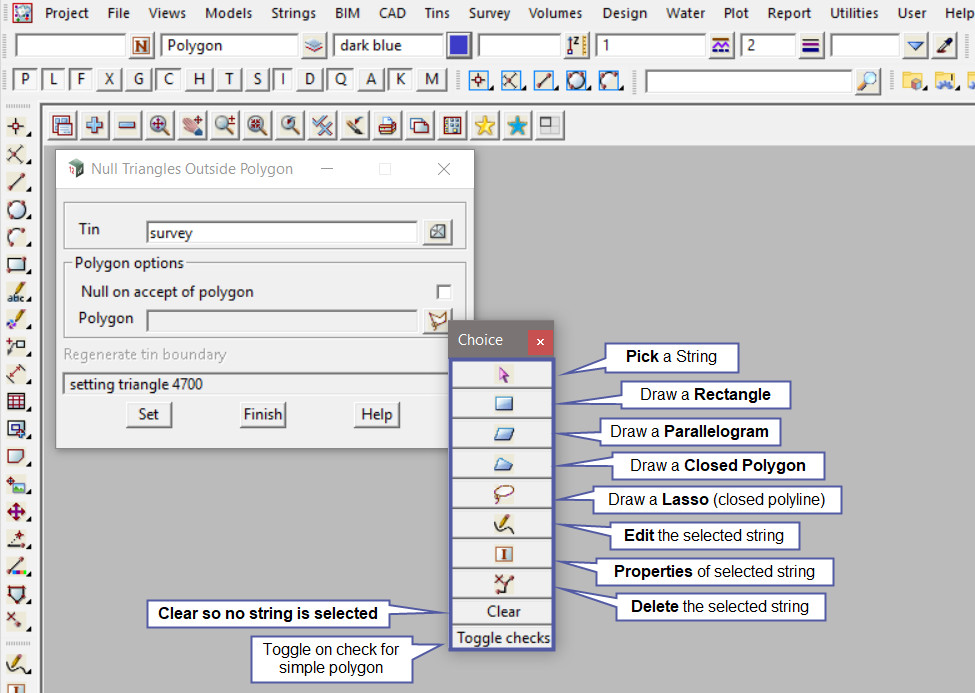

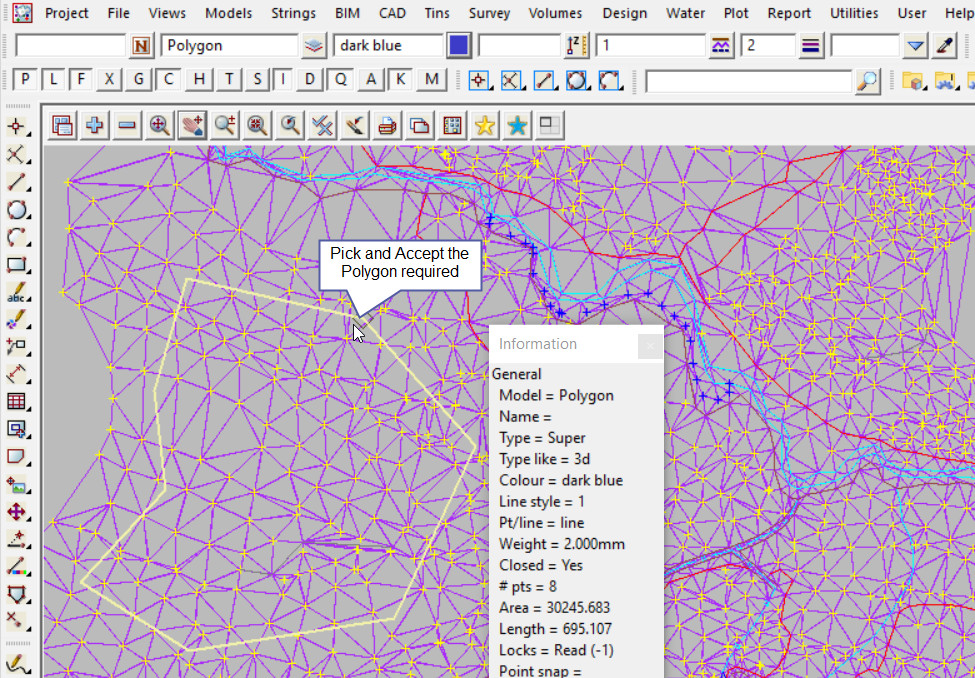

Right click on the <Polygon> Button and select the String option.
