This option is used to change the colour of the contours in a model by a height range file.

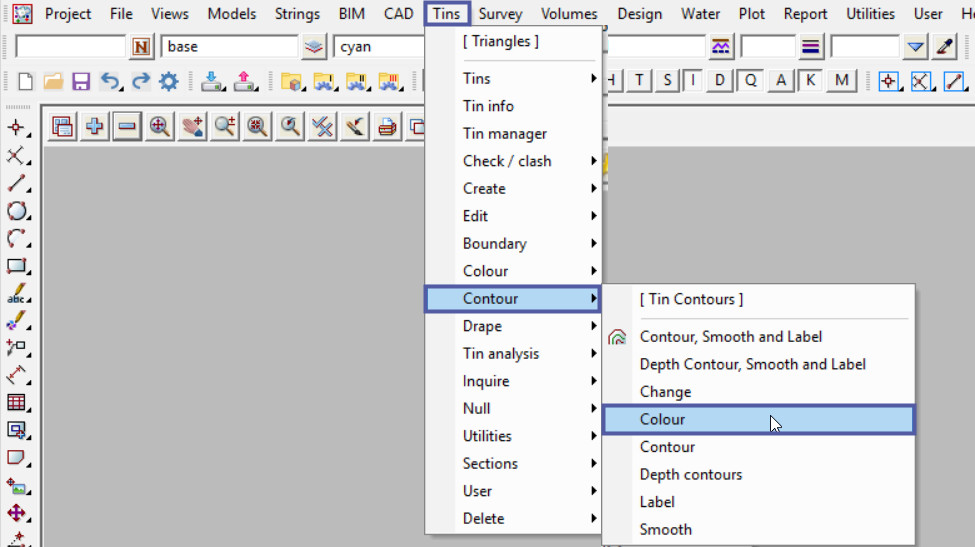

Continue down the page to see the Colour Contours Panel options.[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_separator border_width=”5″][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]To view the Colour Contours Panel, Use: Tins => Contour => Colour

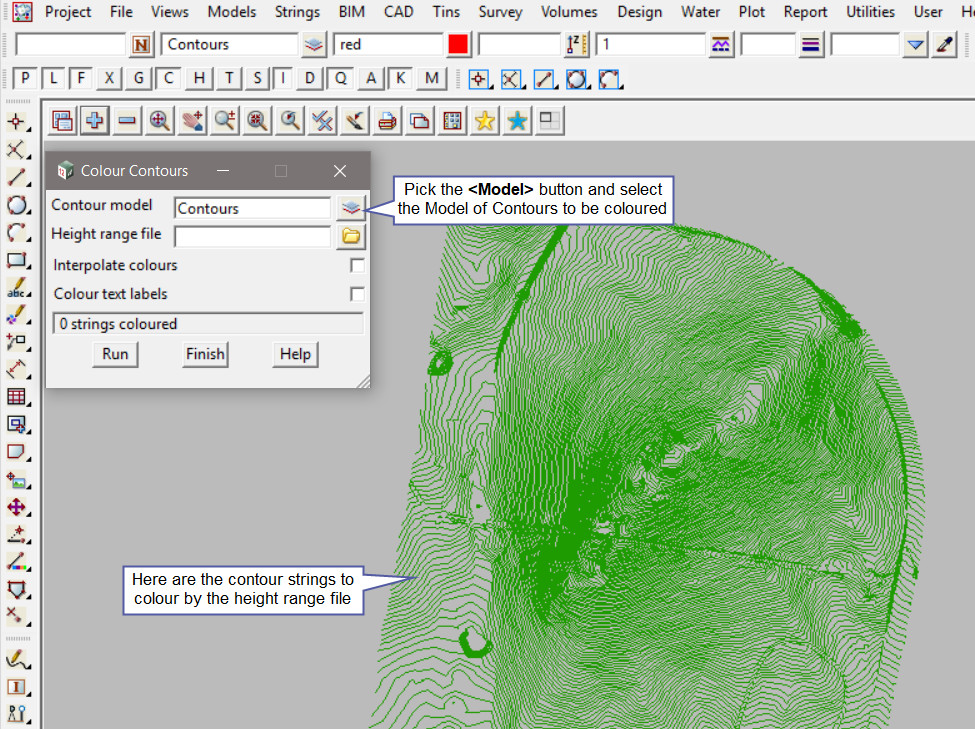

[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_single_image image=”3350″ img_size=”full”][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]Pick the <Model> button and select the Model of Contours to be coloured.
In this example all the contours are in one model and are a ‘dark green’ colour.[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_single_image image=”4487″ img_size=”full”][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]

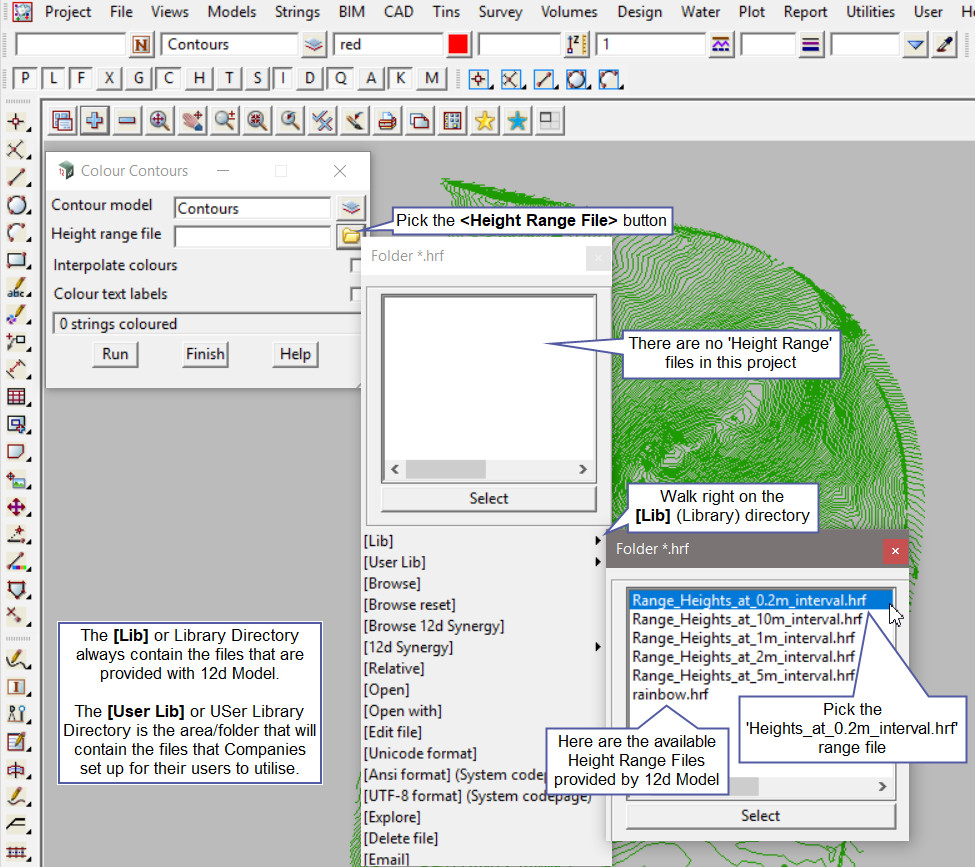

Pick the <Height Range File> button and then walk right on the [Lib] (Library) directory, and select the ‘Range_Heights_at_0.2m_Interval.hrf’ file.
Note: The [Lib] (Library) directory always contains the files that are provided with the 12d Model program. These files can be exactly what you are looking for and be used straight away, or a great example file that can be used to create the file required.

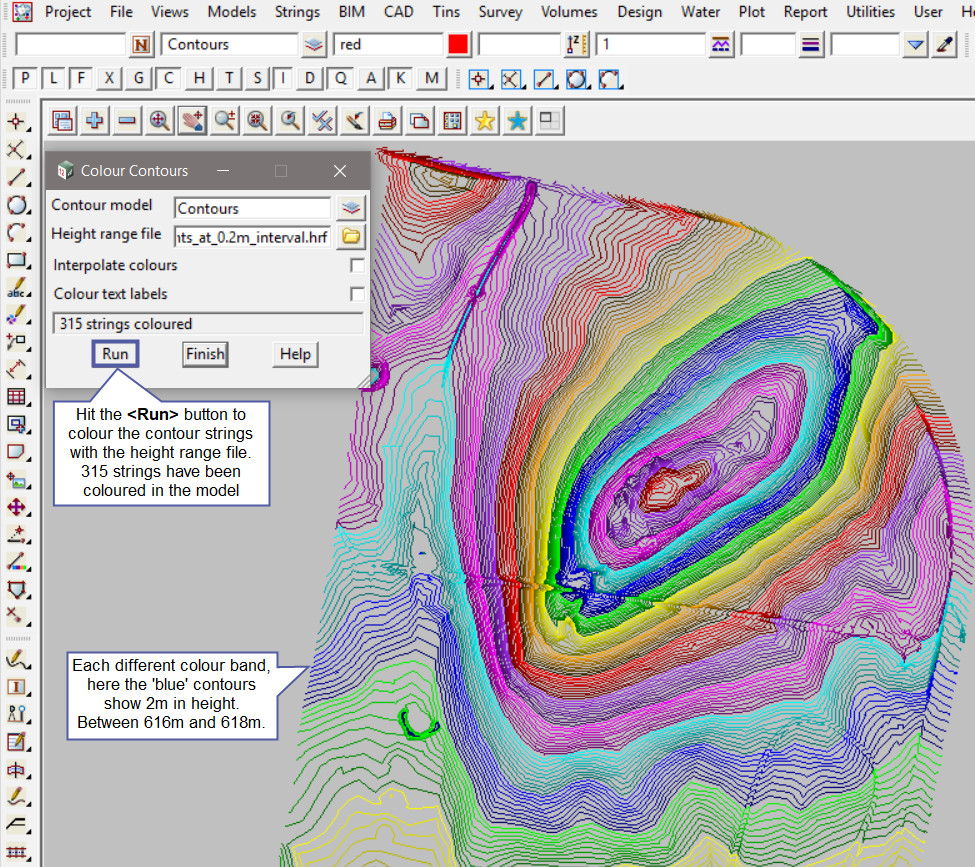

[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_single_image image=”4488″ img_size=”full”][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]Hit the <Run> button to colour the contour strings with the selected height range file.
The height range bands will colour the strings. Each different colour displayed is a graduated colour range for every 2m in height. The colours are listed in the height range file.[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_single_image image=”4489″ img_size=”full”][/vc_column][/vc_row][vc_row][vc_column][vc_separator border_width=”5″][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]
Height Range File Panel Example

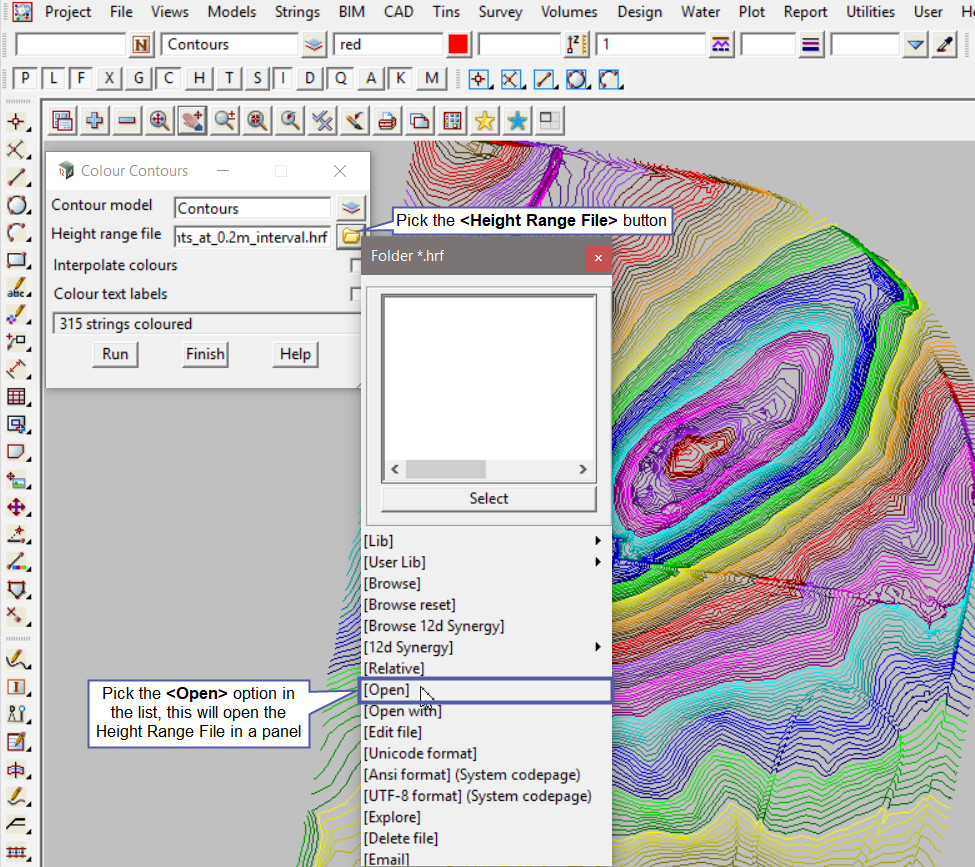

To open the Height Range File to view its contents, pick the <Height Range File> button and then select the [Open] option from the list.
[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_single_image image=”4492″ img_size=”full”][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]

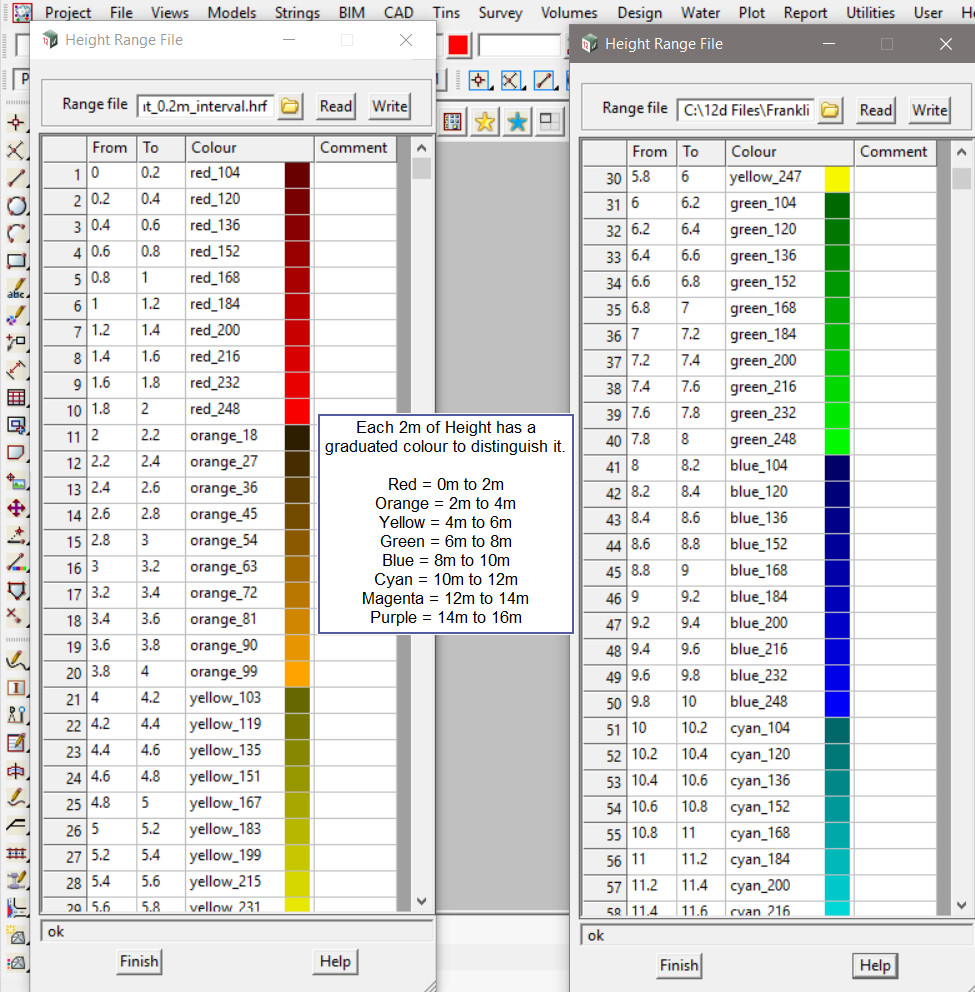

The Height Range File panel will open and have the file shown.
In this example there are 112 different colour graduations to differentiate between every 2 meters in height between level 0 and 224.
If you would like to learn more about the Height Range File Panel and how to utilise it,
Visit this post: Height Range File
