Reading 12da into 12d Model

[vc_row][vc_column][vc_column_text css=””]Data to create a tin (sometimes called a mesh, or a triangulation) can come from a variety of sources:

  • 12d ascii (from 12d Model)
  • Simple list of coordinates and elevations (x,y,z format)
  • AutoCAD .dxf or .dwg
  • GENIO format (from MOSS or MX)
  • CivilCAD (.as5)
  • Microstation .dgn

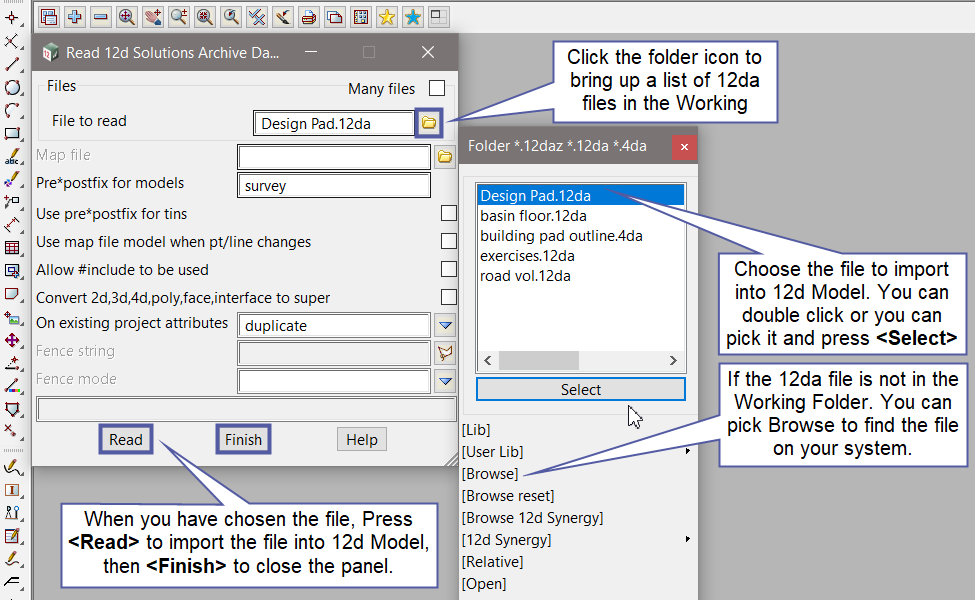

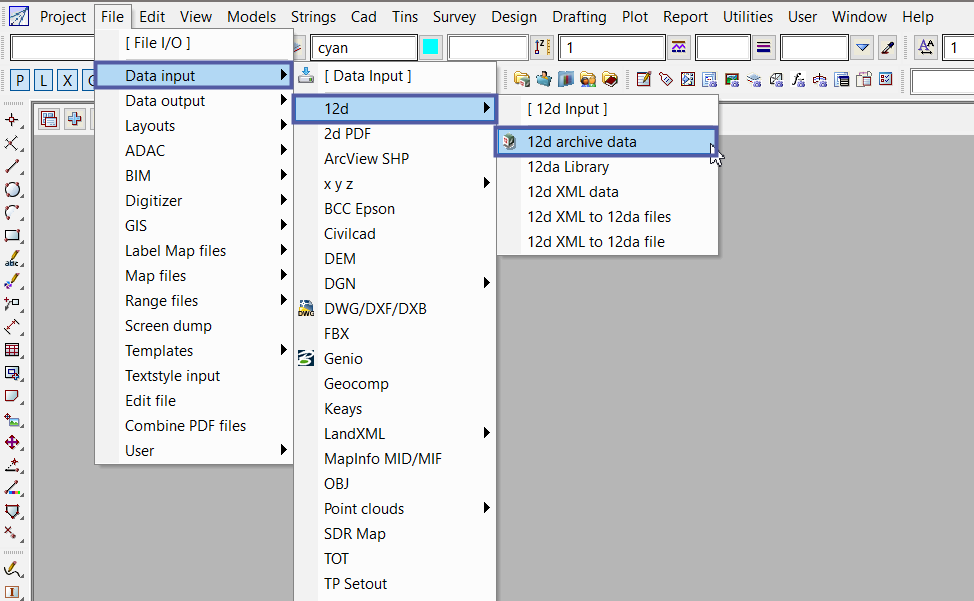

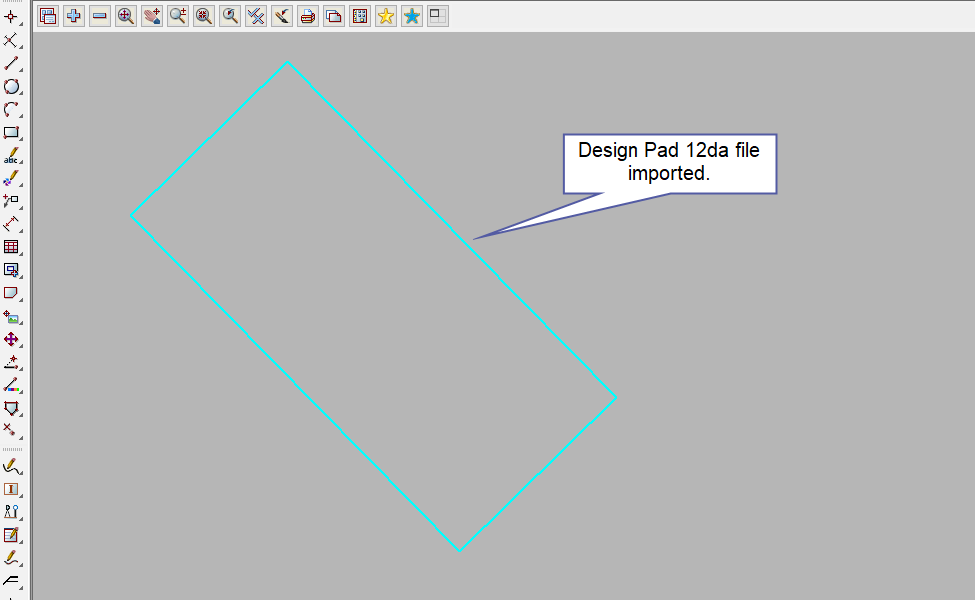

[/vc_column_text][vc_column_text]For this instance, we will read in 12d ascii data to 12d Model. (Design Pad.12da)[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]File I/O => Data Input =>12d => 12d archive data[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_gallery type=”flexslider_slide” interval=”5″ images=”1697″ img_size=”full” onclick=””][/vc_column][/vc_row][vc_row][vc_column][vc_gallery type=”flexslider_slide” interval=”5″ images=”1698″ img_size=”full” onclick=””][/vc_column][/vc_row][vc_row][vc_column][vc_gallery type=”flexslider_slide” interval=”5″ images=”1701″ img_size=”full” onclick=””][/vc_column][/vc_row][vc_row][vc_column][vc_separator border_width=”5″][/vc_column][/vc_row]
