This option is used to calculate and display the slope of triangles in a Tin at a cursor location.

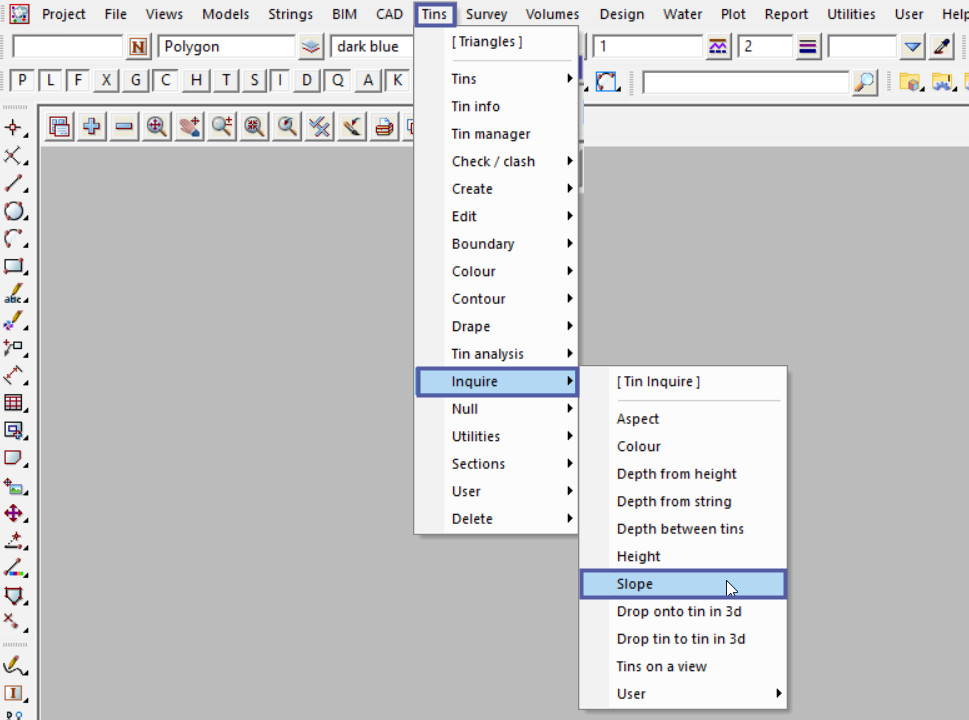

Continue down the page to see the Tin Slope Inquire Panel options.[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_separator border_width=”5″][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]To view the Tin Slope Inquire Panel, Use: Tins => Inquire => Slope
[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_single_image image=”3505″ img_size=”full”][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]

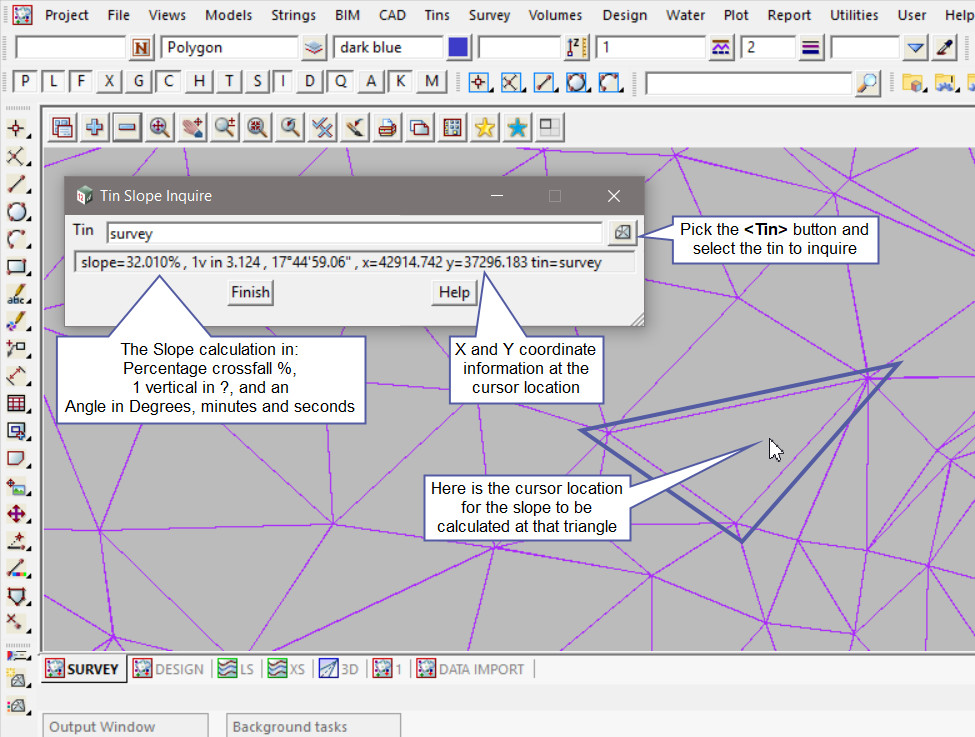

Pick the <Tin> button and select the tin required.

Move the mouse around the selected tin and see the panel display the slope of the triangle at the cursor location.The slope is calculated and displayed with three different ways:

  • Percentage Crossfall %
  • 1 vertical in ?
  • Angle in degrees, minutes and seconds

The panel will also display the X and Y coordinates for the cursor position.

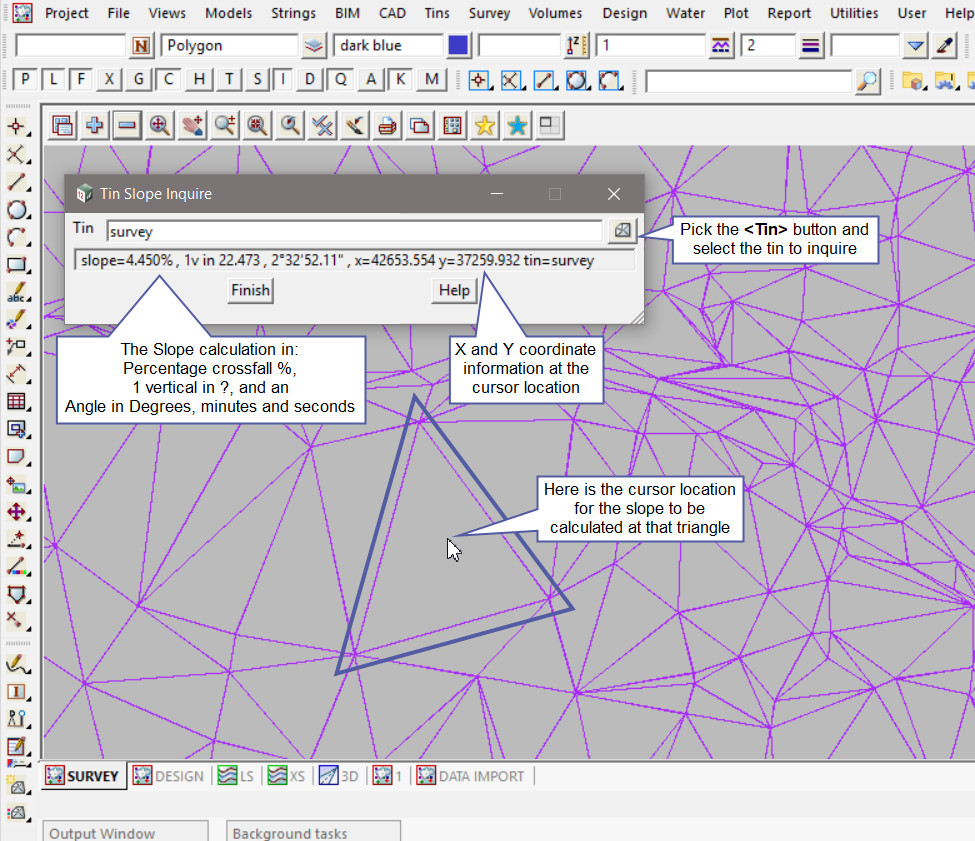

[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_single_image image=”3566″ img_size=”full”][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]As shown below the panel will update as the cursor location changes.[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_single_image image=”3567″ img_size=”full”][/vc_column][/vc_row][vc_row][vc_column][vc_separator border_width=”5″][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]

There are other Slope Analysis Tools available in 12d Model. Some of the options are colouring the Tin based on a slope range file, also calculating the Slope Analysis of a Tin.

If you would like to learn more about the Tin Slope Colour option and how to utilise it,

Visit this post: Tin Slope Colour

If you would like to learn more about the Slope Analysis Options and how to utilise them,

Visit this post: Slope Analysis Options
