Pagination. . . It’s a plotting thing![/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_separator border_width=”5″][/vc_column][/vc_row][vc_row][vc_column][vc_column_text css=””]Before trying to solve your pagination conundrum, the first thing to remember when plotting is that a Plot Scale of 1:1000 equates to 1mm = 1m

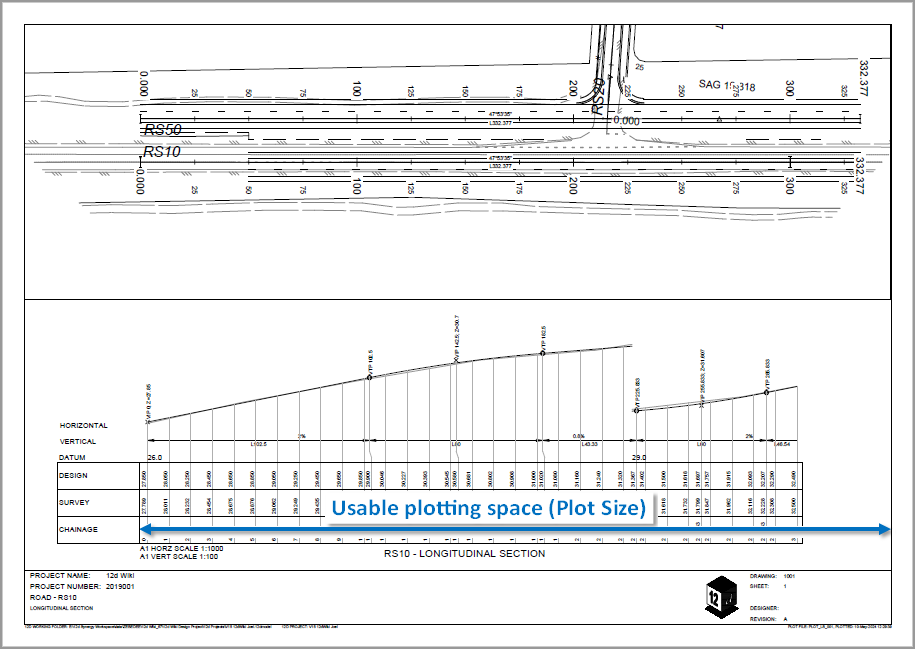

The second thing to know is the usable space on a drawing sheet. This is the available ‘Real Estate’ for the plot, excluding any margins, titles, notes, etc, and for this exercise will be referred to as the Plot Size.[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_single_image image=”11149″ img_size=”full” css=””][/vc_column][/vc_row][vc_row][vc_column][vc_separator border_width=”5″][/vc_column][/vc_row][vc_row][vc_column][vc_column_text css=””]To get the Pagination length, you then use;

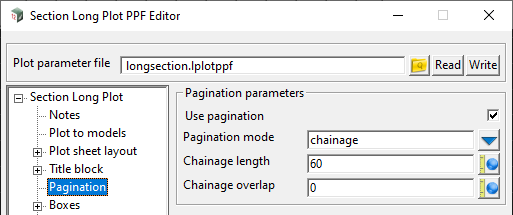

- ((Plot Scale / 1000) x Plot Size)
A typical A3 drawing sheet has ~300mm of plotting space. So for a 1:200 plot you get;
- ((200 / 1000) x 300) = Chainage Length: 60
Which gives you 60m of longsection per sheet.[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_single_image image=”11152″ img_size=”full” css=””][/vc_column][/vc_row][vc_row][vc_column][vc_separator border_width=”5″][/vc_column][/vc_row][vc_row][vc_column][vc_column_text css=””]To setup Staggered Datum’s – Using Staggered Datums
To solve Drawing Register errors – Understanding Drawing Register Errors[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_separator border_width=”5″][/vc_column][/vc_row]
