This tool is used to create CAD Points, located at all of a strings IPs (vertices).
The video below will show how to create a CAD Point at all String IPs.
Or continue down the page to see the CAD String IPs create options.[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_video link=”https://vimeo.com/1120004299″ css=””][/vc_column][/vc_row][vc_row][vc_column][vc_separator border_width=”5″][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]

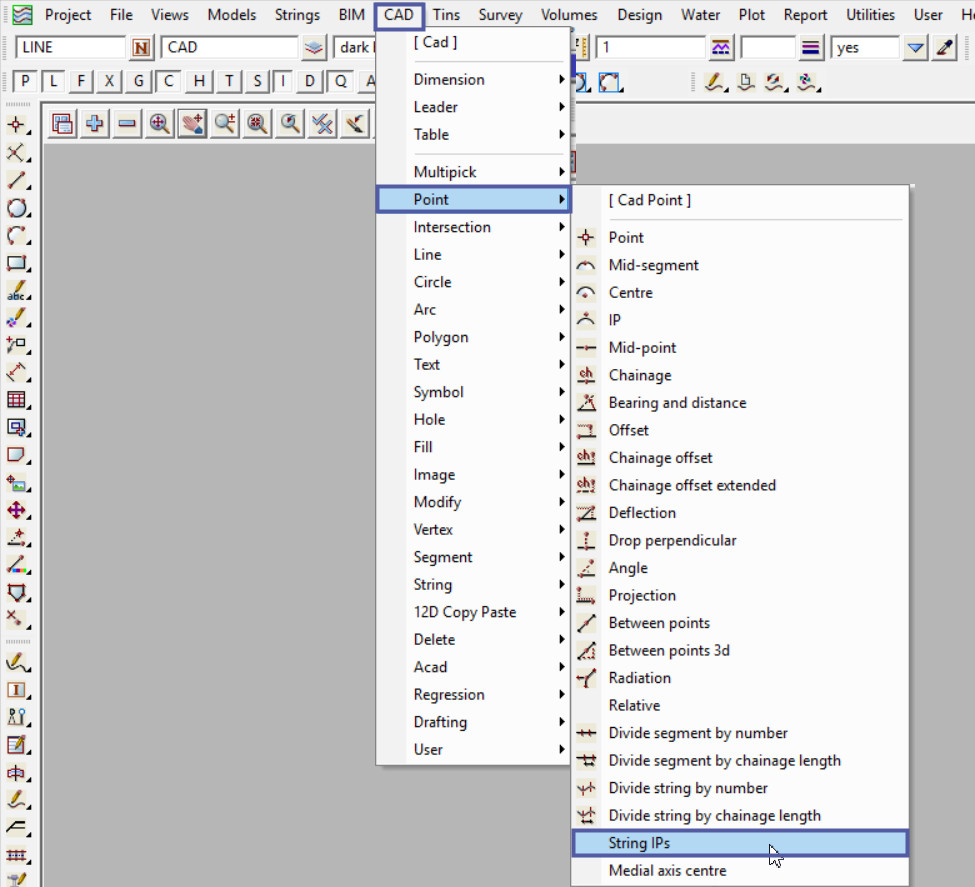

This CAD Point String IPs option is only found on the CAD Menu, as shown below. It is not an option on the Toolbar.
From the menu, Use: CAD => Point => String IPs
[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_single_image image=”1625″ img_size=”full”][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]
CAD Control Bar Options
The Point is created and placed using the details from the CAD Control Bar, these include,
String Name, Model, Colour, Z – Value, Linestyle, Weight and Tinable.
If you would like to learn more about the CAD Control Bar and how to utilise it,
Visit this post: CAD Control Bar – How to Utilise It
[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_separator border_width=”5″][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]This option is used to create new one point strings at another strings IPs (Intersection Points).

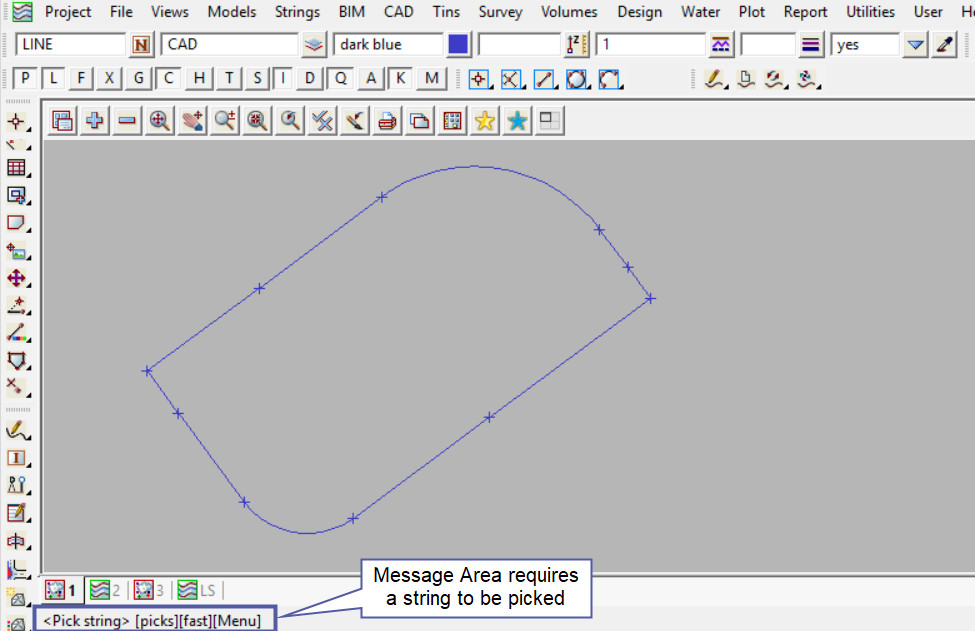

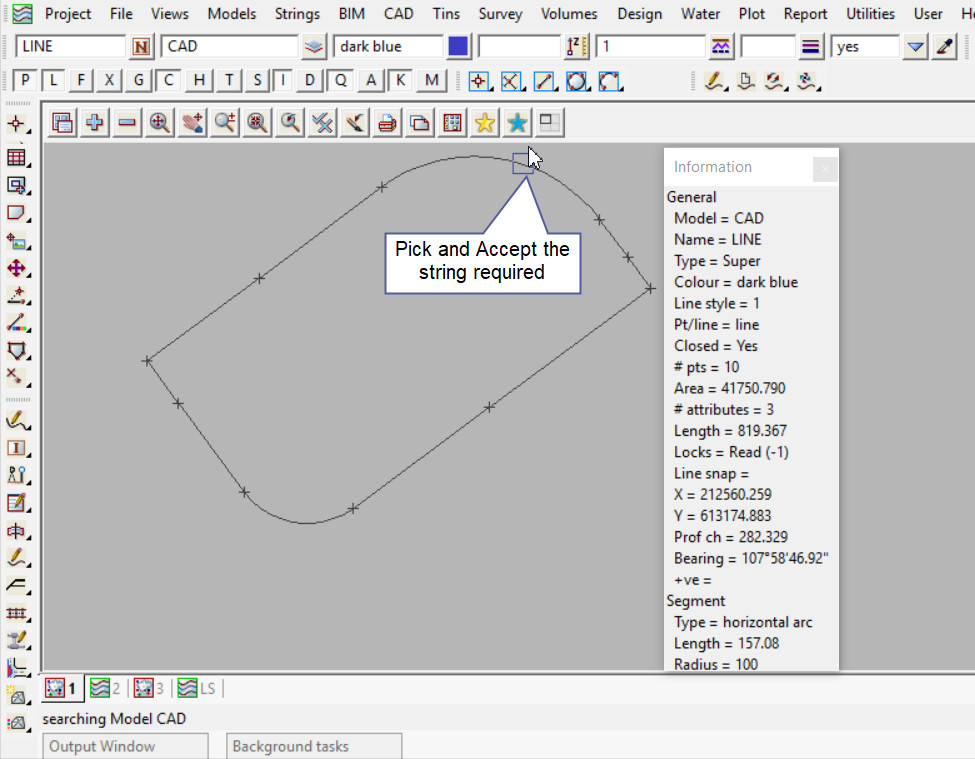

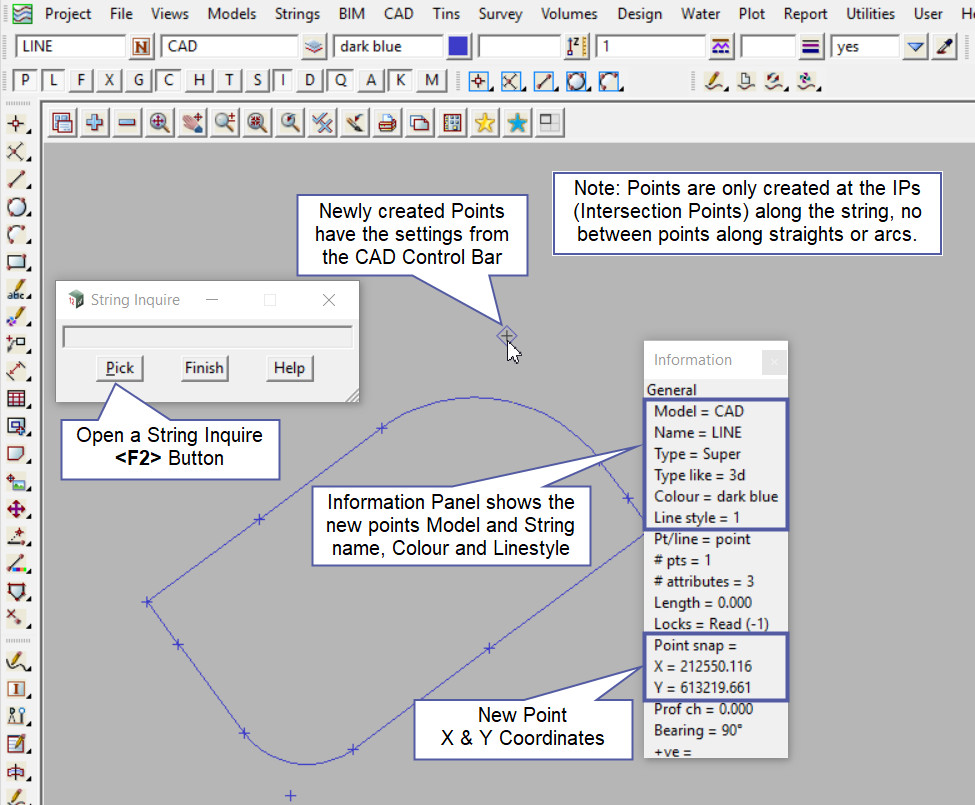

Firstly a string is required to be picked.[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_single_image image=”1902″ img_size=”full”][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]Pick and accept on the string.[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_single_image image=”1903″ img_size=”full”][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]The IPs are created as the string is accepted.

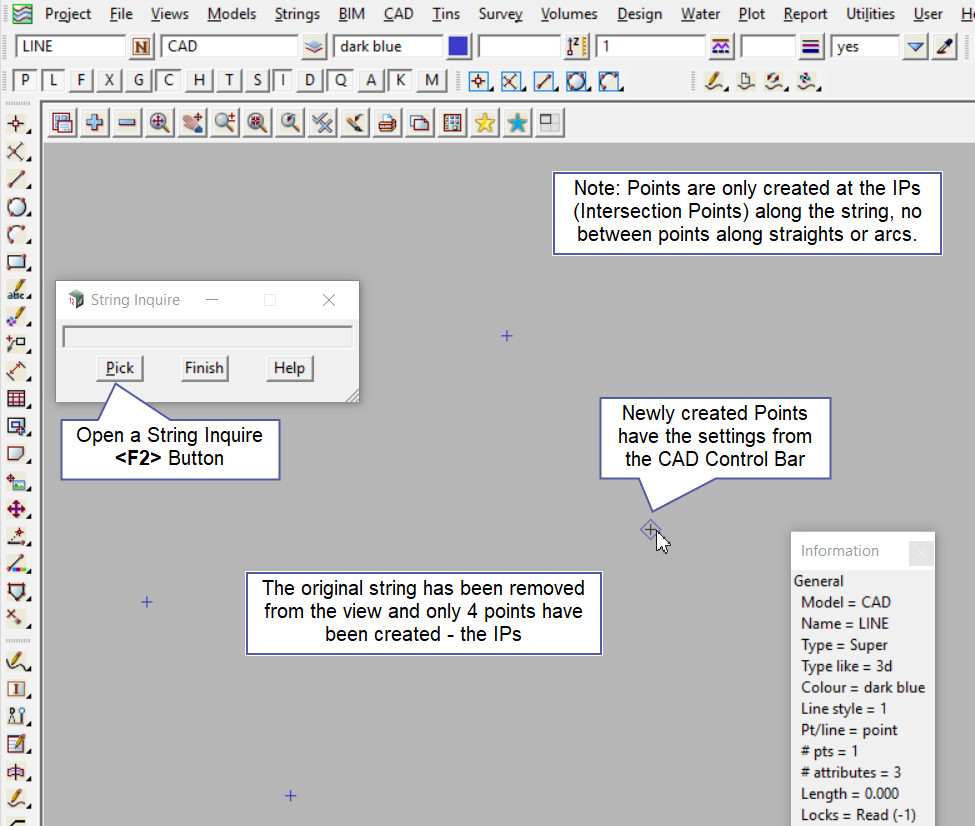

Note: Points are only created at the IPs (Intersection Points) along the string, no between points along straights or arcs.[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_single_image image=”1908″ img_size=”full”][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]The image below shows the original string removed from the view and only the 4 IPs that have been created are on the screen, no between points as stated before.[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_single_image image=”1907″ img_size=”full”][/vc_column][/vc_row][vc_row][vc_column][vc_separator border_width=”5″][/vc_column][/vc_row]
