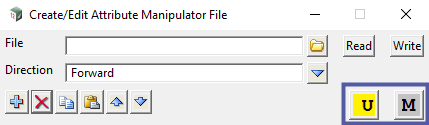

What are those <U> and <M> buttons used for?
They are a quick way to add Attribute Manipulator Rules;
- <U> – Pick attribute to Use
- <M> – Pick attribute to Modify
[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_single_image image=”9359″ img_size=”full”][/vc_column][/vc_row][vc_row][vc_column][vc_separator border_width=”5″][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]To create an Attribute Manipulator file, refer to: 12dwiki.epicsites.com.au/attribute-manipulator
U – Pick attribute to Use
Allows you to pick all of the attributes to be used. A rule under Attribute to Use will be created for each attribute, and set to “ignore”. After this, you then just go through and complete the Modify details.

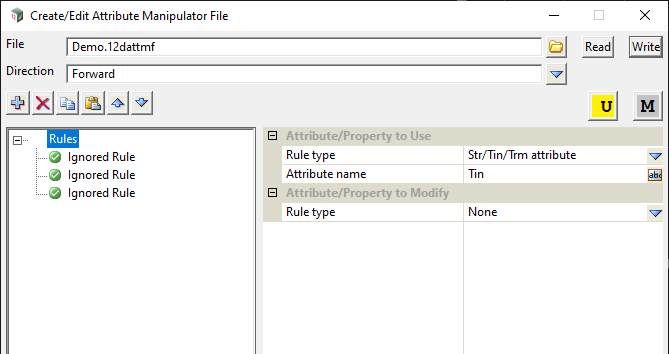

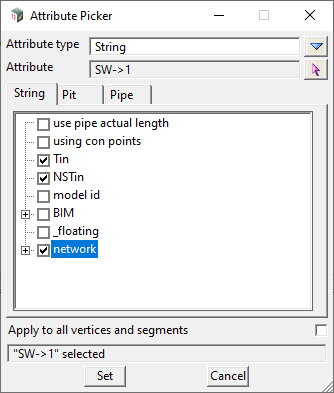

Create a new Rule, and click <U>. On the Attribute Picker panel, select a string, then select the attributes you want to use.[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_single_image image=”9378″ img_size=”full”][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]After clicking <Set> a new Rule will be created for each attribute selected.
You can now go through each Rule and edit the Attribute to Modify.[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_single_image image=”9381″ img_size=”full”][/vc_column][/vc_row][vc_row][vc_column][vc_separator border_width=”5″][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]

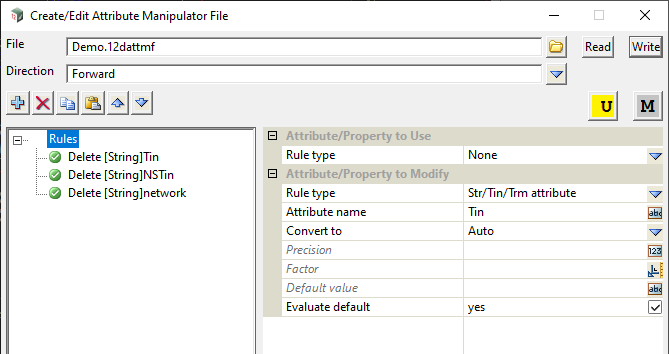

M – Pick attribute to Modify
Allows you to pick all of the attributes to modify. A rule under Attribute to Modify will be created for each attribute. However, the difference here is that each Rule is now set as ‘Delete’.[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]If you were to click the <M> button, and select the same attributes, Rules will be created under Attribute to Modify.
You can now edit each Rule, or leave them if you plan to delete those attributes.[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_single_image image=”9380″ img_size=”full”][/vc_column][/vc_row][vc_row][vc_column][vc_separator border_width=”5″][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]

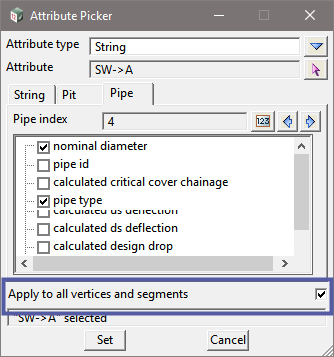

Vertex & Segment Attributes
Selecting the option ‘Apply to all vertices and segments‘ will set the Index: 0
This creates the Rule so that it is applied to all Vertices/Segments.[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_single_image image=”8041″ img_size=”full”][/vc_column][/vc_row]
