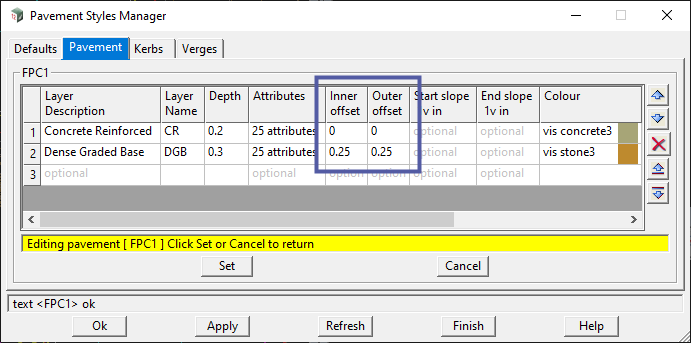

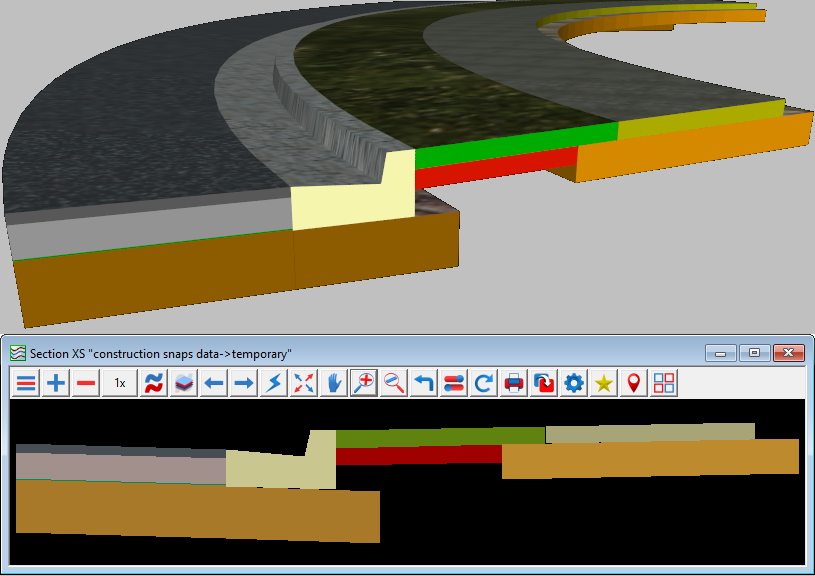

Design => Pavement => Pavements from tins[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_separator border_width=”5″][/vc_column][/vc_row][vc_row][vc_column][vc_single_image image=”12594″ img_size=”full” css=””][/vc_column][/vc_row][vc_row][vc_column][vc_column_text css=””]In the Pavement Styles Manager, you can set Inner/Outer offsets for each layer. When creating pavements in the MTF, the Inner/Outer are both used.[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_single_image image=”12595″ img_size=”full” css=””][/vc_column][/vc_row][vc_row][vc_column][vc_column_text css=””]When using Pavement From Tins, applying the Inner/Outer offset varies;
- Tin – No offsets used <- this is why you aren’t getting any offsets.
- Edge, Kerb – Outer offset only

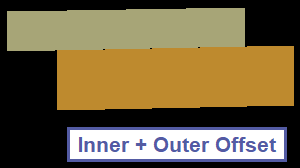

- Edge, Batters – Inner/Outer used
- Edge, Surface – Inner/Outer used

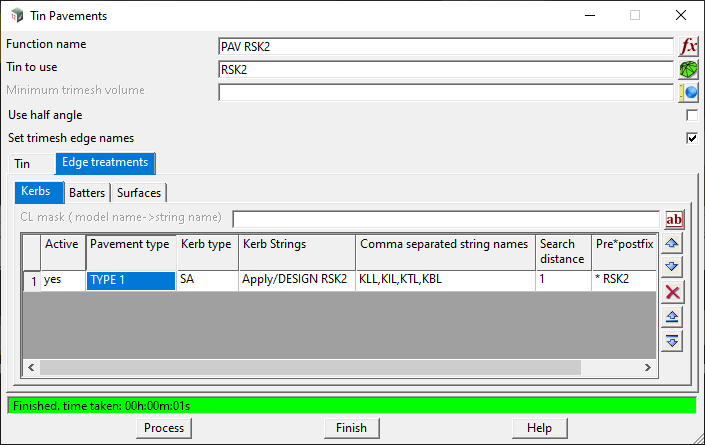

[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_separator border_width=”5″][/vc_column][/vc_row][vc_row][vc_column][vc_column_text css=””]For Edge Treatments, you need to nominate the Model and Strings to use in the correct order. Below is an example for doing a kerb.[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_single_image image=”12601″ img_size=”full” css=””][/vc_column][/vc_row][vc_row][vc_column][vc_separator border_width=”5″][/vc_column][/vc_row]
