The .fld file is 12d models original field file format. The newer format is the .12dfield file. Click here to learn about the differences between the field file formats for 12d Model.
[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_separator border_width=”5″ css=””][/vc_column][/vc_row][vc_row][vc_column][vc_column_text css=””]
To export a .fld file from Leica Captivate using a stylesheet, follow the steps below:
[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_column_text css=””]

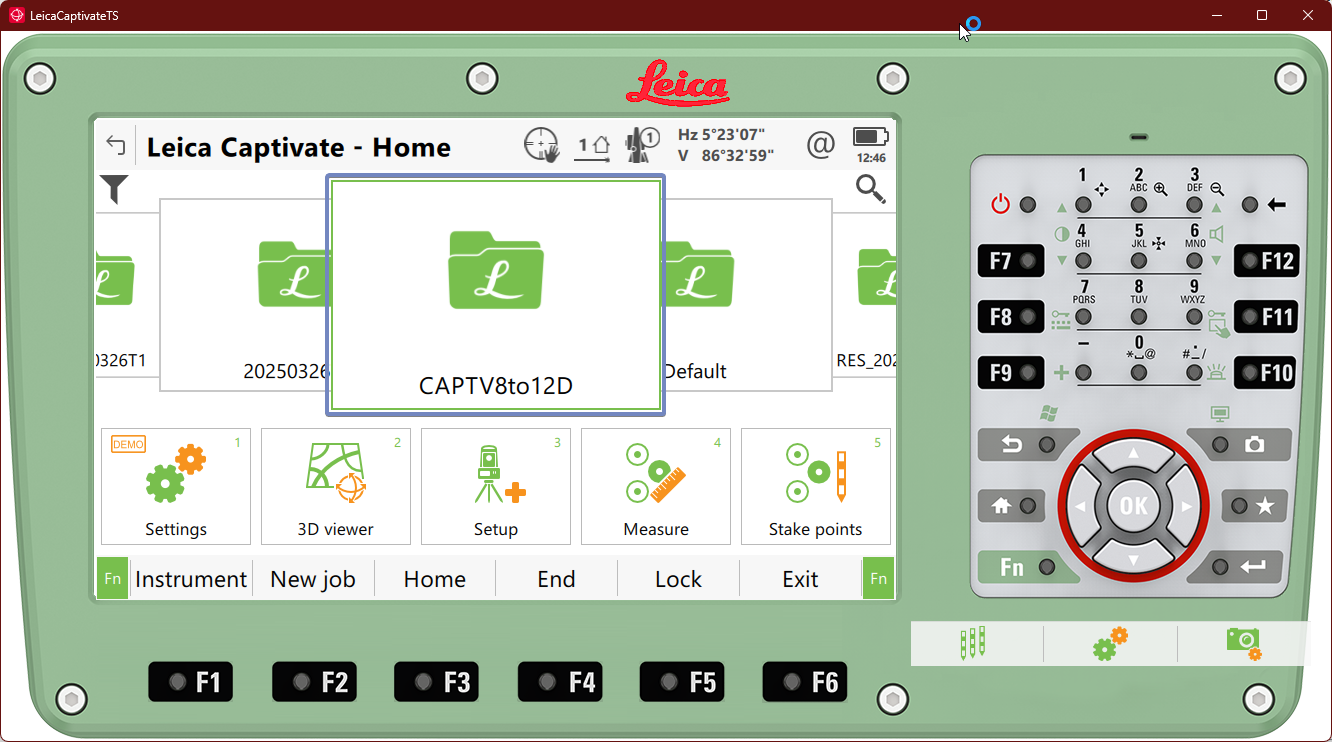

Step 1: Click on the job containing the data you wish to export
[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_single_image image=”12965″ img_size=”full” alignment=”center” css=””][/vc_column][/vc_row][vc_row][vc_column][vc_column_text css=””]

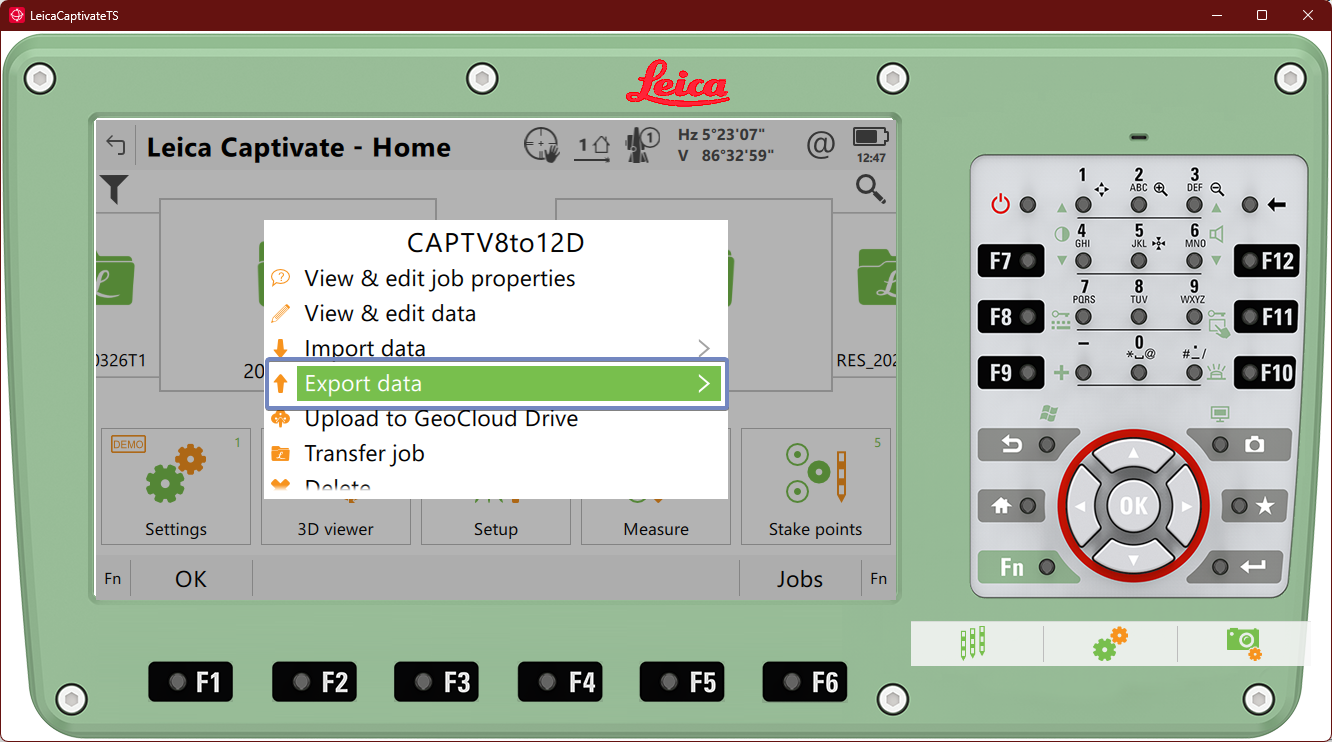

Step 2: Click on Export data

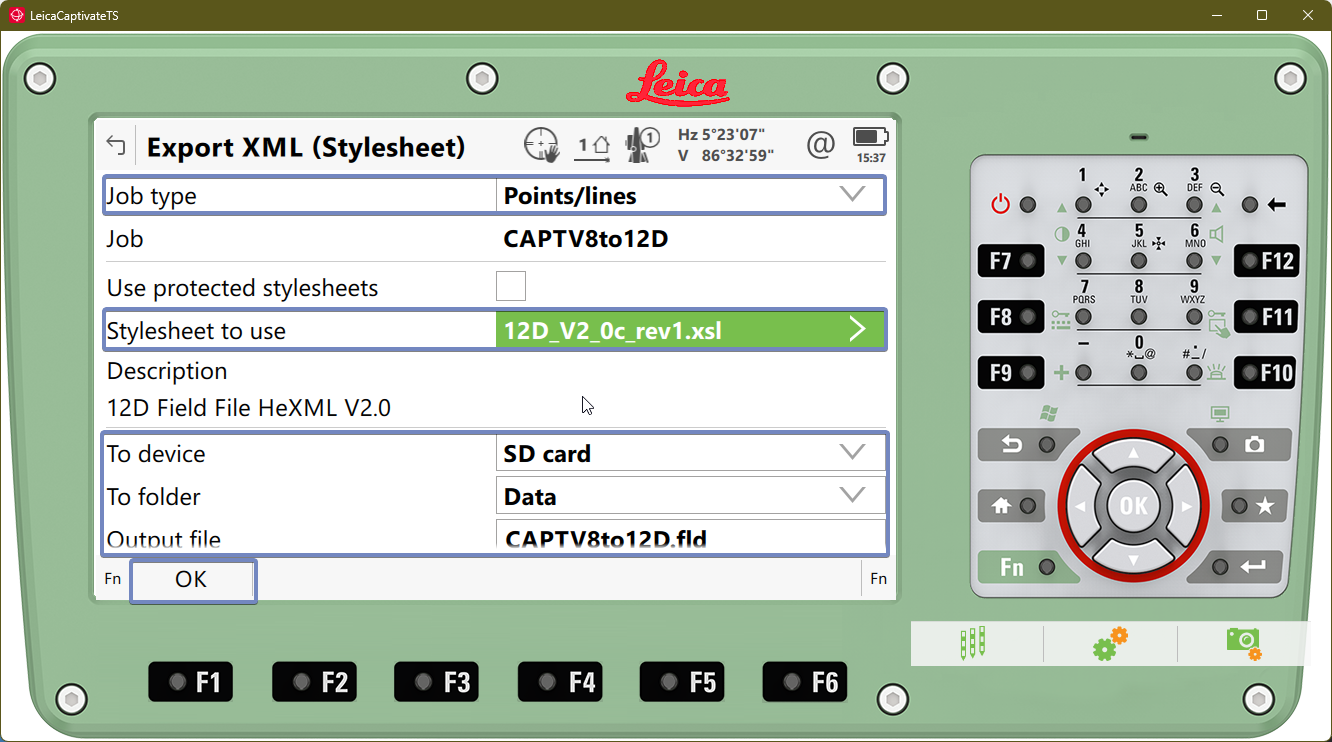

[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_single_image image=”12967″ img_size=”full” alignment=”center” css=””][/vc_column][/vc_row][vc_row][vc_column][vc_column_text css=””]Step 3: Select Stylesheet[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_single_image image=”12999″ img_size=”full” alignment=”center” css=””][/vc_column][/vc_row][vc_row][vc_column][vc_column_text css=””]Step 4: Select your job type, what stylesheet to use, the device to export to, the folder on the chosen device to write the file to and finally the Output file name. Then press “OK”.[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_single_image image=”13000″ img_size=”full” alignment=”center” css=””][/vc_column][/vc_row][vc_row][vc_column][vc_separator border_width=”5″ css=””][/vc_column][/vc_row][vc_row][vc_column][vc_column_text css=””]Your file will now exist in the nominated folder of the selected device.[/vc_column_text][vc_single_image image=”13001″ img_size=”full” alignment=”center” css=””][vc_separator border_width=”5″ css=””][/vc_column][/vc_row][vc_row][vc_column][vc_column_text css=””]
Click here to learn how to reduce this file in 12d model.
[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_separator css=””][/vc_column][/vc_row][vc_row][vc_column][vc_column_text css=””]The information in this post was curated using the 12d Field TPS simulator in 12d Model 12d Model 15.0C1u [DEVELOP] INT Build 03-08-2025 MKIII and the Leica Captivate TS Simulator release version 9.00
If you find that a current release version (released after the version stated above) contains differences, operating issues, potential bugs or require further explanation please contact the EXDS Support team.[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_separator border_width=”5″ css=””][/vc_column][/vc_row]
