This option is used to generate a model of Cross Section Strings through a TIN surface perpendicular to a control string.
The Cross Sections will match the surface of the TIN (DTM) surface and may contain a lot of vertices if the tin surface has small triangles.
This often leads to difficulty when plotting the generated Cross Section strings. Check out the “X-Sections from cuts through string” option. If “Design” strings are present this option it will provide a cleaner result for plotting and should better represent the cross section drawings if they have been provided.
Please watch the short video below for more information on this 12d option.[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_video link=”https://vimeo.com/1102397918″ css=””][/vc_column][/vc_row][vc_row][vc_column][vc_separator border_width=”5″][/vc_column][/vc_row][vc_row][vc_column][vc_column_text css=””]To view the “X-Sections Along a String” Panel,

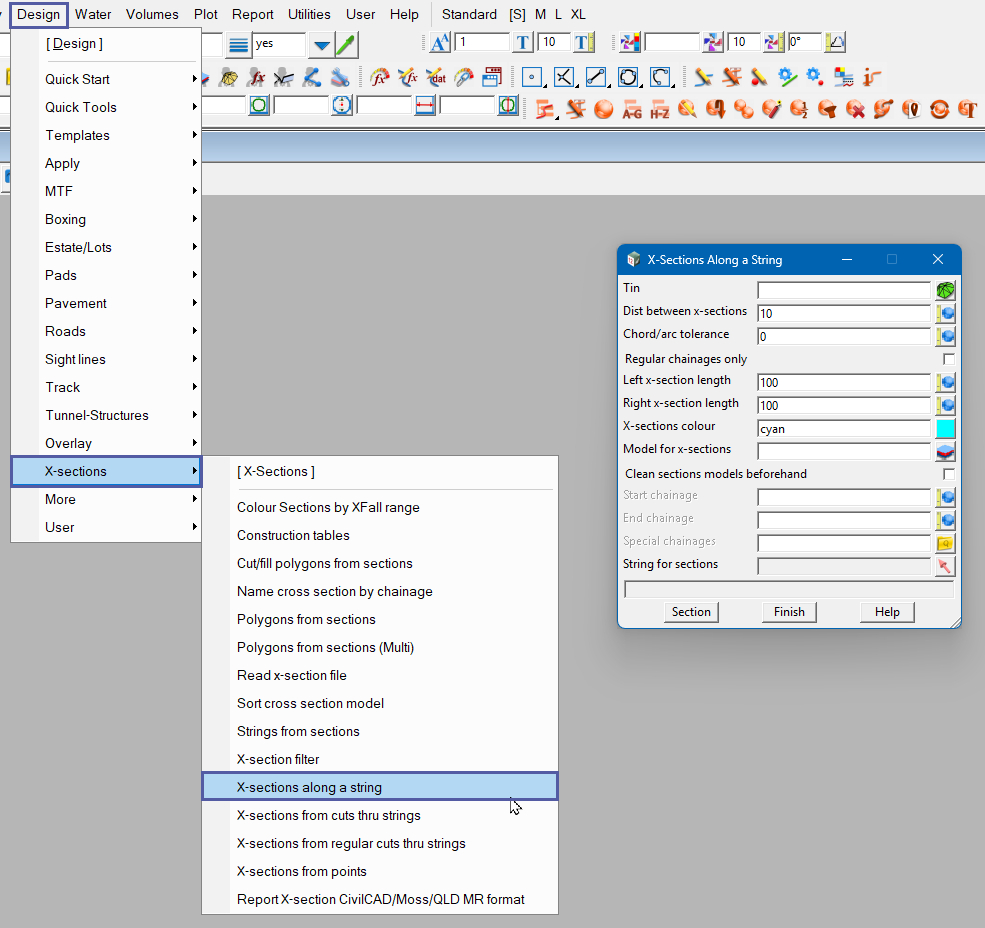

Use: Design => X-Sections => X-Sections along a String[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_single_image image=”12904″ img_size=”full” css=””][/vc_column][/vc_row][vc_row][vc_column][vc_separator border_width=”5″][/vc_column][/vc_row]
